Removing The Lower Rack
(for SatinGlide rails)
1. To gain access to the locking clips on the lower rack, pull
the lower rack forward all the way out of the tub unl rack
stops and is resng on the door.

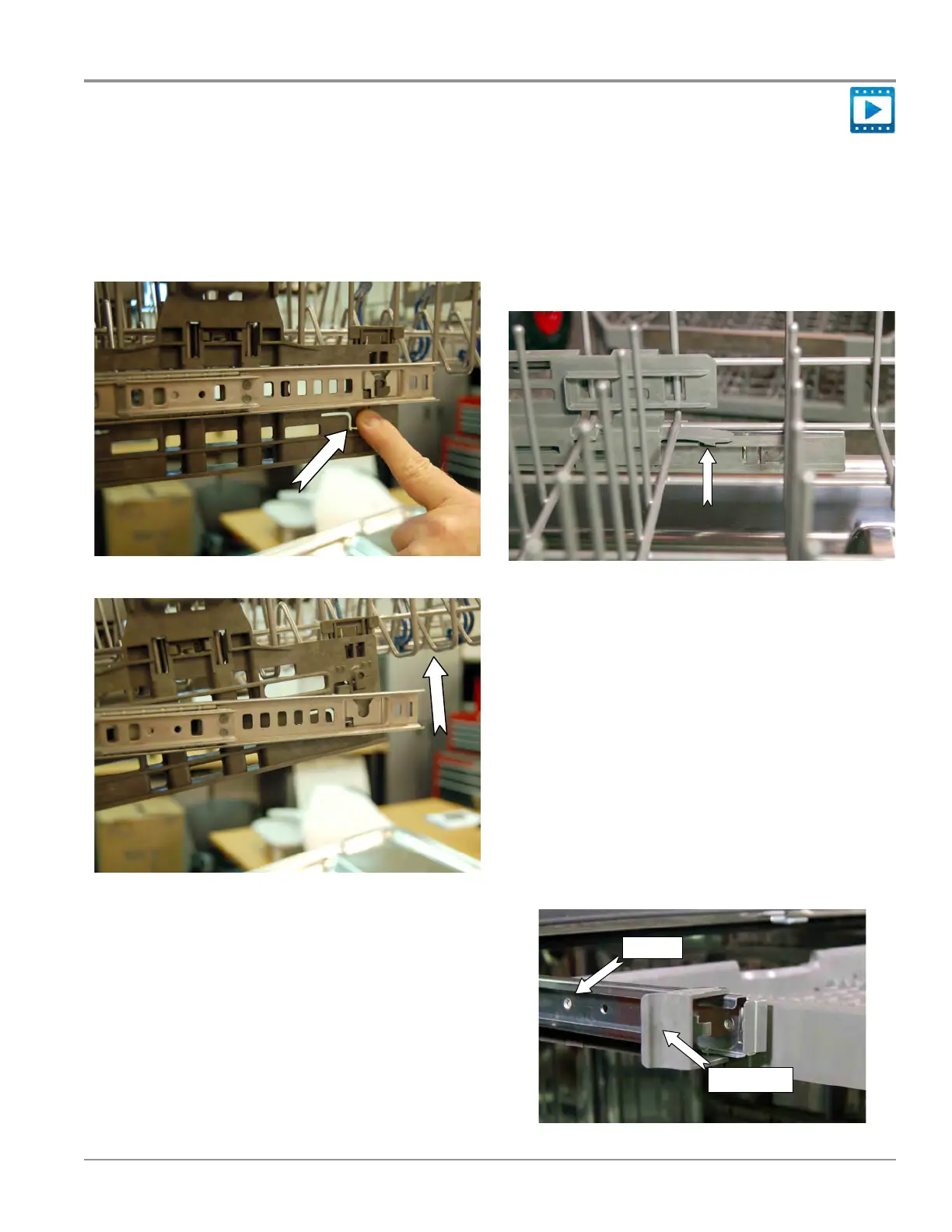

2. On one side, gently li up on the Rear Carriage Support
locking clip unl it disengages the track assembly, (see
Figure 3).
Figure 3
3. Then repeat this step on the other side to completely
disengage lower rack. Pull rack forward to remove from
track assembly.
Removing the Culinary Tool Rack
(3rd level rack - available on some models)
1. To access track stops, pull the rack forward unl it stops
and clicks into place.
2. To open track stops, ip the track stop to the outside of
the track, (see Figure 4).
3. Aer opening both track stops, slide front wheels up and
out of the slot in track. Connue to pull rack forward in
track and slide the back wheels up and out of the track.
4. Close track stops.
5. Slide rack tracks back into dishwasher.
Figure 4
Removing The Upper Rack
(for SatinGlide rails)
1. To gain access to the removable tabs on the tracks/rails,
pull the upper rack forward about halfway out of the tub.
2. On one side, press the tab on the track in and pull up the
front end of the rack out of the track. See Figures 1 & 2.
Figure 1
Figure 2
3. Then repeat this step on the other side to completely
remove the front end of the rack.
4. Then remove the back end of the rack, by pulling the back
end out with a slightly forward, and then upward moon.
Removing the Racks
Track Stop
Track
