COMPONENT ACCESS
KitchenAid 2015 Microltration Dishwashers
n
4-15

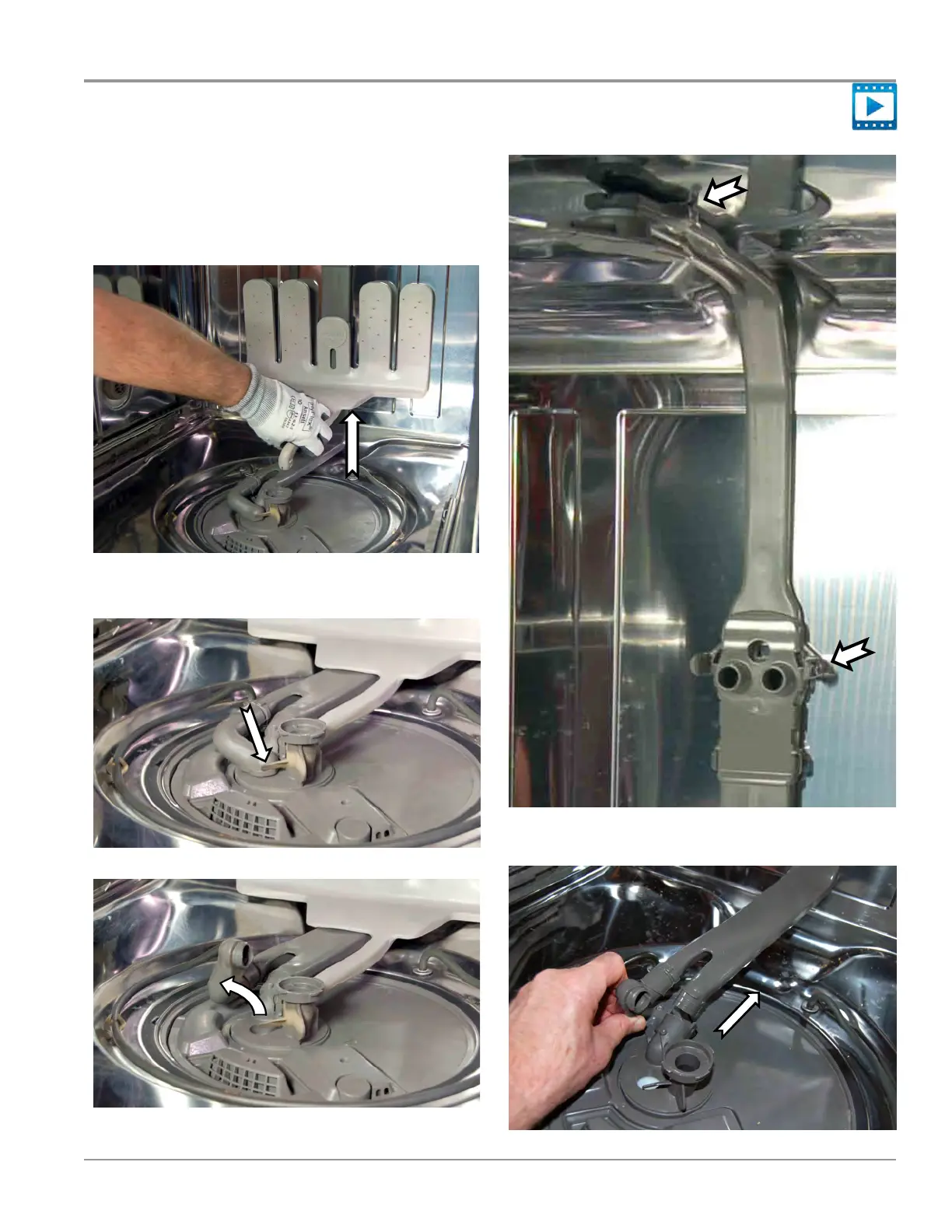

4. Unsnap feed tube from upper and lower clips (see gure 4).
Figure 4
5. Remove feed tubes from sump assembly, (see Figure 5).
Figure 5
Remove ProScrub® Manifold:
(available on some models)
1. Unsnap manifold from distribuon tube.
2. Disconnect the manifold tube from the sump by liing up,
(see Figure 1).
Figure 1
3. Gently pull back on locking lever and swing up feed tube
assembly (see Figures 2 and 3).
Figure 2
Figure 3
Removing ProScrub
®
Manifold and Feed Tube
