COMPONENT ACCESS

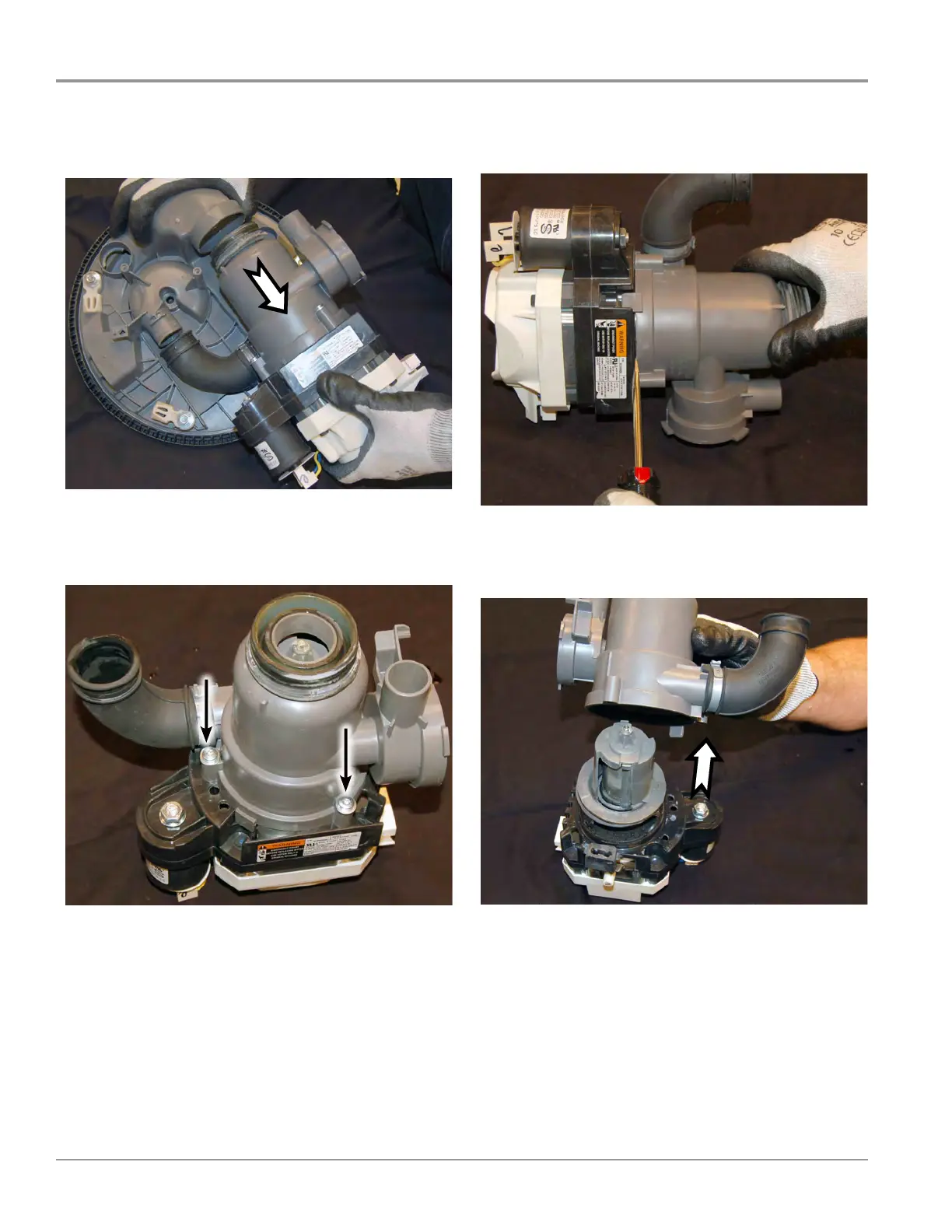

6. Remove wash motor and lter assembly from sump (see
Figure 5).
Figure 5
7. Remove Pump Housing - Remove the three (3) screws
securing the pump housing to the motor assembly. See
Figure 6 (only 2 of 3 screws are shown).
Figure 6
Removing Wash Motor & Rotating Inlet Filter
8. Use a screwdriver to separate the pump housing from the
motor assembly (see Figure 7).
Figure 7
9. Remove pump housing from motor assembly (see Figure
8).
Figure 8
NOTE: The pump housing is keyed to the motor assembly for
ease of reassembly.
