— 11 —

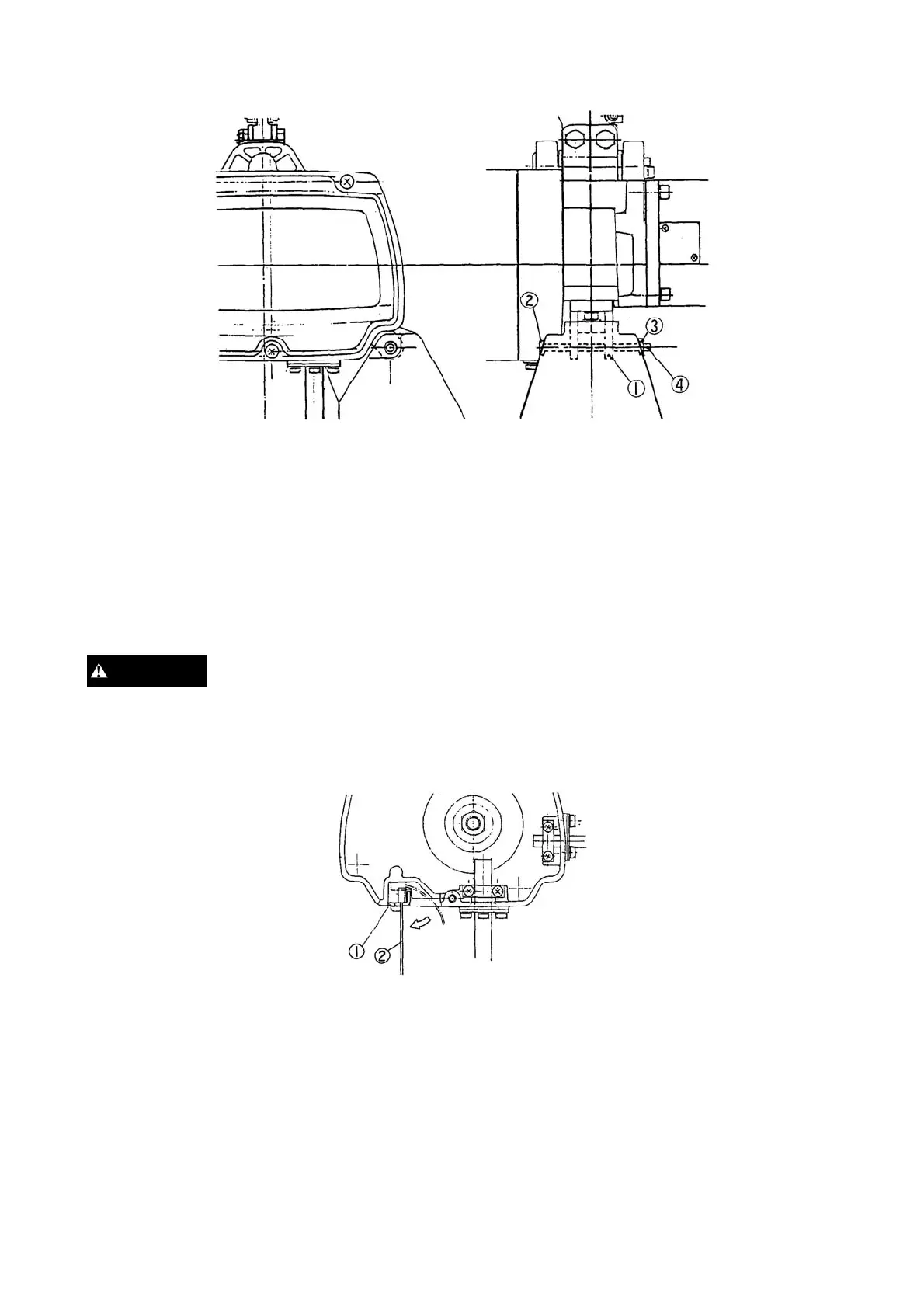

Fitting Procedure:
*Attach the chain container to the chain guide ① with socket bolt ② and U-nut ③．
*Attach the split pin ④ to prevent the U-nut ③ from dropping. Bend pin ends 90° or more.
(3) ATTACHING PUSH-BUTTON AND CURLED CORDS
a. Single- and dual-speed types
While the push-button cord is being connected to the hoist body, the strain relief wire may not be connected
yet. After the push button cord connecting, be sure to attach the end of the strain relief wire to the hoist body.
: Short-circuit and electric shock may result if the push-button cord is pulled
when the strain relief wire is not connected to the hoist body.
ALWAYS make sure that the strain relief wire is properly attached to the hoist
body as depicted and described in the next.
WARNING
