Fitting procedure:

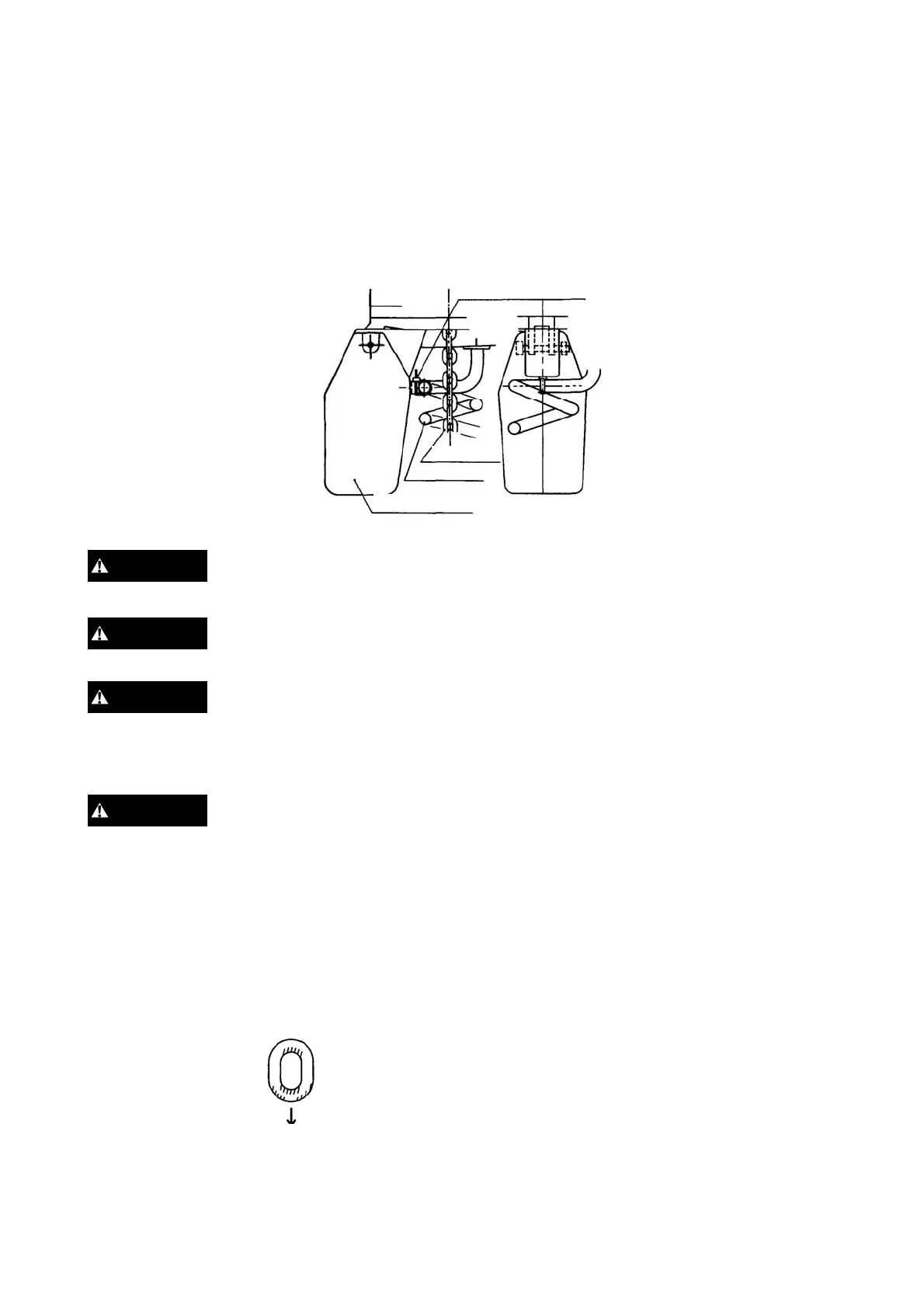

*As illustrated, hook the strain relief wire ② to the cable support L ① of the hoist body.
b. Dual-speed cylinder type
While the curled cord is being connected to the hoist body, it may not be fixed to the chain container yet.
As illustrated, attach it to the chain container so that the clamp of the fastening belt faces the way it does
in the figure and so that the load chain comes to the center of the curled cord at that time.
: To avoid damage on the curled cord, fix the curled cord to the chain container
with the fixing band.
: To avoid wearing between load chain and chain guide, straighten up load
chain before fitting the curled cord to the chain container.
: To avoid damaging the curled cord, attach the chain container so that the
fastening belt clamp faces up.
(4) LUBRICATING THE LOAD CHAIN
Chain lubrication is a critical factor in the service life of a load chain. Apply enough machine or gear oil
regularly.
Lubrication Procedures
･ Vertically suspend the chain under no load conditions.
･ Remove dust or water drops from the chain.
･ Apply lubricant around the sections where the chain links come into contact with each other and the
load sheave or idle sheave as shown in the following figures.
Fastening belt clamp
WARNING
WARNING
Load-applying
direction
・After the chain lubrication is done, lift and lower withou
any load to spread the lubricant thoroughly.
Please consult with KITO Corporation if any of lubricants
are not allowed at your site.
Load chain
Curled cord
Chain container
WARNING
WARNING
