— 44 —

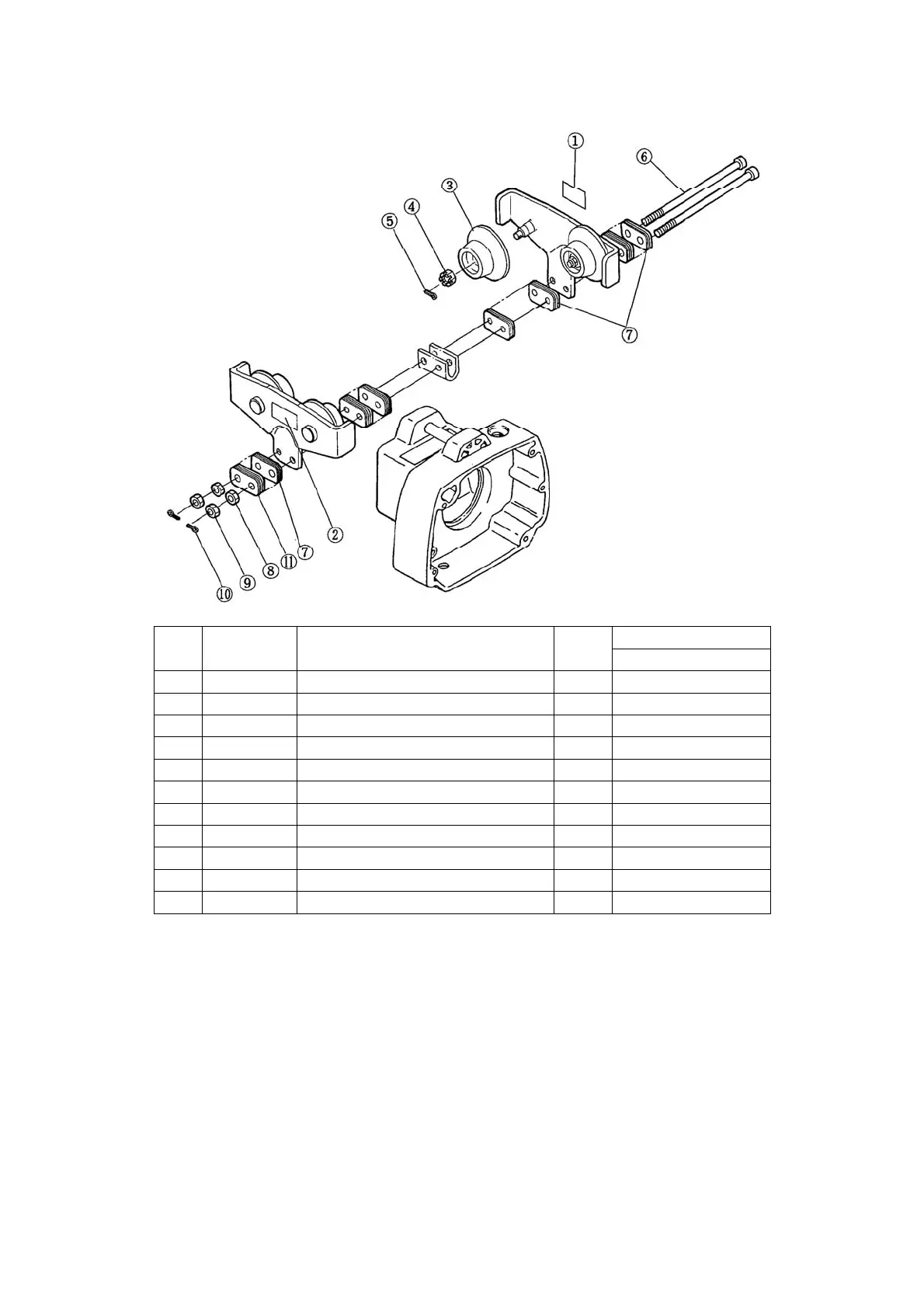

Exploded views and part names of the trolley are shown below.
Fig.
No.
Part No. Part Name
Nos.
Per
Trolley
Capacity
250kg
1 T1H 801 Name plate C 1
2 T1H 800 Name plate B 1
3 T1H5102 Track wheel assembly 4
4 T1H 152 Slotted nut 4
5 T1H 153 Split pin 4
6 T1H 115 Socket bolt 2
7 T1H 116 Adjusting spacer 34
8 T1H 157 Nut 2
9 T1H 155 U nut 2
10 T1H 156 Split pin 2
11 T1H117 Adjusting spacer B 2
