PARTS LIST (480kg)

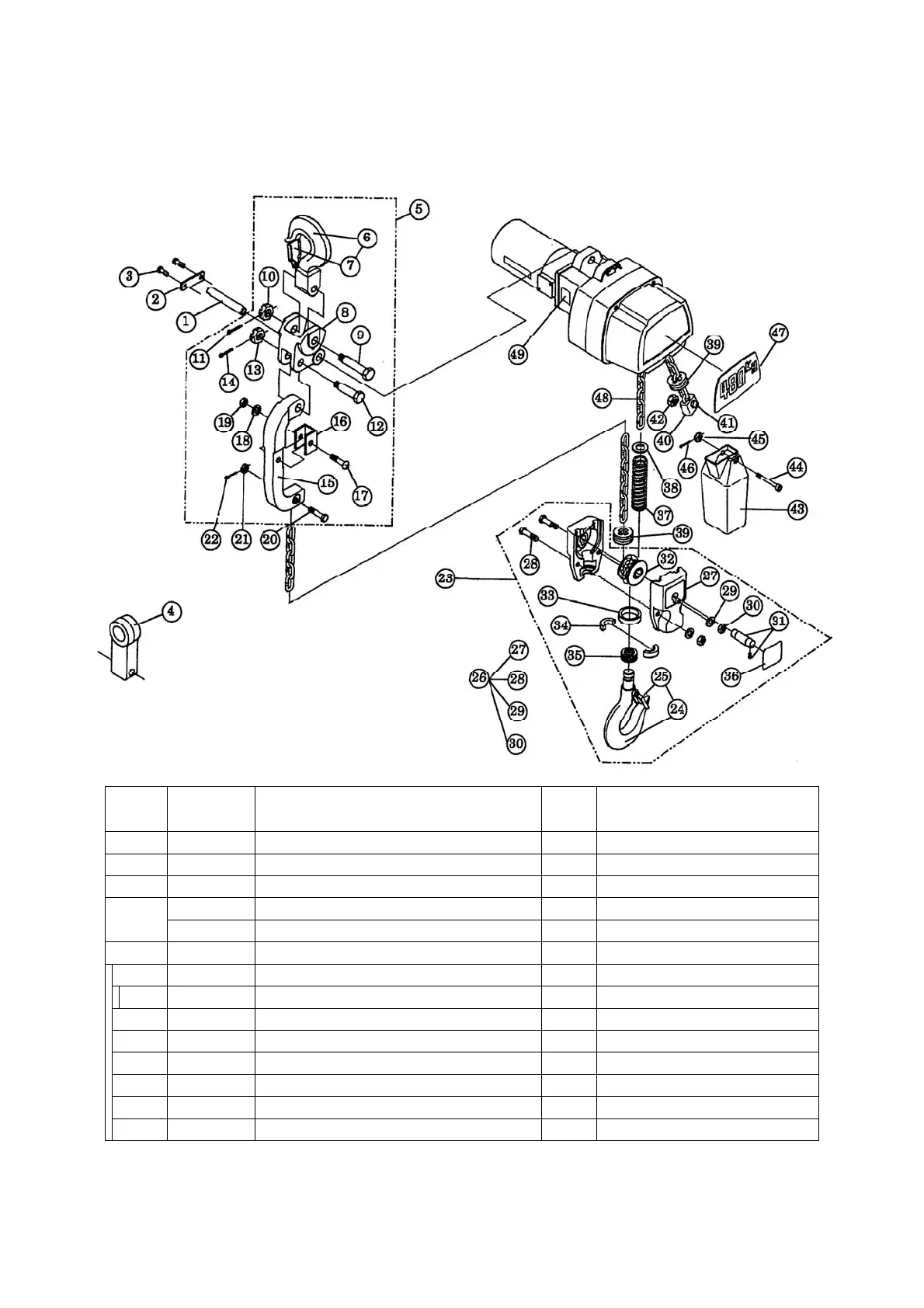

Exploded views and part names of the electric chain hoist are given in the following.
Fig. No. Part No.
Part Name
Nos.
Per
Hoist
Supplement
1 E2D-117 Top pin E 1
2 E2D-118 Shaft stopper 1
3 E3D-155 Socket bolt with spring washer 2
4
T7PB-004 Suspender PB 1 PT Connect
T7GB-004 Suspender GB 1 GT Connect
5 E3D-1470 Connection yoke complete set 1
6 E3D-460 Top hook assembly 1
7 E3D-461 Hook latch assembly 1
8 E3D-470 Connection yoke 1
9 E3D-471 Yoke bolt 1
10 E3D-472 Slotted nut 1
11 E3D-473 Split pin 1
12 E3D-581 Connection bolt 1
13 E3D-582 Slotted nut 1
To Next Page
