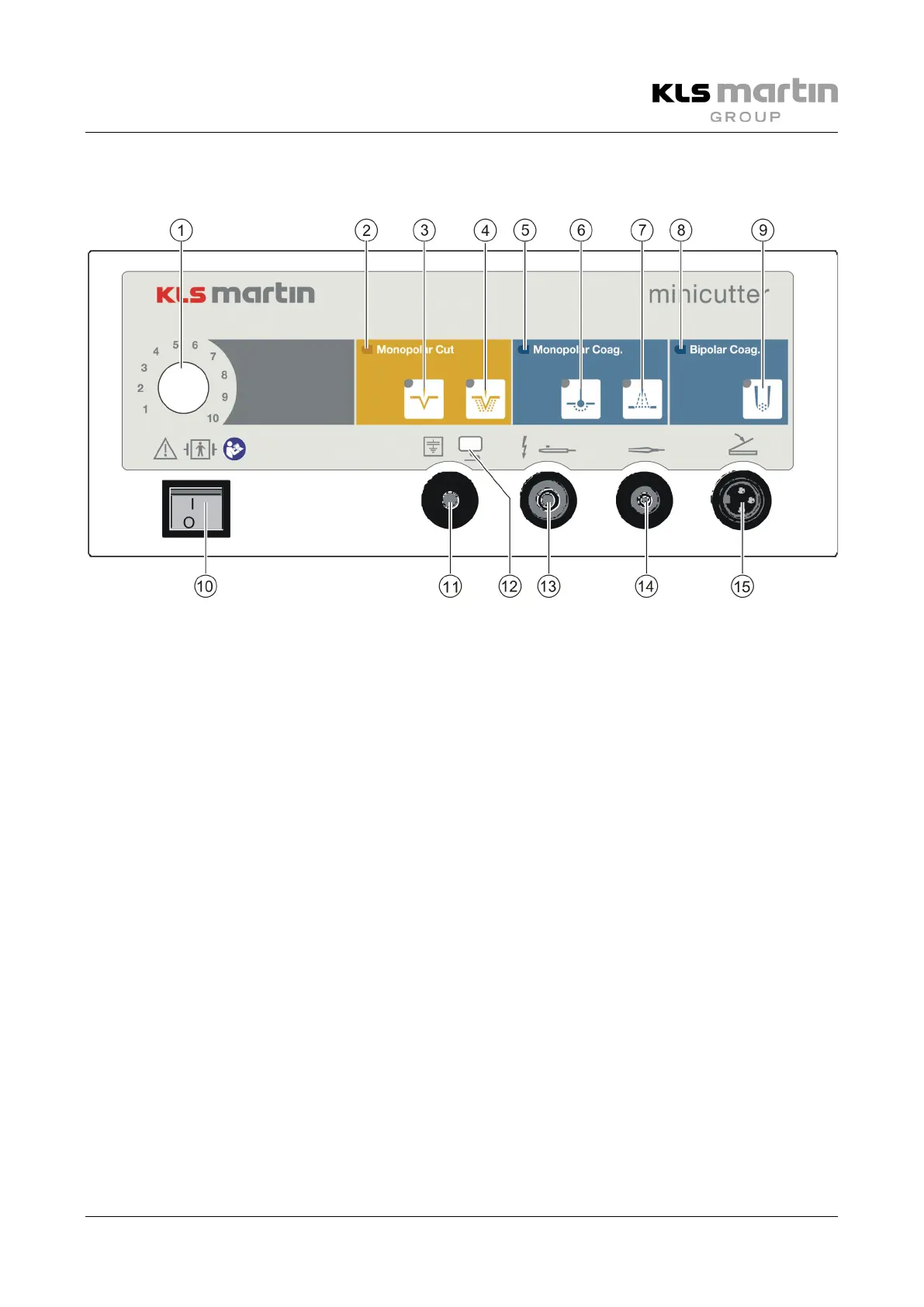

4.2 Functions of the Control Elements, Connections and Displays
1
Rotary knob for power setting
2
Activation LED for monopolar cutting
3
Selection button for monopolar cutting 1
4
Selection button for monopolar cutting 2
5
Activation LED for monopolar coagulation
6
Selection button for contact coagulation
7
Selection button for spray coagulation
8
Activation LED for bipolar coagulation
9
Selection button for bipolar coagulation
10
Mains switch
11
Connection for neutral electrode
12
Indicator LED for neutral electrode alarm
13
Connection for monopolar handle
14
Connection for bipolar instruments
15
Connection socket for foot switch
