Single-Zone Proportional Heating and
Cooling Applications
This section gives sample applications for using
the CTE-5202 in single zone proportional heating
(baseboard heaters) and cooling (chilled beams) with
valves or SCR control.
NOTE: For chilled beam applications, separate
control of humidity is required to prevent
condensation.
~

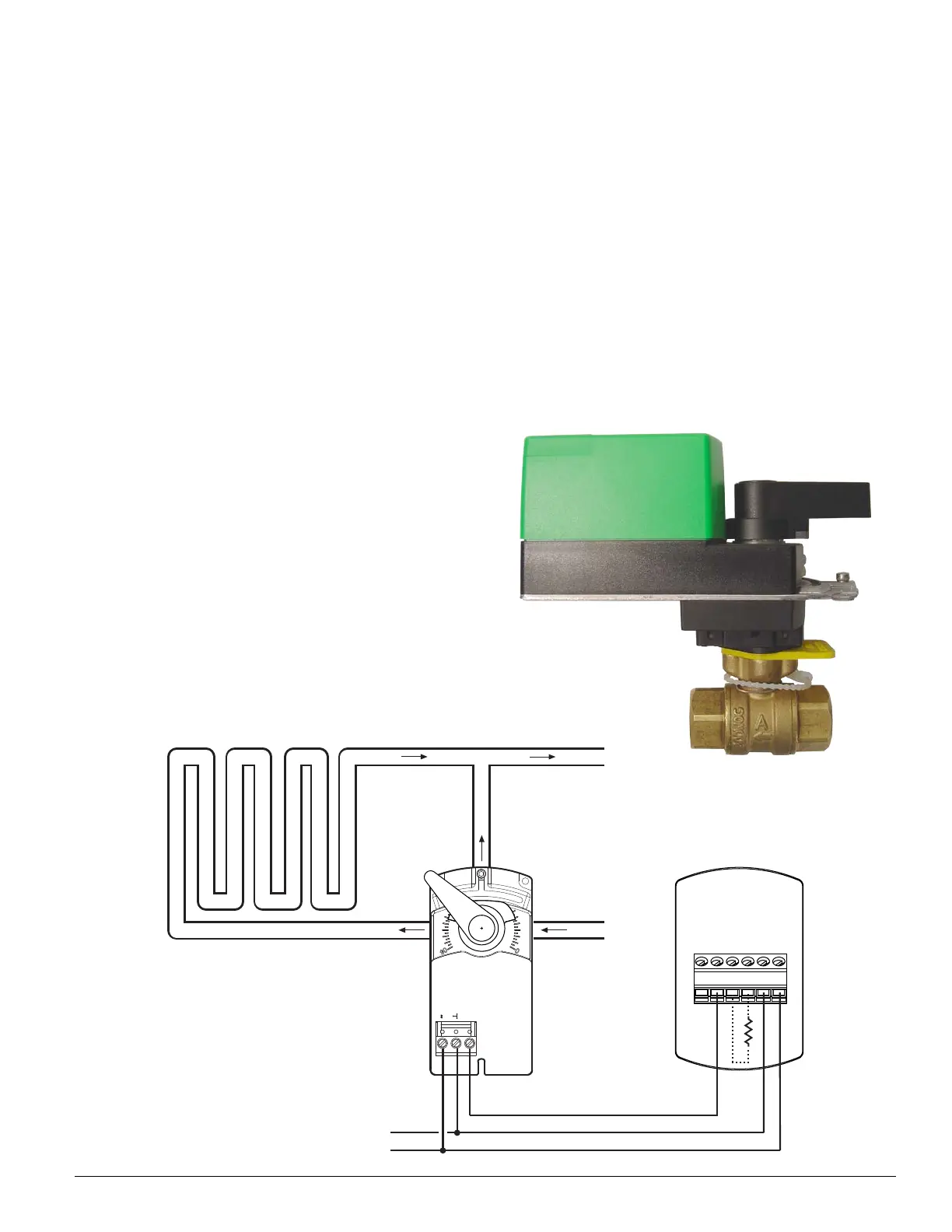

T T
AI1 AO1 AO2
CTE-5202
Thermostat
~
–
ReturnFrom Coil
To Coil Supply
24 VAC
Common
Input
Valve
