Pressure Independent VAV Applications with CEP/CSP-4000 Series 52 CTE-5202 Applications Guide, AN0912A Rev. D
Dual Duct Heating and Cooling VAV

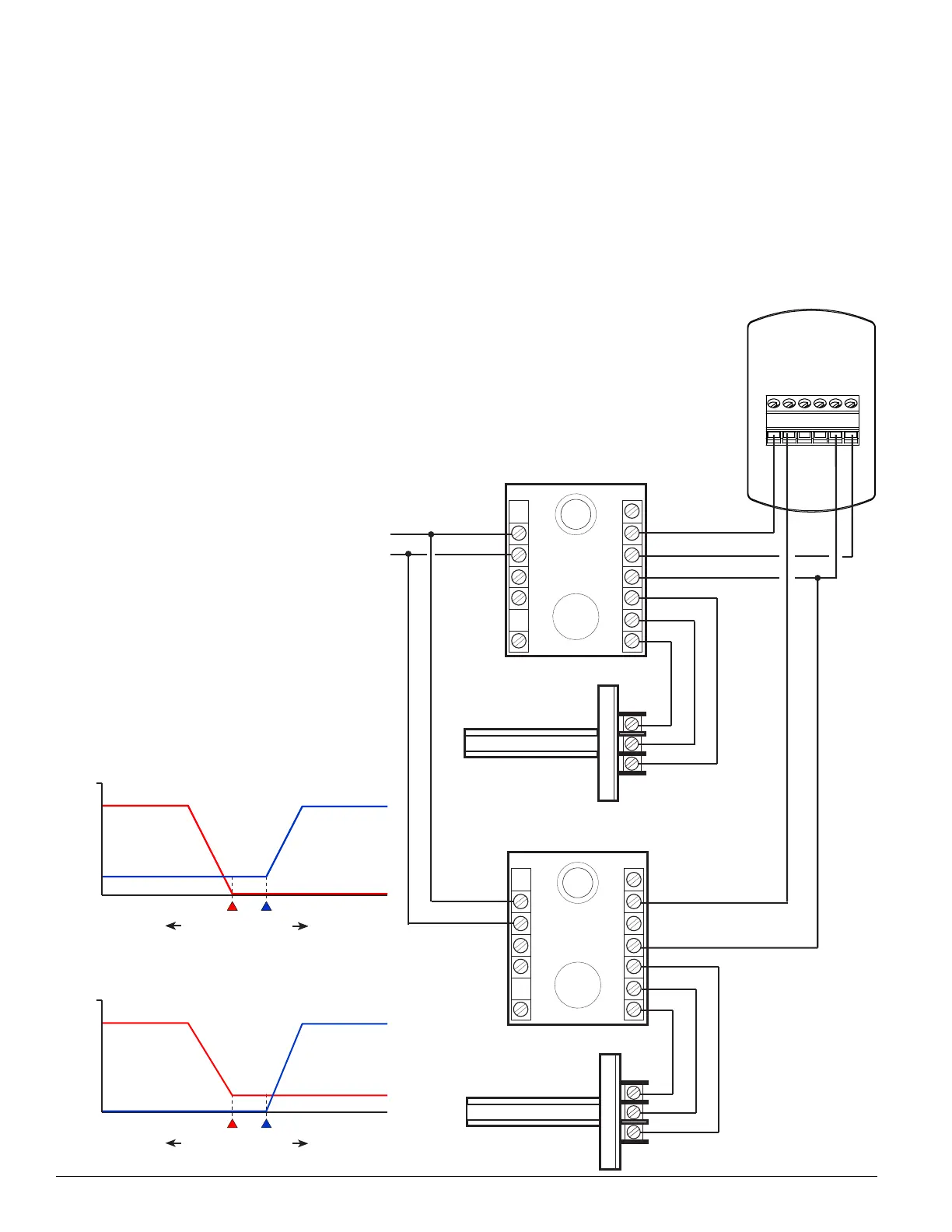

Dual duct applications connect two CEP-4000 series
controllers, mounted separately on the hot and cold
air-duct dampers, with each controller using its own
ow sensor.
The hot deck controller receives its requested ow
signal from AO2 on the CTE-5202, while the cold
deck uses the AO1 signal. Both controllers can be
set independently for minimum and maximum ow
seings.
Sequence 3 should be selected from the CTE-5202
SYSTEM menu. See Change Conguration on page 6.
(See also the (Dual Duct) Heating and Cooling VAV
section with a CTE-1103 in the CEP-4000 Series
Applications Guide.)
~
T T
AI1
AO1 AO2
CTE-5202
Thermostat
24 VAC @ 20 VA
~
–
(Phase)
(Neutral)
1
2
3
7
6
5
4
3
2
1
8
9
10
11
12
13
14
CEP-4xxx
Controller-Actuator
SSE-1001/1002
Flow Sensor
1
2
3
7
6
5
4
3
2
1
8
9
10
11
12
13
14
SSE-1001/1002
Flow Sensor
CEP-4xxx
Controller-Actuator
(Hot Deck)
(Cold Deck)
Select Sequence 3
Cooling Max.
Cooling
Min.
0 fpm
(Colder Room Temperature Warmer)
3000
fpm
Air
Flow
Min.–3000 fpm
0–3000
fpm
Heating Max.
Min.–3000 fpm
Cooling SetpointHeating Setpoint
Minimum Air from Cooling
Cooling Max.
Cooling
Min.
0 fpm
(Colder Room Temperature Warmer)
3000
fpm
Air
Flow
Min.–3000 fpm
0–3000
fpm
Heating Max.
Min.–3000 fpm
Cooling SetpointHeating Setpoint
Minimum Air from Cooling
Cooling Max.
Cooling
Min.
0 fpm
(Colder Room Temperature Warmer)
3000
fpm
Air
Flow
Min.–3000 fpm
0–3000
fpm
Heating Max.
Min.–3000 fpm
Cooling SetpointHeating Setpoint
Minimum Air from Heating
