Pressure Independent VAV Applications with CEP/CSP-4000 Series 49 CTE-5202 Applications Guide, AN0912A Rev. D
Cooling with Proportional Hot Water Reheat
See Cooling with 3-Stage Reheat on page 47. This
application operates similarly except for using a hot
water valve instead of electric heating elements for
reheat.
AO1 controls airow and AO2 controls the valve.
When there is a call for heat, the thermostat
modulates the hot water valve.
The CTE-5202 here replaces
a CTE-1004 (DA cooling and
RA heating) and is used in
conjunction with an REE-
4006 time proportioning relay
module and a (NC) VEP-
12/22/34 series hot water valve.
The REE-4006 relay is designed for
time proportioning control of thermic
electrical hot water valves.
NOTE: The VEP-12/22/34 series valves
and REE-4006 relay module
have been discontinued.
Replacement actuators (MEP-
3001s) for those
valves are still
available (as of Oct.
2012). The REE-4006
can be replaced
by an REE-4106 or
REE-5106, which
have built-in power
supplies that could
be used to power
the CTE-5202
if desired.
See also use
of a VEB-
43/46 valve in
Cooling with Hot Water Reheat on page 40.

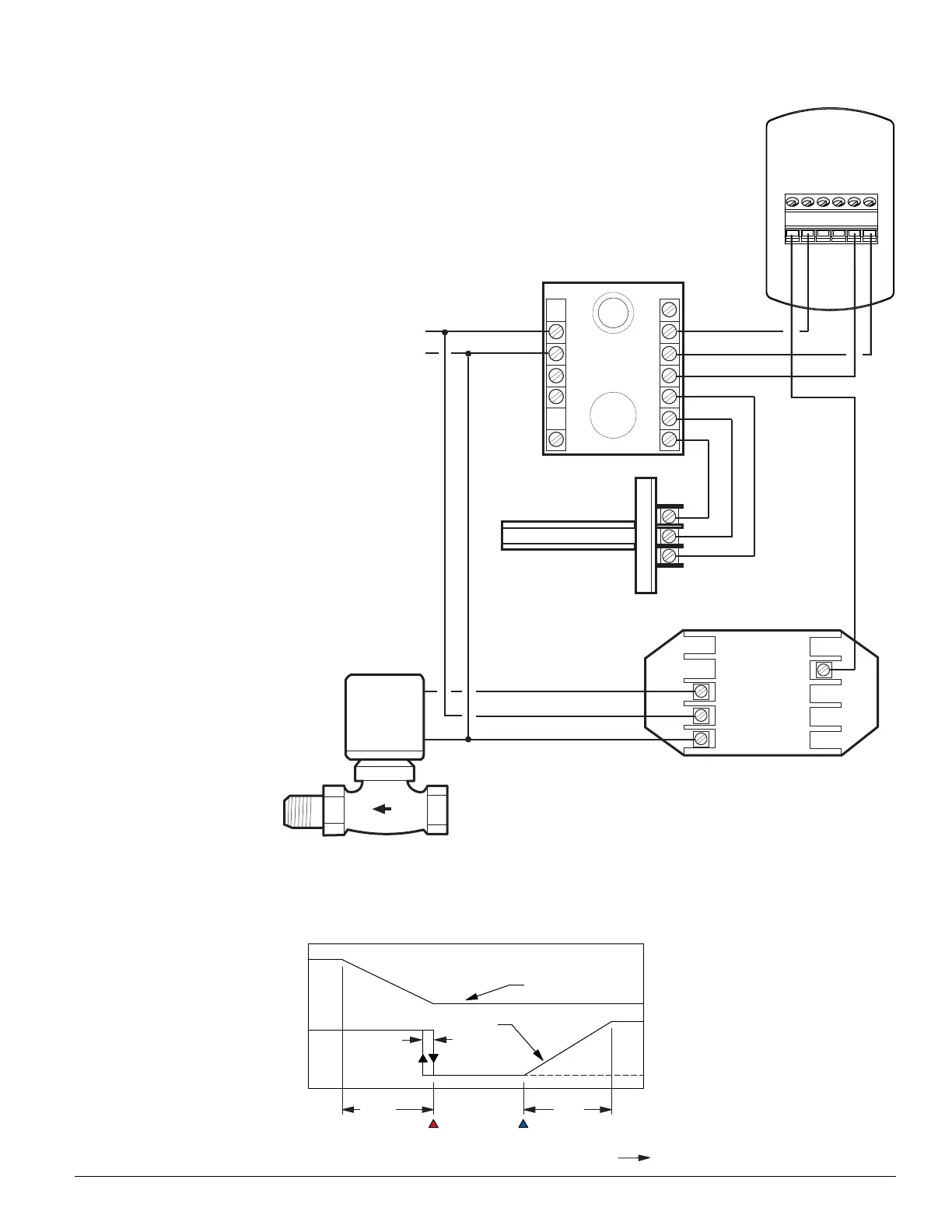

2° F
Of Loop
10%
2° F
AO1 MAX
AUX
AO1 MIN
COLD AIR SEQUENCE
0 Volts
12 Volts
Temp. Increasing
Cooling
Setpoint
Heating
Setpoint
Hot Water Reheat
AO2 (RA)
AO1 (DA)
~
T T
AI1
AO1 AO2
CTE-5202
Thermostat
24 VAC @ 12 VA
~
–
(Phase)
(Neutral)
1
2
3
7
6
5
4
3
2
1
8
9
10
11
12
13
14
CEP-4xxx
Controller-Actuator
SSE-1001/1002
Flow Sensor
REE-4006/4106/5106
Relay Module
LOAD
9
C
T
(NC) VEP-12/22/34
Series Valve and
MEP-3000 Series
Thermic Actuator
~
–
Select
Sequence 2
(See also the REE-4106 Installation Guide, REE-
5106 Installation Guide, and the Cooling with
Porportional Reheat section with a CTE-1004 in the
CEP-4000 Series Applications Guide.)
