Pressure Independent VAV Applications with CEP/CSP-4000 Series 50 CTE-5202 Applications Guide, AN0912A Rev. D
~
T T
AI1
AO1 AO2
CTE-5202
Thermostat
24 VAC @ 40 VA
~
–
(Phase)
(Neutral)
1
2
3
7
6
5
4
3
2
1
8
9
10
11
12
13
14
CEP-4xxx
Controller-Actuator
SSE-1001/1002
Flow Sensor
REE-4002/5002 Relay Module
24 VAC Contactors
(10 VA Max. per Stage)
Heat Stage 1
Fan
~
–
24 VAC
Fan 1 2
Stages
X
T
Load
Heat Stage 2

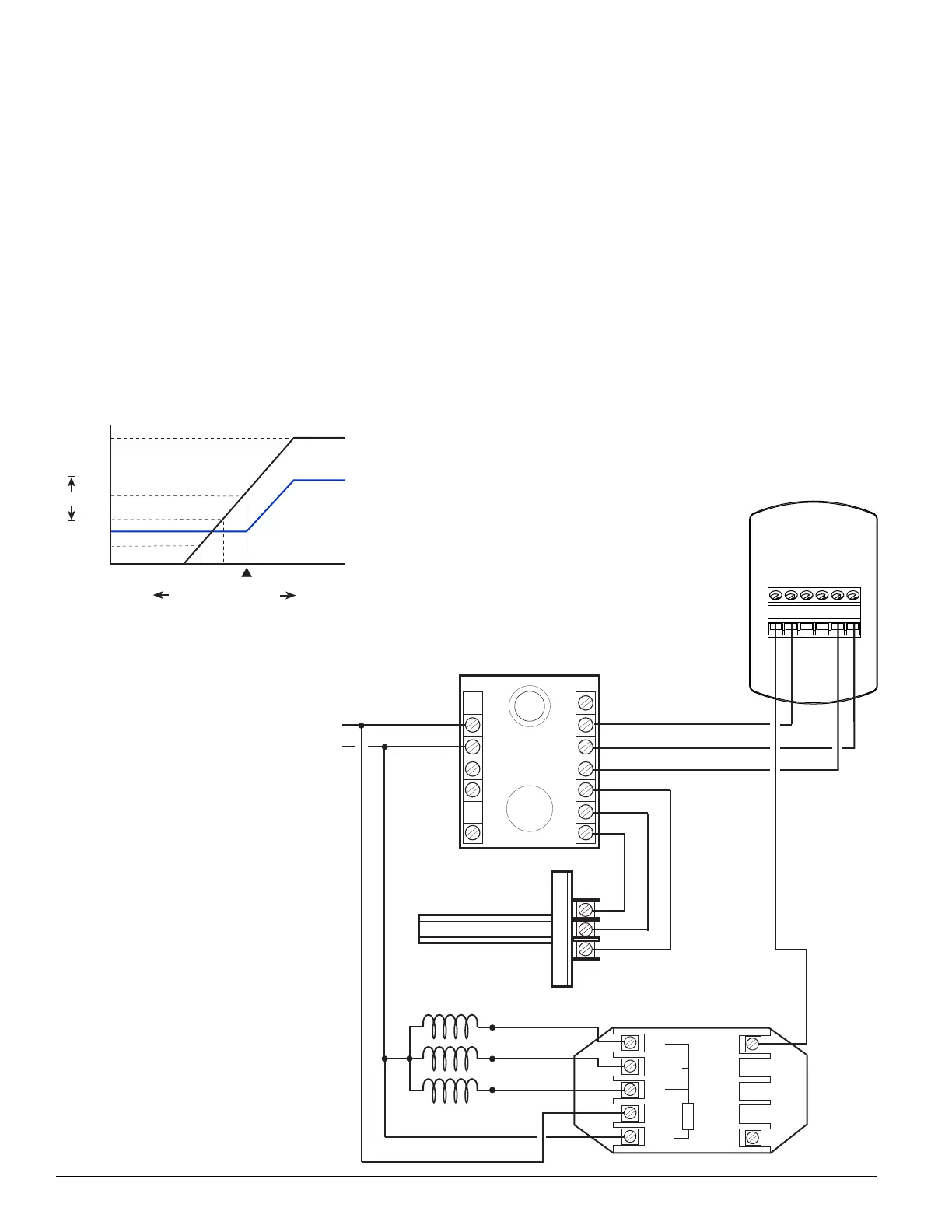

Fan Induction with 2-Stage Electric Heat
In this fan induction application, the CTE-5202
thermostat is used with a REE-4002/5002 relay
module, a fan, and two coils (for two stages of heat).
The REE-4002/5002 was designed primarily for use
with VAV fan-powered induction boxes.
If the temperature drops below setpoint, the REE-
4002/5002 senses the decrease in voltage on AO2 and
starts the fan. As the temperature continues to drop,
the rst stage of reheat begins, and the second stage
of reheat follows if the thermostat is still not satis-
ed. The process reverses as the room temperature
begins to rise.
Sequence 1 should be selected from the CTE-5202
SYSTEM menu. See Change Conguration on page 6.
(See also the Fan Box with Reheat section with a
CTE-1101 in the CEP-4000 Series Applications
Guide.)
NOTE: The REE-4002/5002 provides the fan an
adjustable start point. The “X” Terminal is
used for measuring fan trip voltage. See the
REE-5002 Installation Guide or the REE-
4002 Installation Guide for details.
NOTE: Triac outputs on the REE-4002/5002 are for
24 VAC loads only. The phase side of the
transformer connects to the “common” side
of the load (contactors).
Select Sequence 1
Fan
(Colder Room Temperature Warmer)
AO2 Signal
Cooling
Max.
Cooling Min.
AO1 Signal
Setpoint
6 V
1 V
3V
#2 #1
12 V
8 V
