KMC Controls CTE-5202 Application Guide

Single-Zone Heating and Cooling Applications 13 CTE-5202 Applications Guide, AN0912A Rev. D

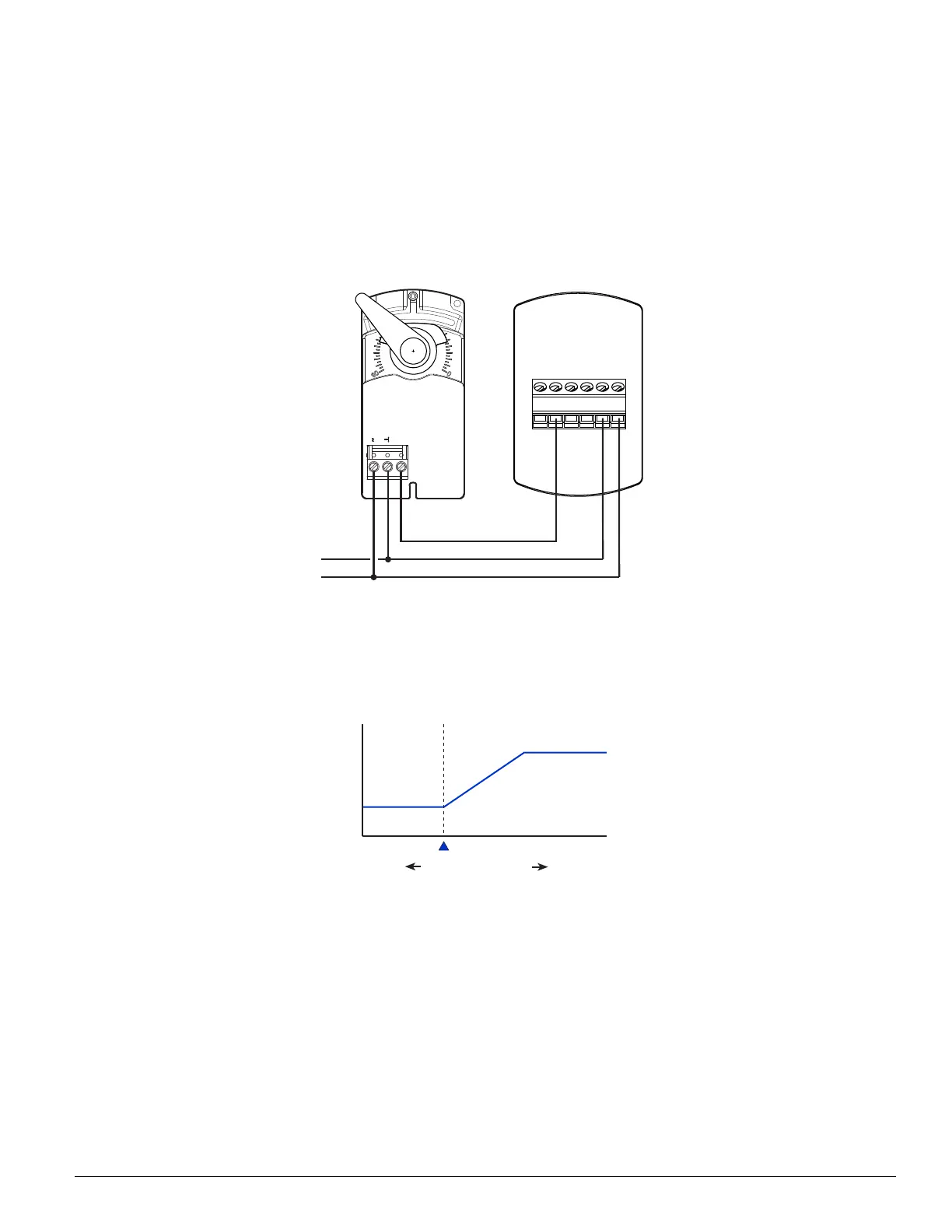

Chilled Beam Cooling
~
T T
AI1
AO1 AO2
CTE-5202
Thermostat
24 VAC
~
–
(Phase)
(Neutral)
24 VAC
Common
Input
Valve
Select Sequence 1
This application controls cooling in a chilled beam or
equivalent installation.
This works for NC 2–10 and 0–10 VDC valves or NO
10–2 and 10–0 VDC valves.
Select Sequence 1 (from the CTE-5202 SYSTEM
menu). See Change Conguration on page 6.
Cooling Max.
Cooling Min.
Setpoint
(Colder Room Temperature Warmer)
