Pressure Independent VAV Applications with CSP-4702 31 CTE-5202 Applications Guide, AN0912A Rev. D
~
T T
AI1
AO1 AO2
CTE-5202
Thermostat
~
–
(Phase)
(Neutral)
(To Flow Sensor) (To Flow Sensor)
Hot Deck
CSP-4702
Controller-Actuator
Cold Deck
CSP-4702
Controller-Actuator
24 VAC @ 10 VA

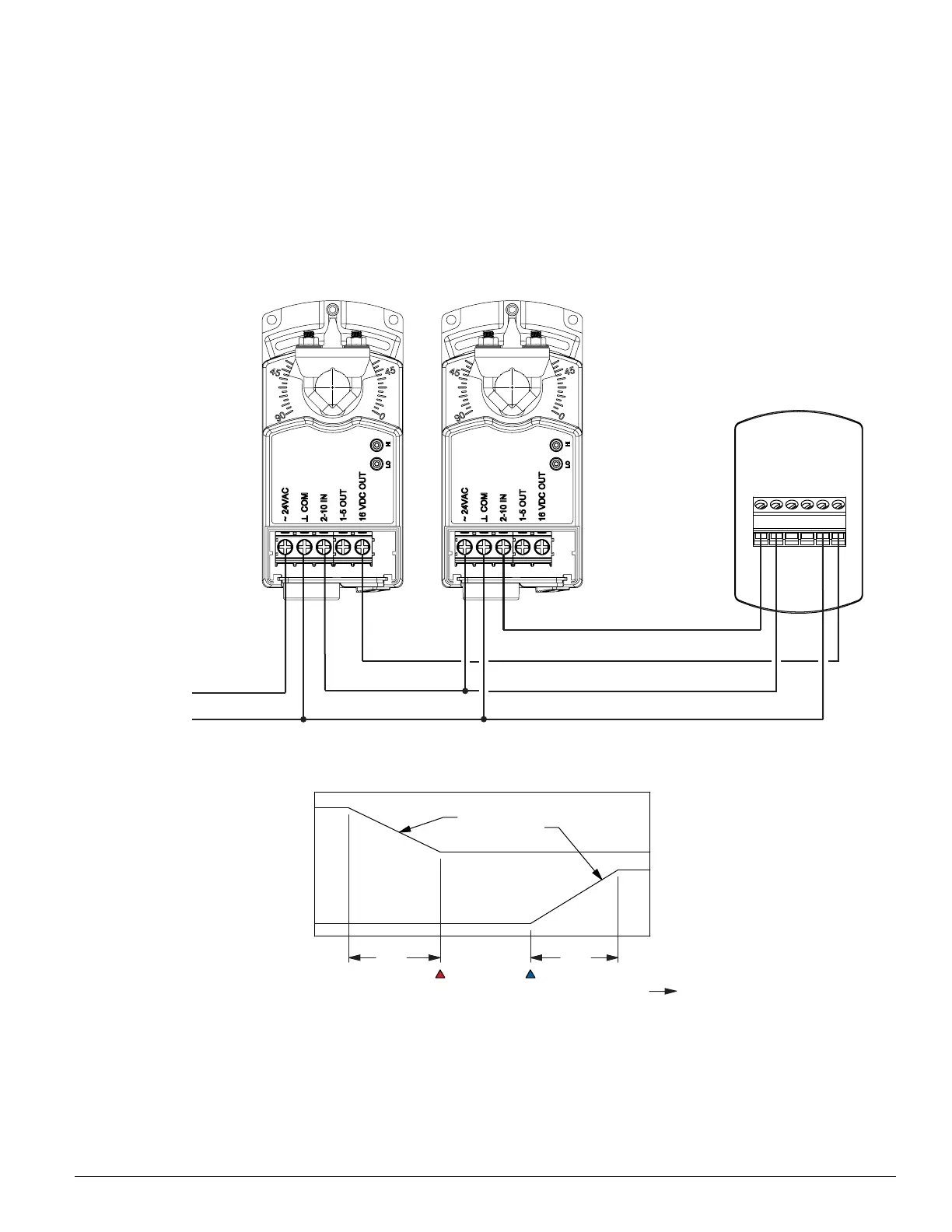

Dual Duct, Minimum Air from Cold Duct
Dual duct applications can use two CSP-4702s with
a CTE-5202. In this application, the CSP-4702s are
mounted separately on the cold and hot air duct
dampers with each using its own ow sensor.
The cold-deck controller receives the AO1 signal
from the thermostat while the hot-deck controller
receives its requested ow signal from AO2. Both
CSP-4702s can be set independently for minimum
and maximum ow seings.
Select Sequence 3 (from the CTE-5202 SYSTEM
menu). See Change Conguration on page 6.
Select
Sequence
3
AO2 MAX
AO2 MIN
AO2 (RA)
AO1 (DA)
AO1 MIN
AO1 MAX
Cooling
Setpoint
Heating
Setpoint
Temp.
Increasing
2° F 2° F
