KMC Controls CTE-5202 Application Guide

Pressure Independent VAV Applications with CSP-5001/5002 40 CTE-5202 Applications Guide, AN0912A Rev. D

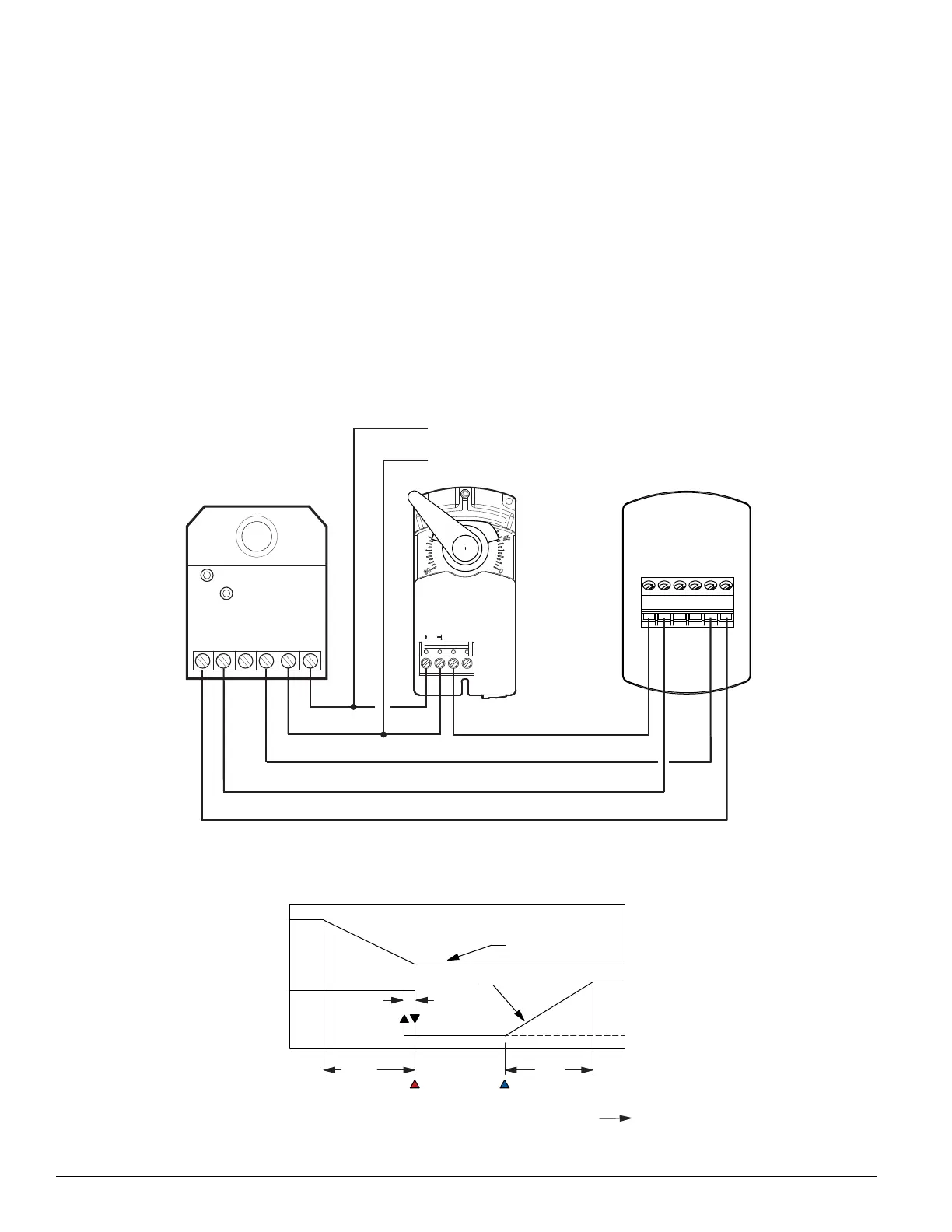

Cooling with Hot Water Reheat
~
T T
AI1
AO1 AO2
CTE-5202
Thermostat
CSP-5001
Controller-Actuator
H
~
16
V
DC
I
N
O
U
T
––
L
24 VAC
(To Flow Sensor)
24 VAC @ 9 VA
~
–
(Phase)
(Neutral)
MEP-4002
Actuator on
VEB-43/46
Series
Valve
24 VAC
Common
Input
Out
See Cooling and 3-Stage Reheat on page 35. This
application operates the same except for using a hot
water valve instead of electric heating elements for
reheat (a VEB-43/46 series valve in place of the REE-
5001 relay).
To retrot a CTE-510x thermostat in an existing
installation with a dierent valve than a VEB-43/46
series, see the corresponding installation guide for
that valve and actuator.
AO1 controls airow and AO2 controls the valve.
When there is a call for heat, the thermostat
modulates the hot water valve.
(See also the Cooling with Hot Water Reheat section
with a CTE-5104 in the CSP-5001/5002 Applications
Guide.)
NOTE: See also the use of the CTE-5202 with
discontinued VEP-12/22/34 series valves
in Cooling with Proportional Hot Water
Reheat on page 49.
Select
Sequence 2
2° F
Of Loop
10%
2° F
AO1 MAX
AUX
AO1 MIN
COLD AIR SEQUENCE
0 Volts
12 Volts
Temp. Increasing
Cooling
Setpoint
Heating
Setpoint
Hot Water Reheat
AO2 (RA)
AO1 (DA)
