Pressure Dependent VAV Applications with MEP-4002 16 CTE-5202 Applications Guide, AN0912A Rev. D

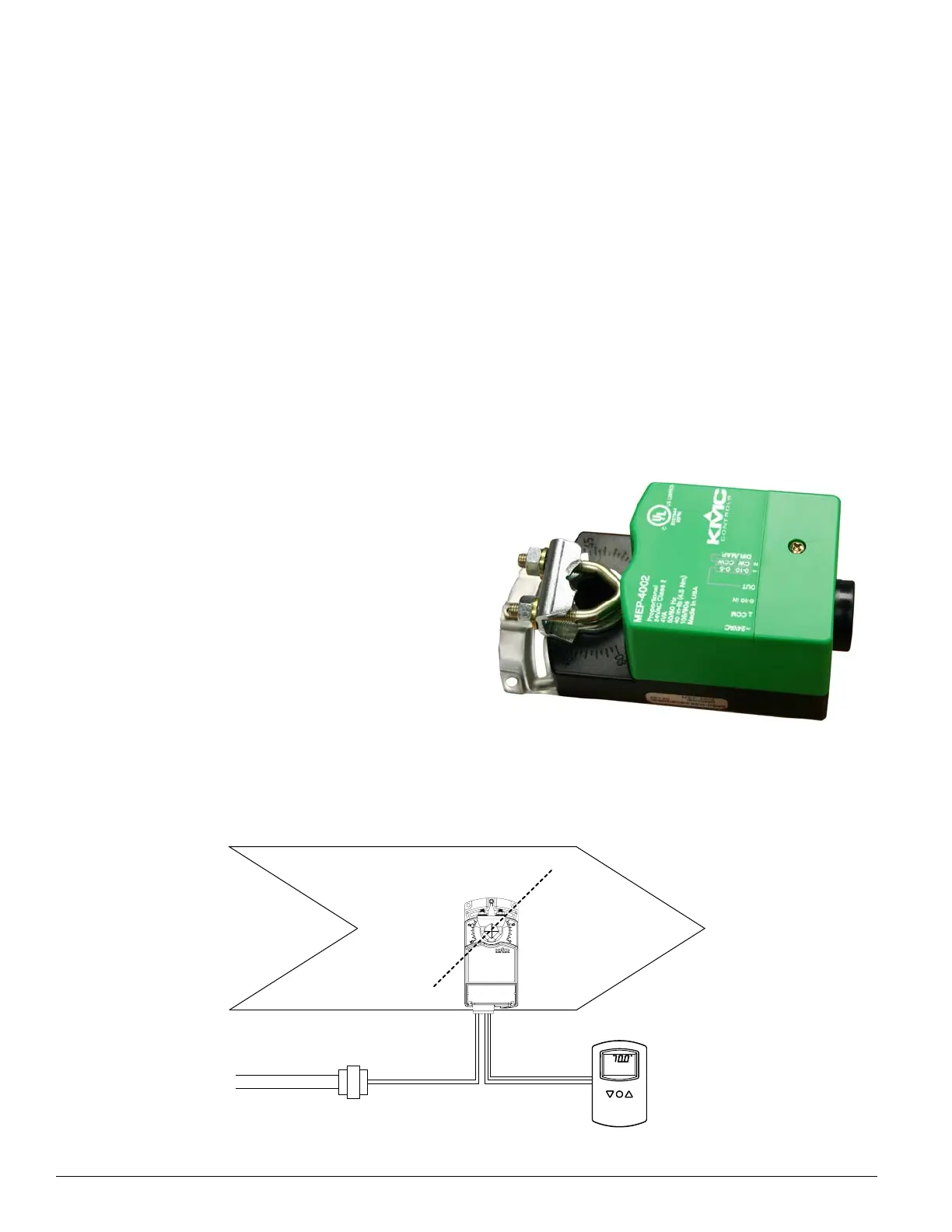

Pressure Dependent VAV
Applications with MEP-4xx2
This section gives sample applications for using the
CTE-5202 with the MEP-4xx2 actuator in pressure
dependent VAV applications.
The MEP-4xx2’s default direction is CCW to close
(CW to open or CW with increasing voltage), but
this can be reversed by a switch during installation
and conguration.
See also the MEP-4000 Series Installation Guide.
For additional applications, see Pressure Indepen-
dent VAV Applications with CSP-5001/5002 on page
32 and make the corresponding wiring adjustments
for power to the MEP-4xx2 and CTE-5202.
MEP-4xx2
24 VAC CTE-5202
Damper
SET
POINT
