KMC Controls CTE-5202 Application Guide

Single-Zone Heating and Cooling Applications 14 CTE-5202 Applications Guide, AN0912A Rev. D

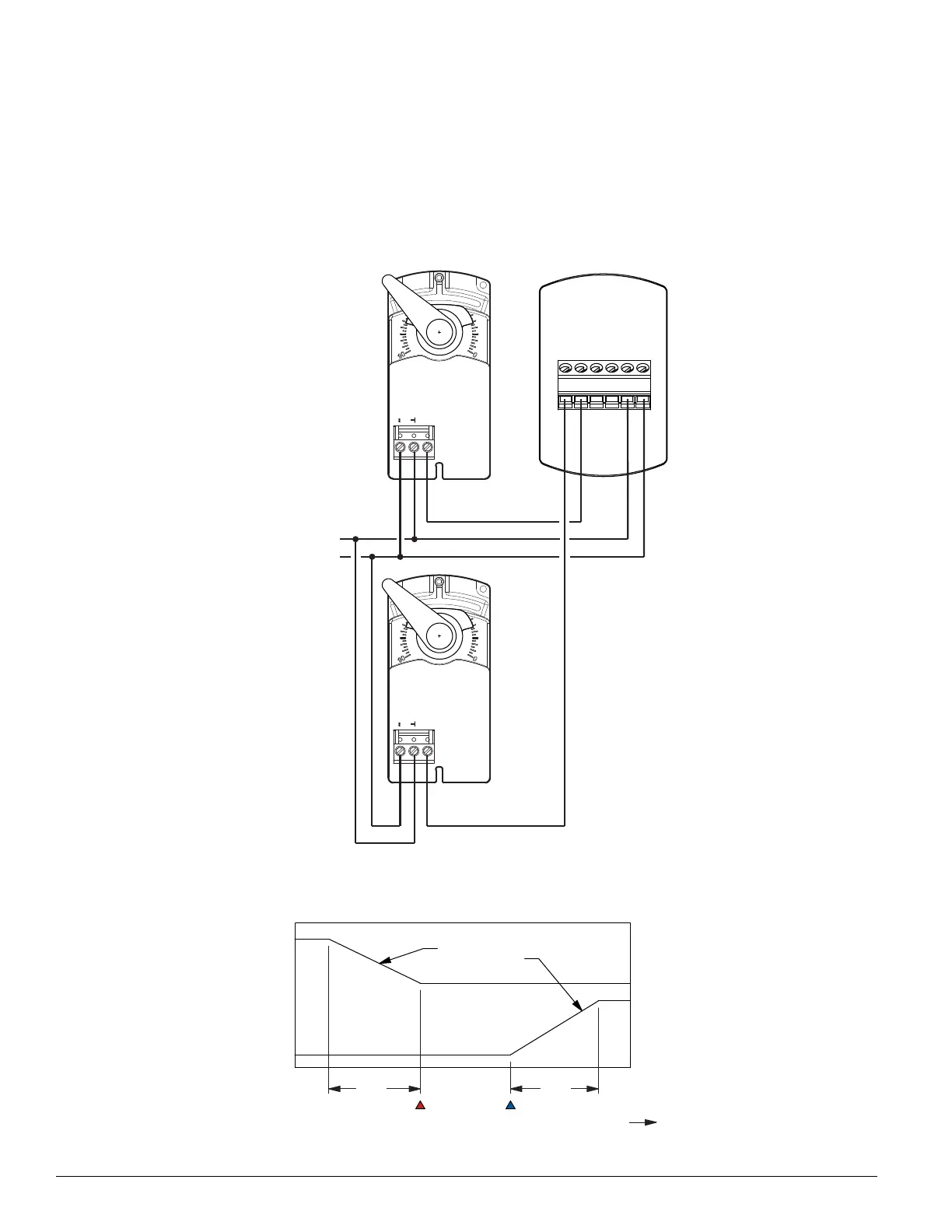

Chilled Beam 4-Pipe Heating and Cooling
~
T T
AI1
AO1 AO2
CTE-5202
Thermostat
24 VAC
~
–
(Phase)
(Neutral)
24 VAC
Common
Input
Cooling Valve
24 VAC
Common
Input
Heating Valve
Select Sequence 3
AO2 MAX
AO2 MIN
AO2 (RA)
AO1 (DA)
AO1 MIN
AO1 MAX
Cooling
Setpoint
Heating
Setpoint
Temp.
Increasing
2° F 2° F
This application enables both heating and cooling
in a chilled beam and baseboard or equivalent
installation.
This works for NC 2–10 and 0–10 VDC valves or NO
10–2 and 10–0 VDC valves.
Select Sequence 3 from the CTE-5202 SYSTEM
menu. See Change Conguration on page 6.
