15
Menu
Display

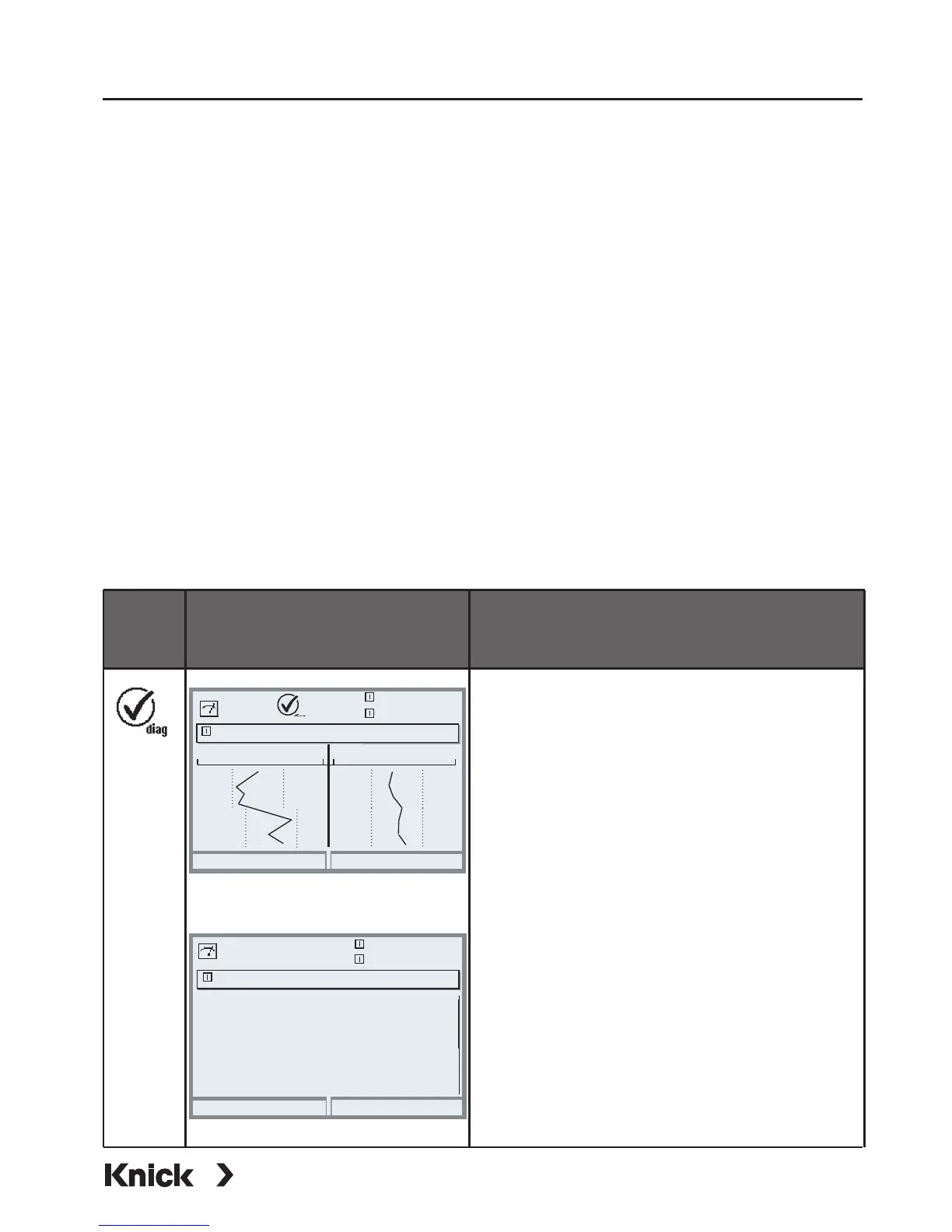

Tolerance band recorder
Cal record
SW 3400-005: Tolerance Adjustment (pH)
Select menu: Diagnostics/Module PH/Tolerance band recorder
Tolerance band recorder
(Diagnostics/Module PH 3400-xxx)
Records the tolerance ranges for zero
and slope over the time. New calibra-
tion values are only accepted if the
tolerance limits have been exceeded.
Display can be graphical or as a listing.
T-band recorder
Return
Zero
22.3 °C
7.00 pH
Slope
61.750.78.006.00
Tolerance band recorder
(For adjusting the tolerance band, see next page.)
During manual calibration this function checks the zero and slope values and
automatically performs an adjustment when the tolerance band is exceeded.
The parameters are stored in the tolerance band recorder (Diagnostics menu).
If the zero and slope values determined during calibration remain within their
tolerance bands, the new data are not saved.
Drift due to aging or calibration scatter can be identified at a glance, thus
allowing to draw conclusions as to electrode life and the required calibration
interval.
In the Calibration record you see whether the data have been saved or
whether the old data can still be tolerated.
Cal record
Return
22.3 °C
7.00 pH
Last calibration
Old el data
05/02/2010 11:24
Cal tolerance band
Cal mode
7.00 pH
Calimatic
Zero point
Slope
0 mV
58.0 mV/pH
Isothermal potential
Cal record
(Diagnostics/Module PH 3400-xxx)
In the Cal record you can see whether
the data have been saved (New el
data) or whether the old calibration
data can still be tolerated (Old el data).
