SW 3400-005: Tolerance Adjustment (pH)
Adjustment of tolerance band. Select menu:
Parameter setting/Module PH/Cal preset values/Cal tolerance band

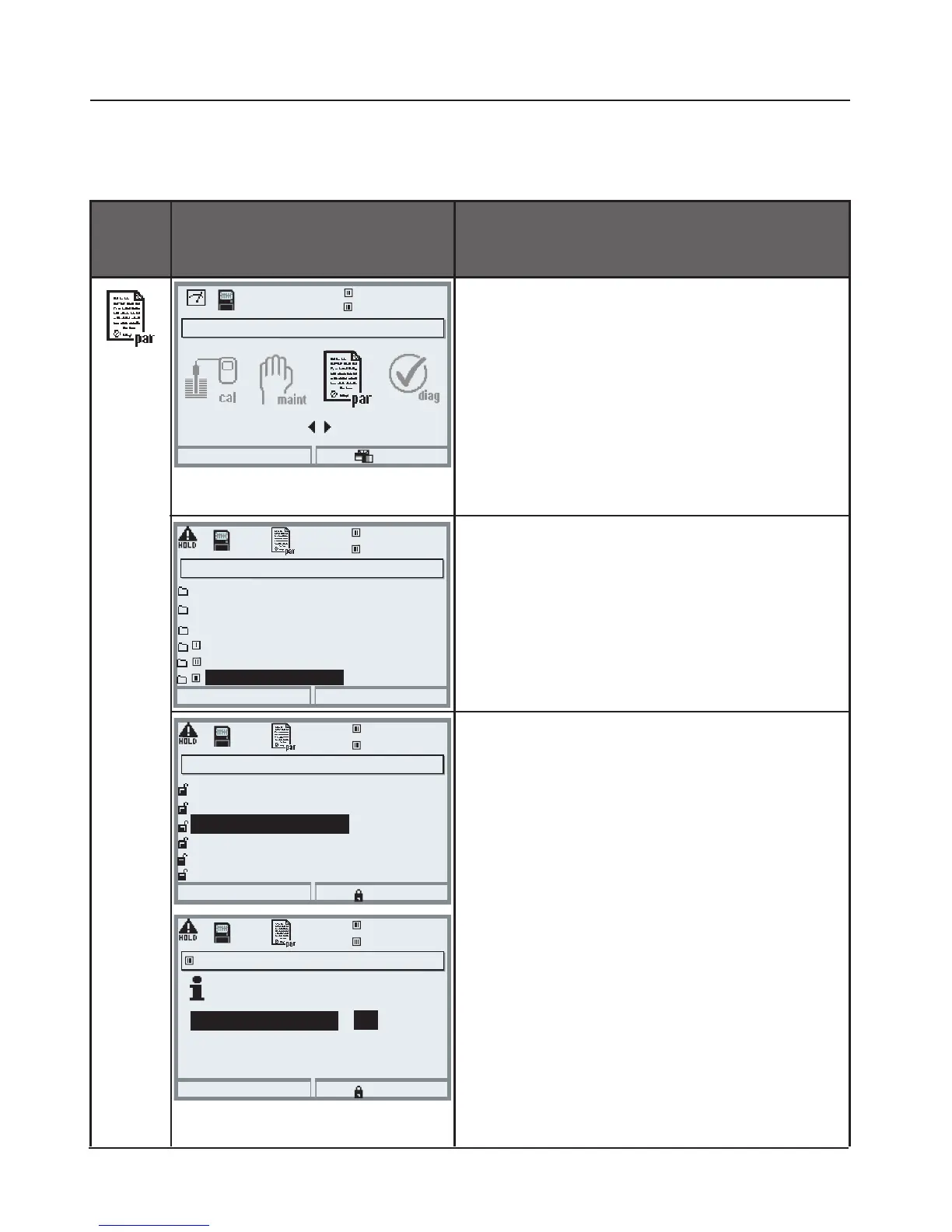

Menu Display Parameter setting
Menu selection
From the measuring mode:
Press menu key to select menu.
Select parameter setting using arrow
keys, press enter to confirm.
Passcode as delivered: 1989
Parameter setting
Select “PH” module,
press enter to confirm.
pH module
Select "Cal preset values" using arrow
keys. Press enter to confirm.
Then select "Cal tolerance band".
Menu selection
Return to meas
17.1 °C
Select:
[enter]
Lingua
7.00 pH
Parameter setting (Administrator)
17.1°C
Return
Module CONDI 3400-051
Module FRONT 3400-011
Module BASE 3400-021
7.00pH
System control
Module PID 3400-121
Module PH 3400-032
Module PH 3400-032 (Administrator)
17.1 °C
TC process medium
Sensor data
Cal preset values
7.00pH
ORP/rH value
Delta function
Input filter
Block
Return
Cal tolerance band (Administrator)
17.1 °C
Tolerance Zero
Tolerance band check
7.00pH
Tolerance Slope
Calibration data taken over when
tolerance band is exceeded
Block
Return
+02.00 pH
On
002.0 mV/pH
Off
Cal tolerance band
Enter tolerance ranges for zero and
slope
(enter numbers using arrow keys,
confirm by pressing enter.)
