Koala LENS - Measurements

10
Z
Y
d. MEASUREMENTS
The position of KOALA does not affect the method of taking measurements and the following images
depict various types of equipment that may differ in appearance, but the measurement method remains
consistent.

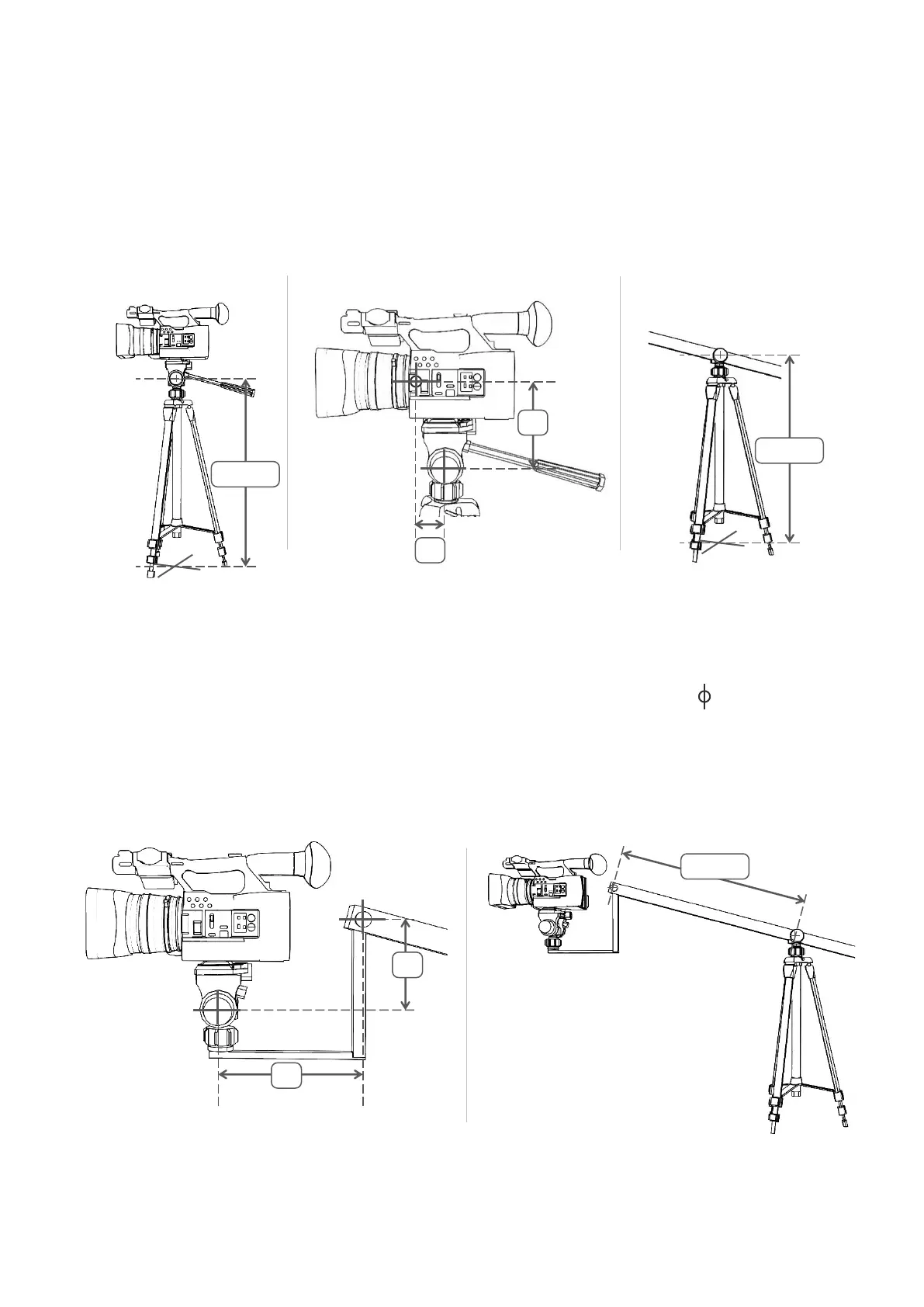

CRANE, TELESCOPIC, SLIDER
HEAD offset (mm)
CRANE length (mm)
From the Head fulcrum to the Front Crane fulcrum.
In the example above Y is positive and Z is negative
From the front Crane fulcrum to Tripod fulcrum
HEAD
HEAD, CRANE
CRANE, TELESC., SLIDER
TRIPOD height (mm)
CMOS offset (mm)
TRIPOD height (mm)
From the Head
fulcrum to the floor
From the Head fulcrum to the CMOS position*
In the example above Y and Z are positive.
From the Crane / Slider
fulcrum to the floor
*NOTE: the position of the CMOS depends on the camera model used. You can see in some case.
Z
Y
LENGTH
HEIGHT
HEIGHT
