Duct Cover Installation (Cont.)
NOTE: BE CAREFUL WHEN USING
ELECTRICAL SCREWDRIVER, DAMAGE TO
THE HOOD MAY OCCUR.
9. Secure the outer duct cover to the hood
mounting bracket with 4 (3/16” x 3/8”) screws
(provided). Refer to Figure 7.
10. Secure the inner duct cover with 2 (3/16” x
3/8) screws to the duct cover mounting
Bracket. Refer to Figure 8.
Install Accessories
11. Place baffle filters underneath the hood. Refer
to Figure 9.
Final Assembly
12. Turn power ON in control panel. Check all
lights and fan operation.
13. Make sure to leave this manual for the
homeowner.

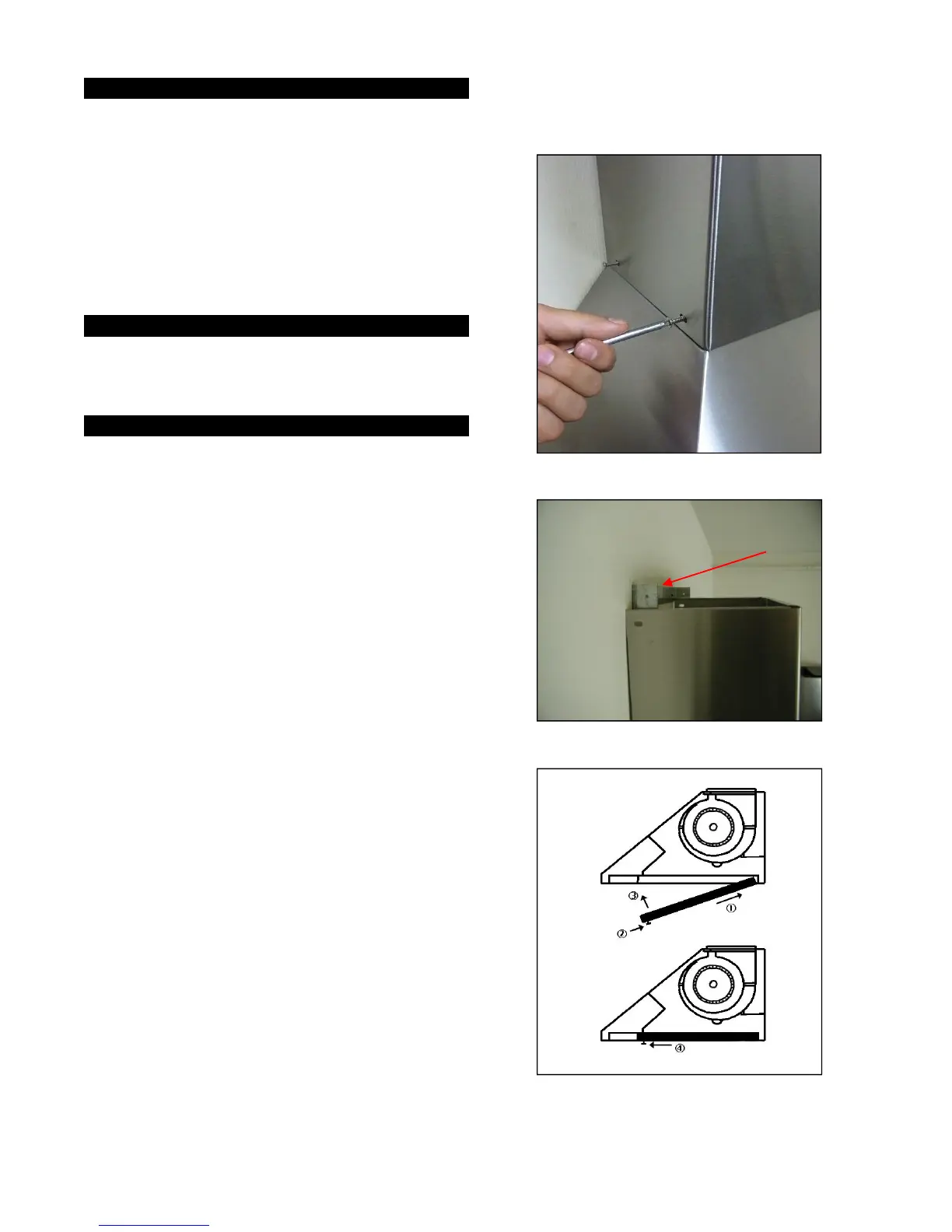

Figure 7
