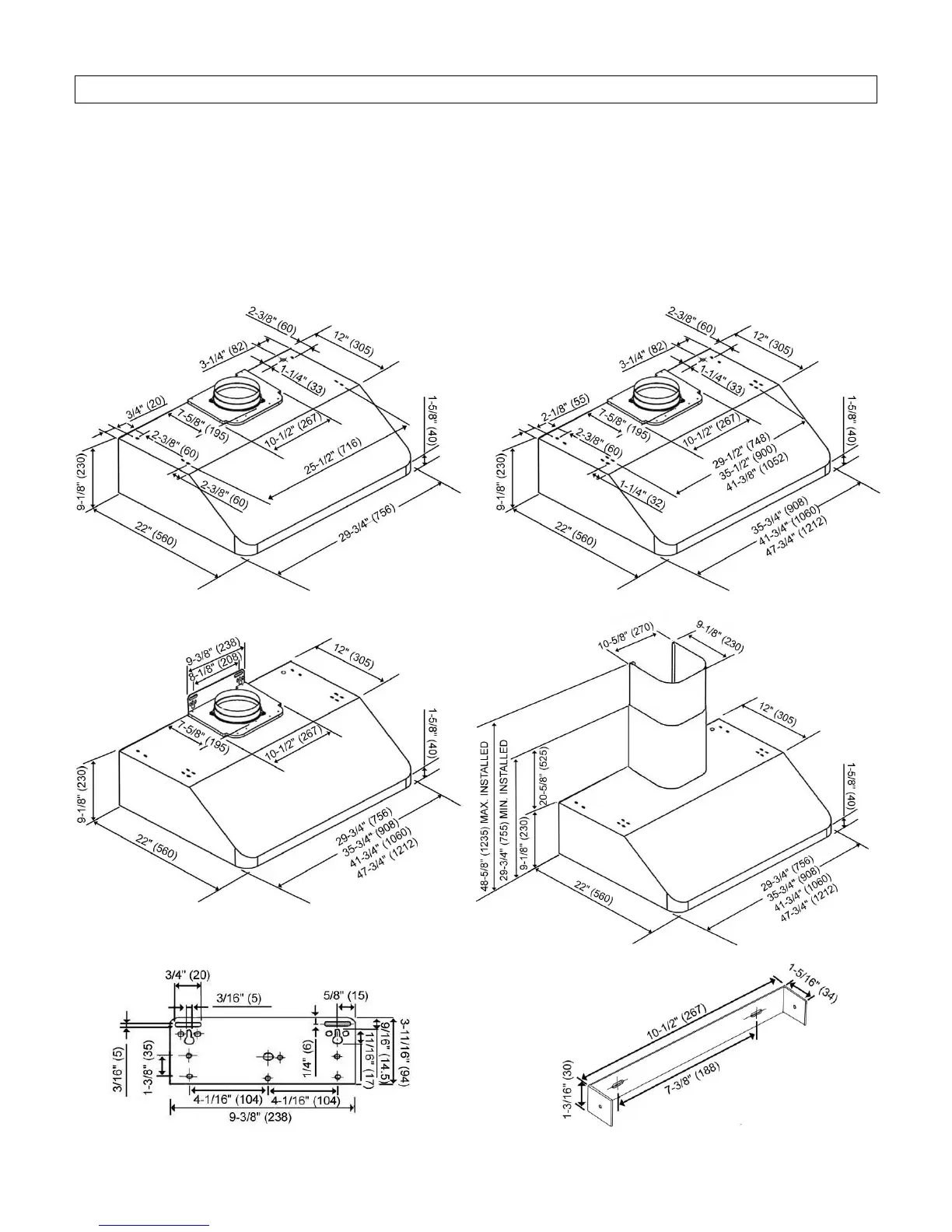

MEASUREMENTS & DIAGRAMS
 All measurements in ( ) are millimeters.
 All inch measurements are converted from millimeters. Inch
measurements are estimated.
- FOR UNDER THE CABINET -
- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -
***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket
MODEL NO.:
CH9130SQB
MODEL NO.:
CH9136SQB
CH9142SQB
CH9148SQB
