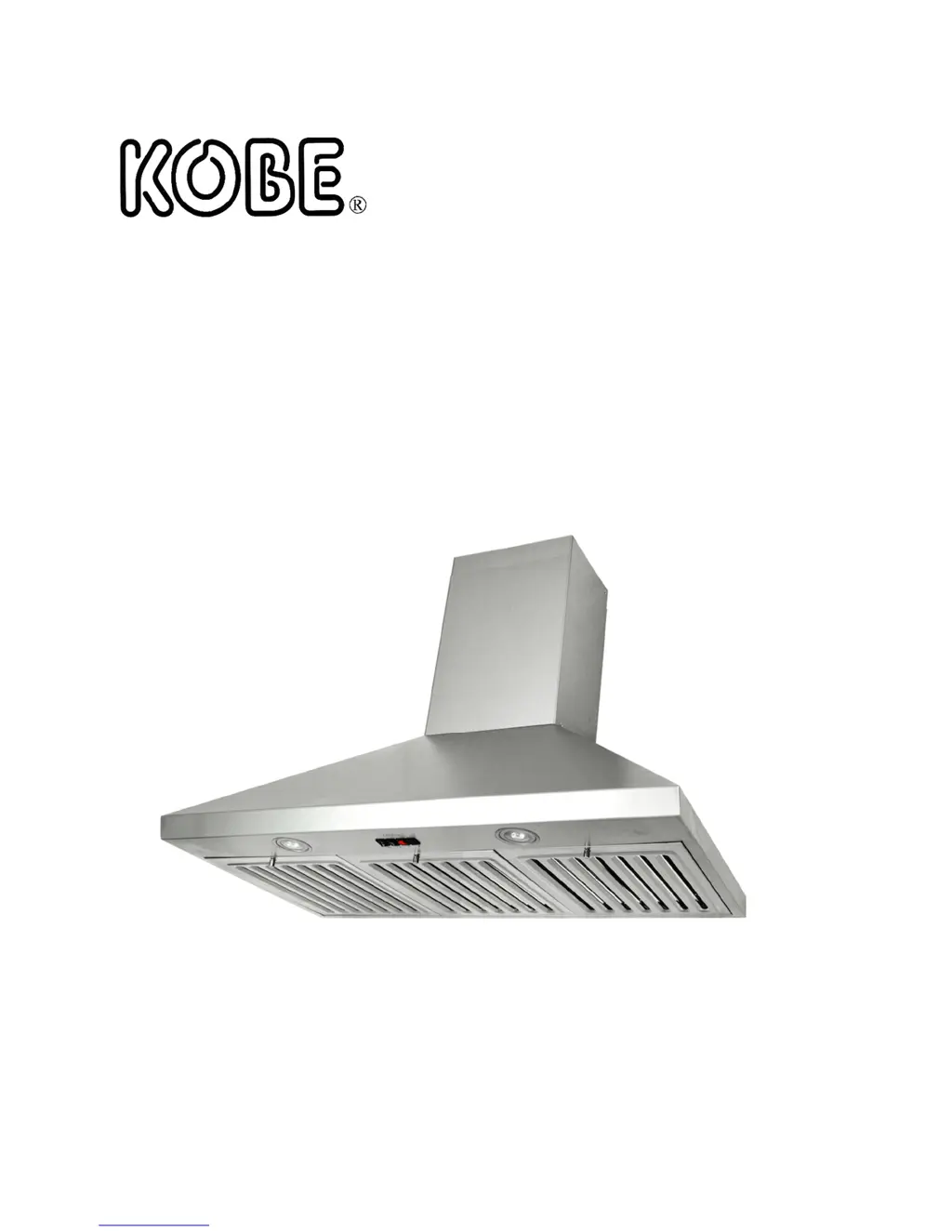

KOBE Brillia Series User Manual (English)

Questions and Answers:

R
rivaselizabethAug 14, 2025
What to do if KOBE Brillia lights and motors don't work after installation?
- J
  Jessica CaldwellAug 15, 2025
  If, after installation, the lights and motors on your KOBE Ventilation Hood aren't working, there could be several reasons. First, ensure the circuit breaker and the unit's power are turned on, and use a voltage meter to check the power supply. Also, check and tighten the wire connections. If these steps don't resolve the issue, the processor board or control panel might be defective and need replacement. Check the power input and output on the processor board to determine if a replacement is needed.
M
matthewdunlapAug 18, 2025
Why is my KOBE Ventilation Hood not venting out correctly?
- H
  Hannah BrownAug 18, 2025
  If your KOBE Ventilation Hood isn't venting correctly, several factors could be the cause. First, ensure the clearance between the hood and cooktop is within the recommended range of 27” to 30” (or 30” to 36” for island hoods). Insufficient make-up air in the house can also be a problem; try opening a window to improve performance. Finally, check for and remove any obstacles in the duct work, and ensure the ducting matches the manufacturer's suggested size.
I
imeyerAug 21, 2025
What to do if KOBE Ventilation Hood lights work but the motor doesn't?
- H
  Harold AguilarAug 21, 2025
  If the lights on your KOBE Ventilation Hood are working, but the motor isn't, the motor itself may be defective and require replacement. Another potential cause is a defective capacitor, which would also need to be replaced. Lastly, the control panel might be defective, requiring its replacement.
O
odonnellaliciaAug 25, 2025
How to fix KOBE Brillia Ventilation Hood when motor works but lights don't?
- B
  Bradley SmithAug 26, 2025
  If the motor in your KOBE Ventilation Hood is working, but the lights are not, the LED(s) may be defective and need to be replaced. Also, check the wire continuity from the light transformer to the light housing(s) as the light wiring(s) could be loose. A defective light driver may also be the cause, so check its power input and output and replace if necessary. Finally, the control panel might be defective, requiring replacement.
C
Clinton DavenportAug 28, 2025
Why is my KOBE Brillia vibrating?
- M
  Michelle WagnerAug 28, 2025
  If your KOBE Ventilation Hood is vibrating, it could be due to a few reasons. Check that the blower system is secure by tightening the squirrel cage and air chamber. If that doesn't solve the problem, the squirrel cage might be unbalanced and need replacement. Lastly, ensure the hood is securely mounted by checking the installation and tightening the mounting bracket.
R
Rebecca HardyAug 31, 2025
How to stop cold air coming from KOBE Brillia?
- J
  Joseph AlvarezAug 31, 2025
  If cold air is entering your home through the KOBE Ventilation Hood, it may be because the pipe connection isn't properly sealed; check the pipe installation. Another reason might be that the damper is either improperly installed or missing. Check the damper installation, and consider installing one, as it helps eliminate air backflow.
B
Brett SchroederSep 3, 2025
What to do if KOBE Ventilation Hood motors and lights don't work after installation?
- C
  Crystal SmithSep 3, 2025
  If the motors and lights aren't working after installation, first, ensure the circuit breaker and the unit's power are ON, and use a voltage meter to check the power supply. Also, check and tighten the wire connections. If the issue persists, the control panel might be defective and need replacement.
N
Nathan MillerSep 7, 2025
How to fix KOBE Ventilation Hood when the motor works but the lights don't?
- D
  Donald MitchellSep 7, 2025
  If the motor is working but the lights aren't, the LED light fixture(s) may be defective and need replacing. Check the wire continuity from the Control Panel to the LED Driver to the LED light fixture(s) for any loose connections. It is also possible that the control panel is defective and needs to be replaced.
P
pwilliamsonSep 10, 2025
How to stop cold air coming from KOBE Ventilation Hood into the home?
- C
  Catherine BatesSep 12, 2025
  Cold air coming into the home suggests that the pipe connection is not properly sealed, so check the pipe installation. It could also mean that the damper is not properly installed or is missing; check the damper installation. Installing the damper will help eliminate air backflow.

KOBE Brillia Series Specifications

General

Brand	KOBE
Model	Brillia Series
Category	Ventilation Hood
Language	English

Summary

Important Initial Safety and Return Information

Installation Readiness Checks

Verify package contents, inspect for damage, and ensure professional pre-installation testing.

Problem Resolution Steps

Instructions for issues: do not install, keep packaging, have invoice/serial number ready, contact merchant or KOBE.

Return Policy Conditions

No return/refund/exchange if installed, holes punctured, or original packaging/parts missing.

General Safety Warnings and Precautions

Fire, Shock, Injury Prevention

Adhere to codes, avoid utility damage, vent externally, power off before servicing.

Warranty Voidance Factors

Warranty nullified by misuse, poor installation, unauthorized repairs, or external factors.

Grease Fire Safety Guidelines

Maintain cleanliness, operate hood during cooking, use high settings judiciously, avoid unattended cooking.

Emergency Response and Cautions

Grease Fire Response

Smother flames, keep materials away, evacuate if needed, use extinguisher cautiously.

Gas Leak Response

Extinguish flames, avoid ignition sources, ventilate, call emergency services.

Operational Cautions

Ventilation only, metal ductwork required, follow standards, two-person installation advised.

Electrical Hazard Warning

Disconnect power before service. Handle mercury-containing bulbs responsibly.

Package Contents and Model Identification

Applicable Model Numbers

Lists KOBE Brillia Series 30" and 36" models.

Range Hood Box Components

Details contents of the main range hood box, labeled A through J.

Duct Cover Box Information

Specifies included duct cover boxes for RA0930DC and RA0946DC models.

Contact and Information Source

Provides KOBE website and phone number for further details.

Installation Preparation and Measurements

Installation Measurement Calculations

Use Table 1 for calculating installation dimensions based on room heights.

Handling Safety Warning

Exercise caution with sharp edges on hood parts during installation and servicing.

Screwdriver Usage Note

Be careful with electrical screwdrivers to prevent damage to the hood.

Installation Steps: Mounting Bracket and Preparation

Pre-Installation Site Prep

Determine vent path, minimize ducting complexity, prepare wall framing, remove protective film.

Mounting Bracket Installation

Mark wall, install mounting screws, attach bracket, and secure the hood.

Appliance Safety During Install

Ensure power and gas to the cooking range are turned off before installation.

Installation: Ductwork, Wiring, and Covers

Ductwork Connection

Connect 6" duct pipe securely and ensure airtight joints with duct tape.

Electrical Wiring Procedure

Grounding by a qualified electrician is mandatory. Always disconnect power before wiring.

Duct Cover Assembly

Mount bracket, secure inner cover, and slide outer duct cover onto the hood.

Final Installation and Accessories

Duct Cover Securing

Fasten outer duct cover to bracket, then attach inner duct cover with screws.

Accessory Installation

Install baffle filters underneath the hood as illustrated.

Post-Installation Checks

Verify power, lights, and fan operation. Retain manual for homeowner.

Operating the Range Hood

Applicable Model Numbers

Lists KOBE Brillia Series 30" and 36" models.

Control Panel Layout

Diagram of controls for fan speed (Low, Quiet, High) and light.

Fan Speed Control

Operate fan using On/Off and speed selection buttons for desired airflow.

Light Control

Use the dedicated Light Control button to turn the hood lights on or off.

Maintenance and Cleaning Procedures

Fan Operation Safety

Never place hands or objects near the operating fan mechanism.

Hood Surface Care

Clean with mild soap and soft cloth; use stainless steel cleaner for spots. Avoid abrasives.

Filter and Tunnel Cleaning

Drain oil from filters/tunnel regularly. Wash with soapy water; filters are dishwasher safe.

Technical Specifications

Model, Material, and Consumption

Details model/size, color, material, and electrical consumption.

Dimensions, Weight, and Performance

Provides physical dimensions, weight, and operational performance metrics like CFM and Sone.

Dimensional Diagrams

Measurement Conventions

Units are in millimeters (mm) in parentheses; inches are converted or estimated.

Hood Side Profile Diagram

Illustrates hood, duct cover, and mounting dimensions.

Hood Front and Bottom Views

Shows the front appearance and bottom layout of the hood.

Duct Cover Extension Diagrams

RA0930DC Duct Cover Dimensions

Diagram detailing dimensions for the RA0930DC duct cover.

RA0946DC Duct Cover Dimensions

Diagram detailing dimensions for the RA0946DC duct cover.

Parts List and Identification

Applicable Model Numbers

Lists model numbers associated with the parts list.

Component Part Numbers

Table listing parts, descriptions, model applicability, and their unique part numbers.

Parts Identification Diagram

Model Number Reference

Cross-references parts to specific model numbers.

Illustrated Component Layout

Diagram showing numbered components corresponding to the parts list.

Electrical Circuit Diagram

Model Number Applicability

Indicates the models covered by this circuit diagram.

System Wiring Schematic

Visual representation of electrical connections for motor, lights, and controls.

Troubleshooting Common Issues

Power and Motor Functionality

Solutions for units where motors or lights are not working, or only one functions.

Vibration and Balancing

Addresses causes and fixes for range hood vibration and securing issues.

Venting and Airflow Problems

Troubleshooting for incorrect venting, ductwork, and make-up air issues.

Cold Air and Backflow Issues

Resolving problems related to cold air entering the home, typically damper related.

Warranty Terms and Conditions

Two-Year Limited Warranty Coverage

Details warranty period and coverage for parts and labor on manufacturing defects.

Service Access and Responsibilities

User's responsibility to ensure accessibility for technicians and not alter fixtures.

Potential Additional Charges

Lists circumstances where extra charges may apply during warranty service.

Warranty Exclusion List

Defines conditions and circumstances not covered by the product warranty.

Warranty Service Procedures

Warranty Service Eligibility

Requirements for qualifying for warranty service, including proof of purchase.

USA Service Contact Information

Contact details for KOBE Service Center in the USA for warranty claims.

Canada Service Contact Information

Contact information for KOBE service and support in Canada.

Warranty Information Record

Form Completion Guidance

Instructions for filling out the warranty information form for future reference.

Service Contact Directory

Repeats contact details for KOBE Service Center (USA) and Canadian support.

Manufacturer and Usage Notice

KOBE Company Details

Provides KOBE Range Hoods address and official website.

International Usage Warning

Advises against overseas use due to compatibility and electrical code risks, voiding warranty.
