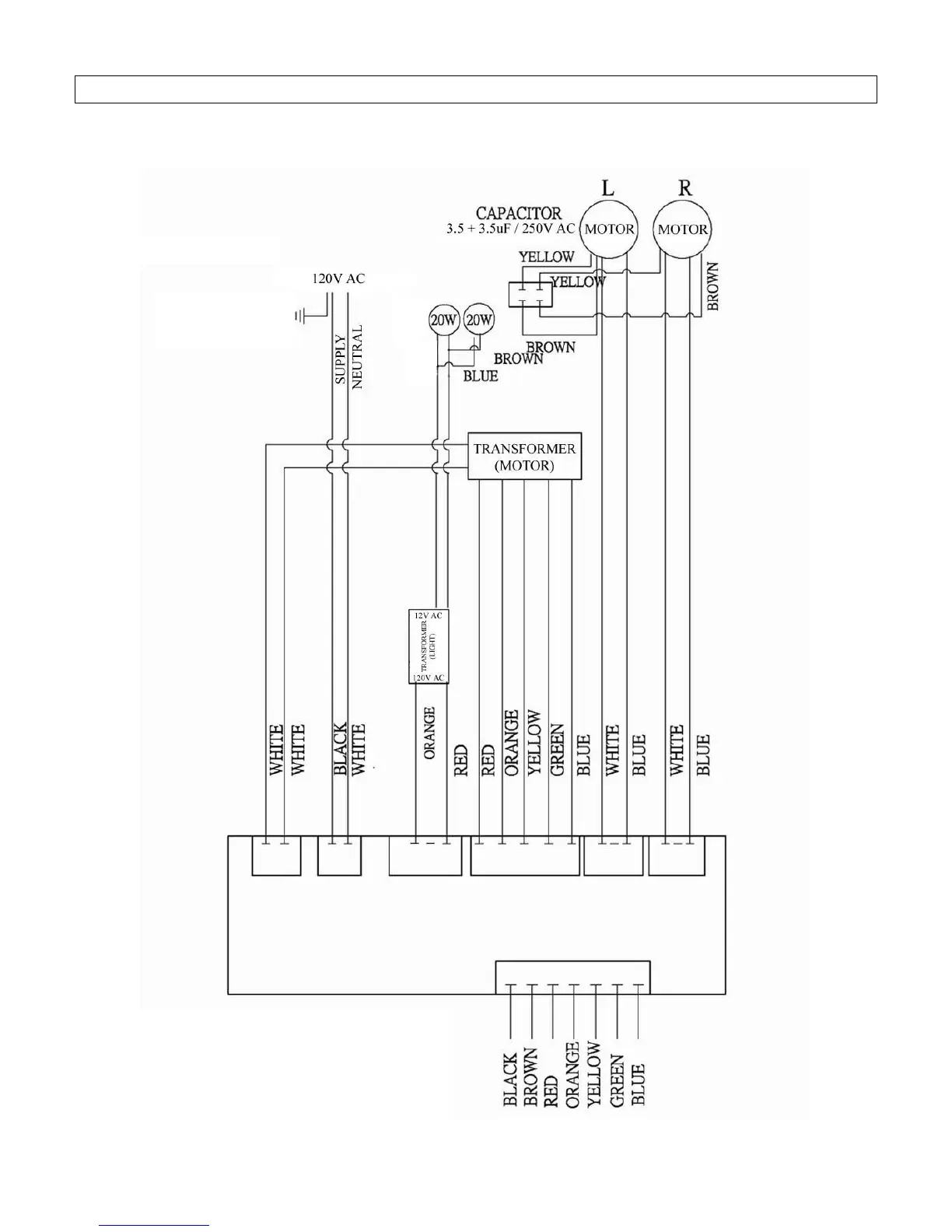

DIAGRAMA DE CIRCUITO
MODELO
NO.:
CH9130SQB
CH9136SQB
White=Blanco Black=Negro
Orange=Naranja Red=Rojo
Blue=Azul Green=Verde
Yellow=Amarillo Brown=Café
CONEXION A
TIERRA
