Bulb arrangement in the front headlights

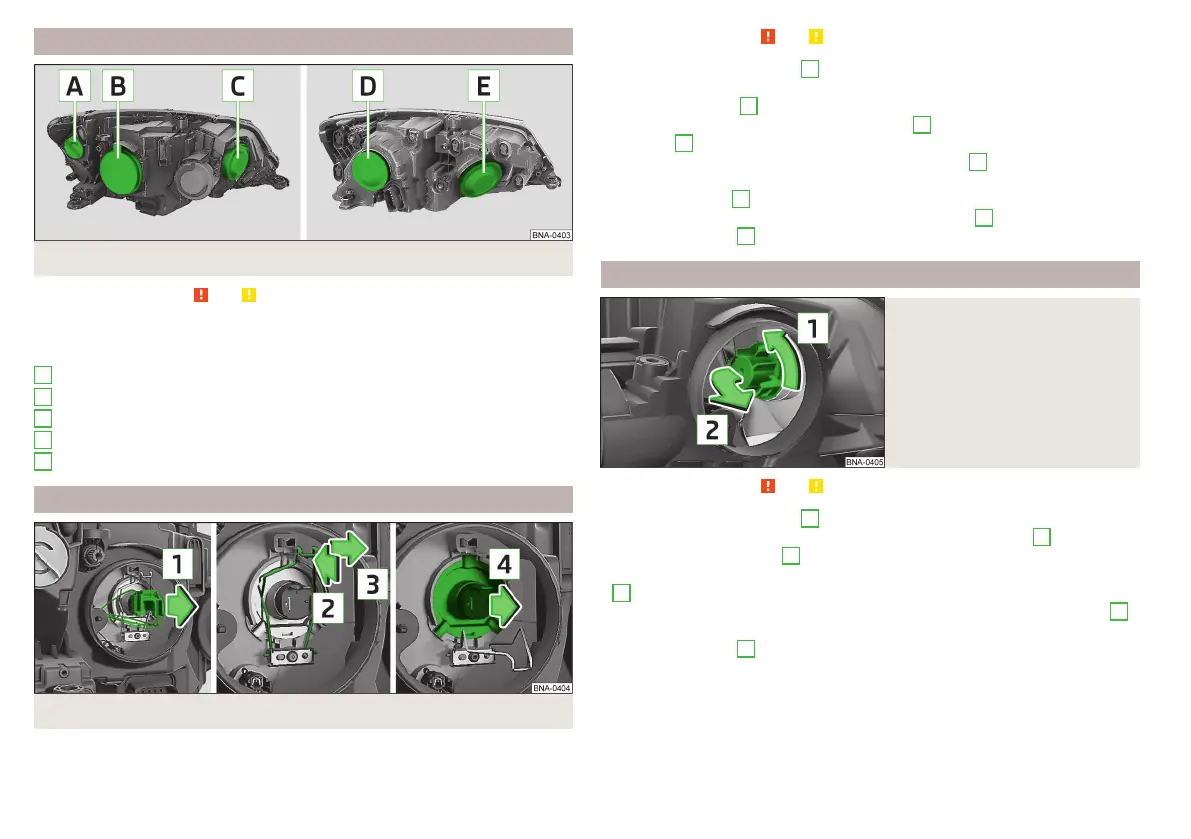

Fig. 106 Halogen headlights/halogen projector headlights
Read and observe and on page 97 first.
The vehicle is equipped with headlights with halogen bulbs.
Bulb arrangement » fig. 106
Dayt. r. light
Low beam, high beam and parking light
Flashing
Low beam
High beam and turning signal switch
Changing bulbs for low and main beam (Halogen headlights)
Fig. 107 Removing bulbs for low and main beam
A
B
C
D
E
Read and observe and on page 97 first.
›
Remove the protective cap
B
» fig. 106 on page 98.
›
Press the connector latch and remove the plug connector by jiggling in the
direction of arrow
1
» fig. 107.
›
Unlock the springs in the direction of arrow
2
and remove in the direction
of arrow
3
.
›
Remove the defective bulb in the direction of arrow
4
.
›
Fit a new bulb into the headlamp and secure the spring in the opposite direc-
tion to the arrow
3
.
›
Insert the plug in the opposite direction to the arrow
1
.
›
Fit protective cap
B
» fig. 106 on page 98 Insert.
Replacing the bulb for the side light (Halogen headlights)
Fig. 108
Changing the front turn signal
bulb
Read and observe and on page 97 first.
›
Remove the protective cap
C
» fig. 106 on page 98.
›
Turn the pedestal with the light bulb in the direction of arrow
1
and pull out
in the direction of arrow
2
» fig. 108.
›
Insert the socket with the new bulb in the opposite direction to the arrow
2
.
›
Turn the socket with the new bulb in the opposite direction to the arrow
1
until it stops.
›
Fit protective cap
C
» fig. 106 on page 98.
