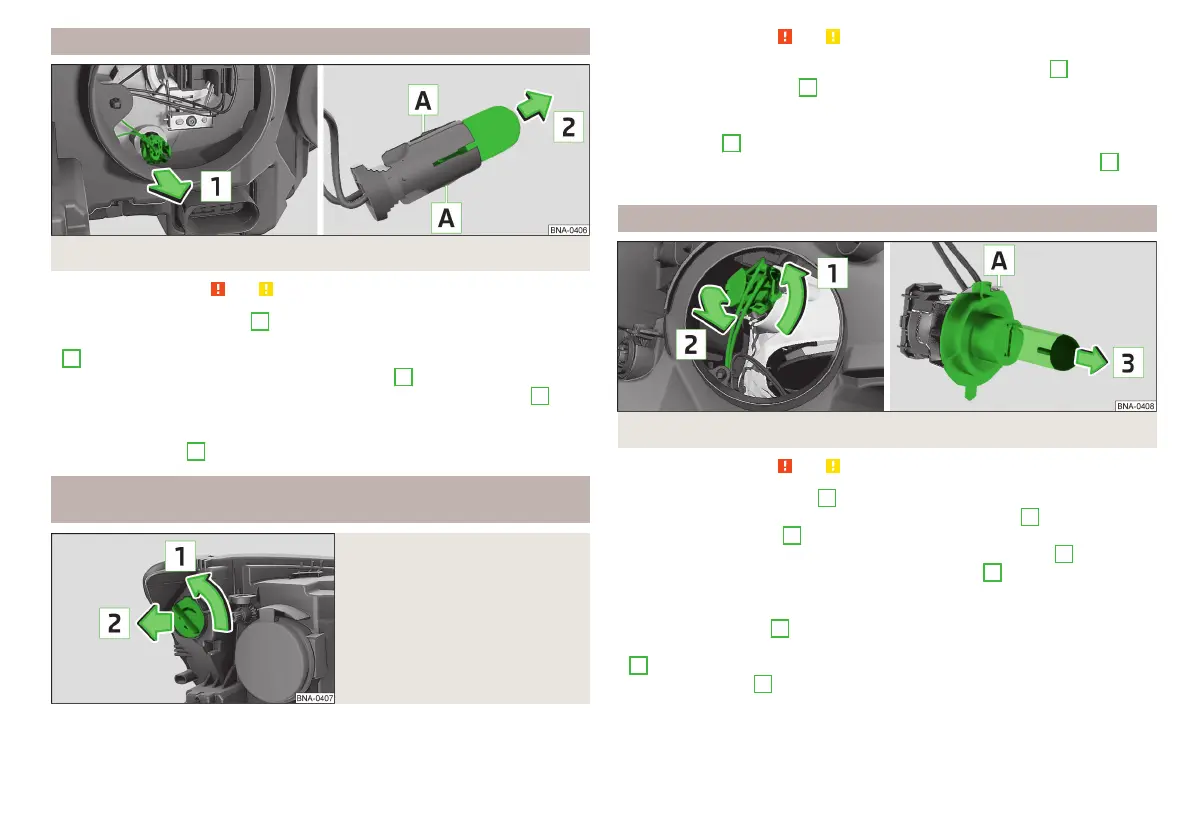

Replacing the bulb for the side light (Halogen headlights)
Fig. 109 Change the light bulb for the parking light
Read and observe and on page 97 first.
›
Remove the protective cap
B
» fig. 106 on page 98.
›
Remove the pedestal with the bulb by jiggling it out in the direction of arrow
1
» fig. 109.
›
Grasp the pedestal with the light bulb in the area
A
.
›
Remove the faulty bulb from the holder in the direction of the arrow
2
.
›
Insert a new bulb in the bulb holder up to the stop.
›
Replace the bulb holder in the headlamp with the bulb.
›
Fit protective cap
B
» fig. 106 on page 98 Insert.
Replacing the bulb for the daytime running lights light (Halogen
headlights)
Fig. 110
Changing the bulb for the day-
time running light
Read and observe and on page 97 first.
›
Turn the pedestal with the light bulb in the direction of arrow
1
and pull out
in the direction of arrow
2
» fig. 110.
›
Change the bulb in the socket.
›
Insert the socket with the new bulb into the headlight in the opposite direc-
tion to arrow
2
.
›
Turn the socket with the new bulb in the opposite direction to arrow
1
until
it stops.
Replacing the bulb for the low beam (Halogen headlights)
Fig. 111
Changing the bulb for the low beam
Read and observe and on page 97 first.
›
Remove the protective cap
D
» fig. 106 on page 98.
›
Turn the plug with the light bulb in the direction of arrow
1
and pull out in
the direction of arrow
2
» fig. 111.
›
Remove the bulb from the holder in the direction of the arrow
3
.
›
Insert a new bulb into the connector so that the lug
A
on the connector
snaps into the groove on the bulb.
›
Insert the connector with the new bulb into the headlight in the opposite di-
rection to the arrow
2
.
›
Turn the connector with the new bulb in the opposite direction to the arrow
1
until it stops.
›
Fit protective cap
D
» fig. 106 on page 98.
