Replacing the bulb for the main beam (Halogen headlights)

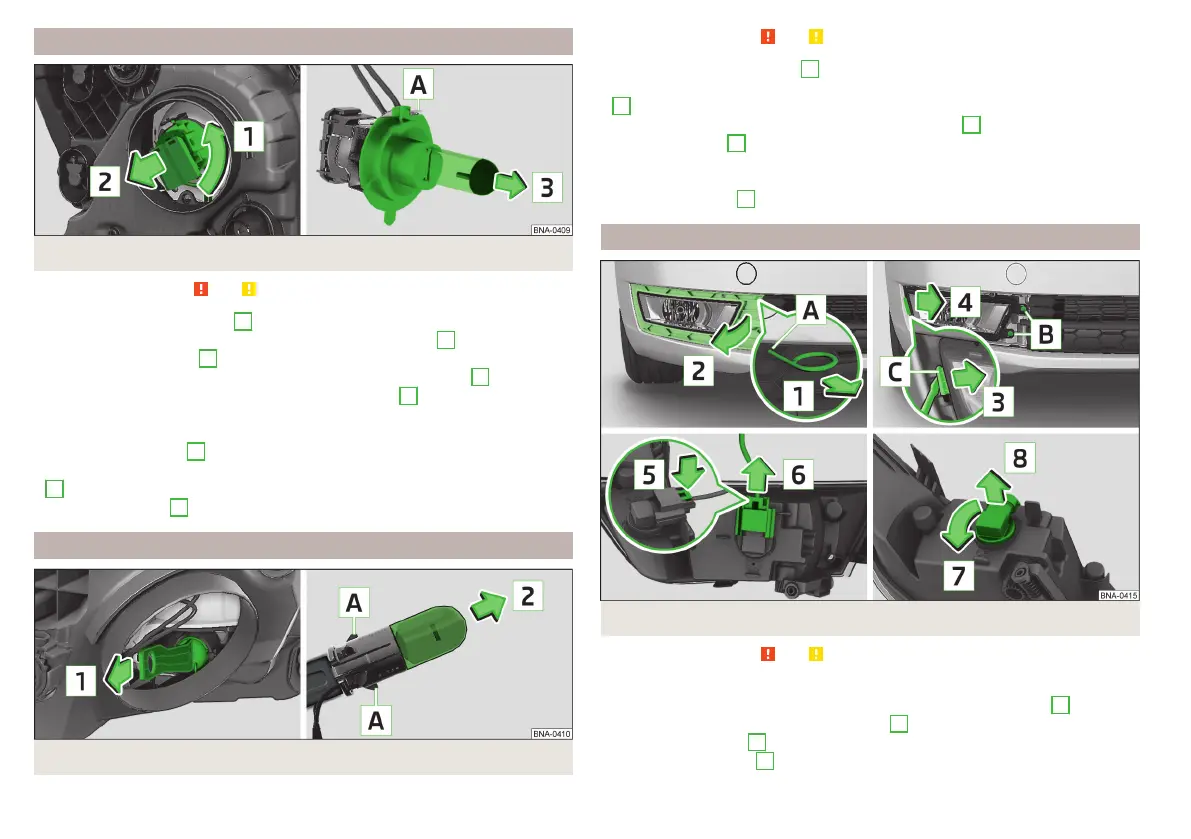

Fig. 112 Changing the bulb for the main beam
Read and observe and on page 97 first.
›
Remove the protective cap
E
» fig. 106 on page 98.
›
Turn the plug with the light bulb in the direction of arrow
1
and pull out in
the direction of arrow
2
» fig. 112.
›
Remove the bulb from the holder in the direction of the arrow
3
.
›
Insert a new bulb into the connector so that the lug
A
on the connector
snaps into the groove on the bulb.
›
Insert the connector with the new bulb into the headlight in the opposite di-
rection to the arrow
2
.
›
Turn the connector with the new bulb in the opposite direction to the arrow
1
until it stops.
›
Fit protective cap
E
» fig. 106 on page 98.
Replacing the bulb for the turn signal light (Halogen headlights)
Fig. 113
Changing the bulb for the turn signal light
Read and observe and on page 97 first.
›
Remove the protective cap
E
» fig. 106 on page 98.
›
Remove the pedestal with the bulb by jiggling it out in the direction of arrow
1
» fig. 113.
›
Grasp the pedestal with the light bulb in the region
A
and pull out in the di-
rection of arrow
2
.
›
Insert a new bulb in the bulb holder up to the stop.
›
Replace the bulb holder in the headlamp with the bulb.
›
Fit protective cap
E
» fig. 106 on page 98.
Replacing light bulbs for fog lights
Fig. 114
Remove the number plate light / replace the bulb
Read and observe and on page 97 first.
Remove the protective grille and headlight
›
Insert the clamps for removing the full wheel trims into opening
A
» fig. 114.
›
By pulling the hook in direction of arrow
1
remove the protective grille in
the arrow direction
2
» fig. 114.
›
Unscrew the screws
B
with the screwdriver from the tool kit.
100
Do-it-yourself
