Fuses in the dashboard

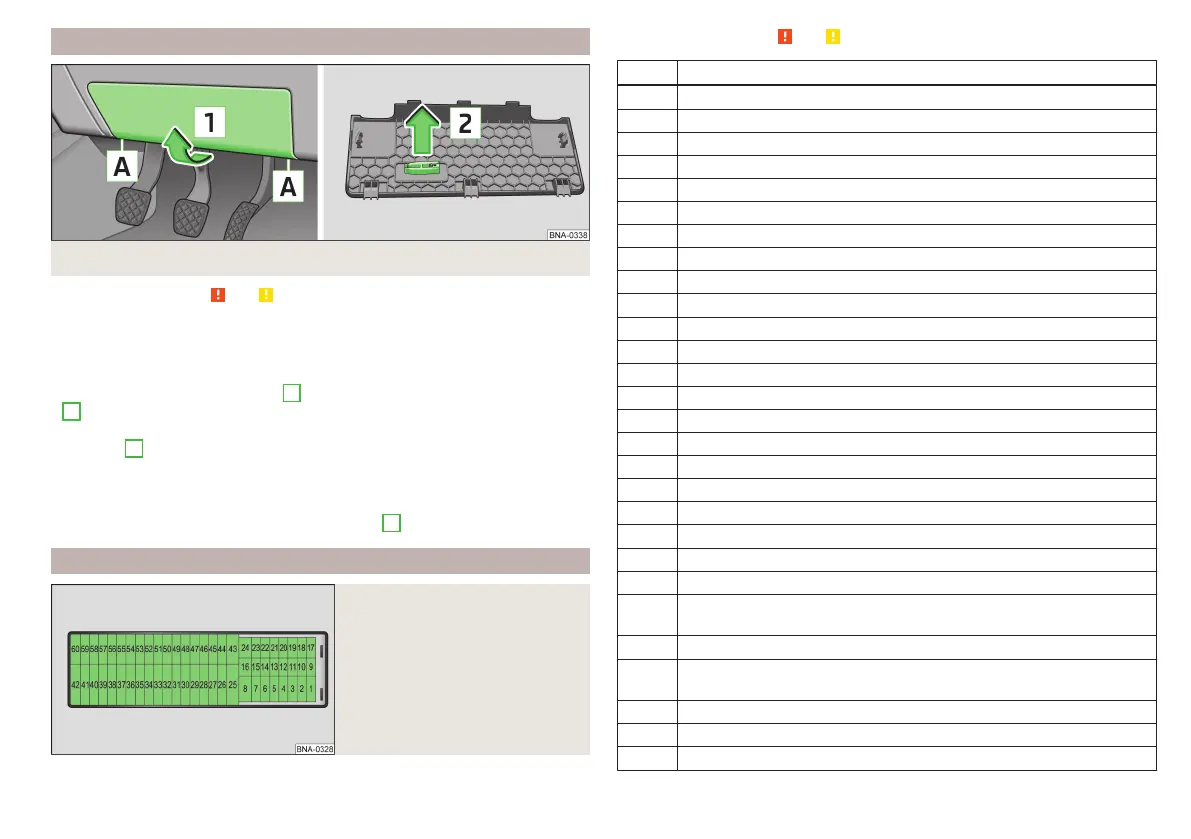

Fig. 102 Removing the fuse box cover/plastic clip for fuses
Read and observe and on page 94 first.
The fuses are located on the underside of the dash panel behind a cover.
Replacing fuses
›
Remove the ignition key, turn off the lights and all electrical consumers.
›
Grip the fuse box cover at point
A
and remove it in the direction of arrow
1
» fig. 102.
›
Remove the plastic clip from the holder in the fuse box cover in the direction
of arrow
2
.
›
Use the clip to pull the fuse out, then insert a new fuse.
›
Return the clip to its original place.
›
Insert the top edge of the cover into the dash panel first.
›
Push the lower edge of the cover in the region
A
.
Fuse arrangement in the dashboard
Fig. 103
Fuses
Read and observe and on page 94 first.
No. Power consumer
1 Not used
2 Lever under the steering wheel, windscreen washer system
3 Engine control system, fuel pump
4 Multifunction steering wheel
5 Not used
6 Not used
7 Button lighting, license plate light
8 Not used
9 ABS or ESC, ASR, engine components
10 Infotainment
11 Headlamp levelling, instrument cluster, sound generator
12 Heating of the external mirror
13 Automatic gearbox
14 Airbag
15 Not used
16 Parking aid
17 Windscreen washer system
18 Rear fog light
19 Radio / Infotainment, ignition
20 Instrument cluster, steering angle sensor
21 Interior lighting
22 Diagnostic socket, air-conditioning system, rain sensor, parking light
23
On-board power supply control system, engine control system, au-
tomatic transmission
24 Not used
25
Interior mirror with automatic dimming, radiator fan, diagnostic con-
nection
26 Air conditioning, air pressure sensor, power steering
27 Reverse light switch
28 Lambda probe, Engine components
95
Fuses and light bulbs
