No. Power consumer
29 Engine components
30 Engine components
31 Engine components
32 Engine components
33 Clutch pedal switch, brake pedal switch, radiator fan
34 Main beam
35 Not used
36 Radio / Infotainment
37 Not used
38 Automatic gearbox
39 Low beam – right side
40 Air blower for air conditioning/heating
41 Rear window wiper
42 12-volt power outlets
43 Turn signal lights, brake lights
44 Alarm
45 Fuel pump
46 Horn
47 Windscreen wipers
48 Central locking system
49 Reverse light switch
50 Electric windows - Driver side
51 Electric window - front passenger side
52 Electric windows - Rear doors
53 Rear window heater
54 Fog lights
55 Not used
56 Not used
57 Parking light- left side
58 Parking light- right side
No. Power consumer
59 Low beam – left side
60 Dayt. r. light
Fuses in the engine compartment

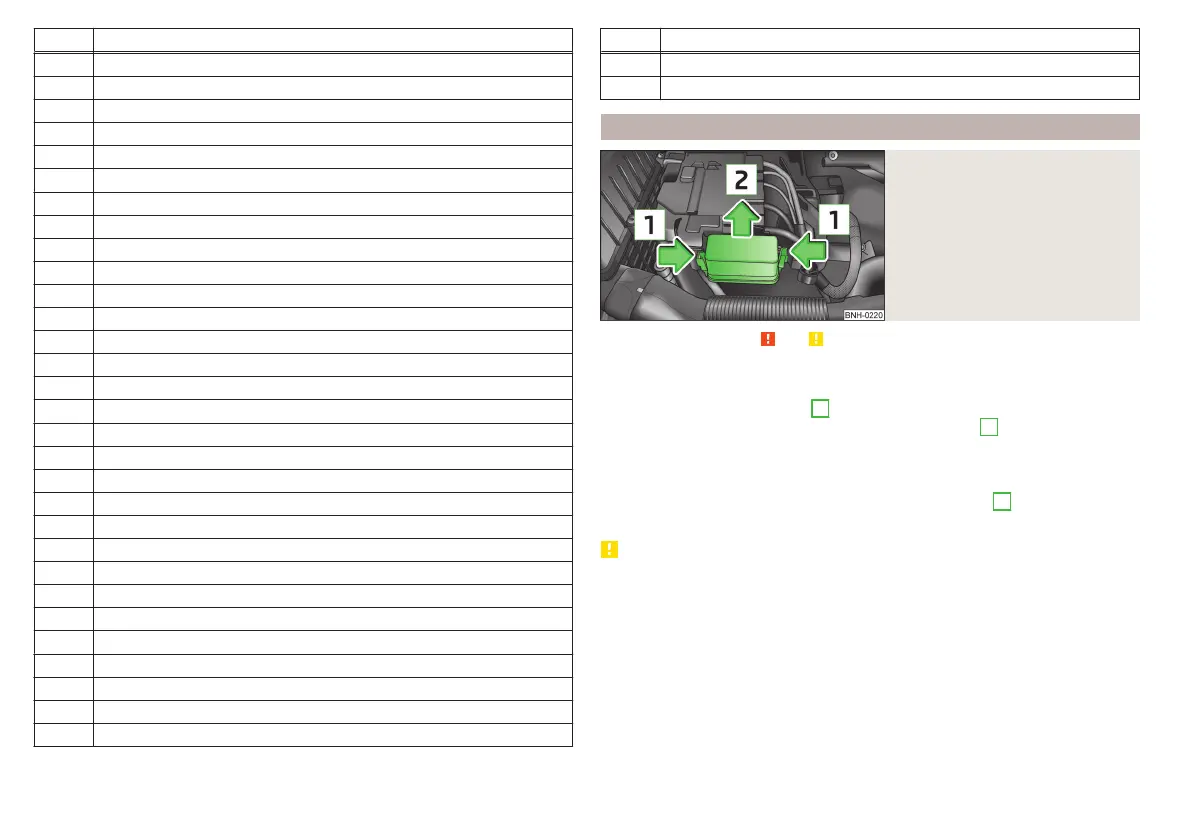

Fig. 104
Remove the fuse box cover
Read and observe and on page 94 first.
Replacing fuses
›
Remove the ignition key, turn off the lights and all electrical consumers.
›
Press together the interlocks
1
of the cover simultaneously» fig. 104 and
press the cover upwards in the direction of the arrow
2
.
›
Remove the plastic clip from the holder on the cover of the fuse box in the
dashboard.
›
Replace the defective fuse.
›
Position the cover away from the direction of the arrow
2
until it clicks.
›
Slow away the bracket in its original place.
CAUTION
The cover of the fuse box in the engine compartment must always be used
correctly, otherwise water may penetrate into the fuse box – there is a risk of
damage to the vehicle!
