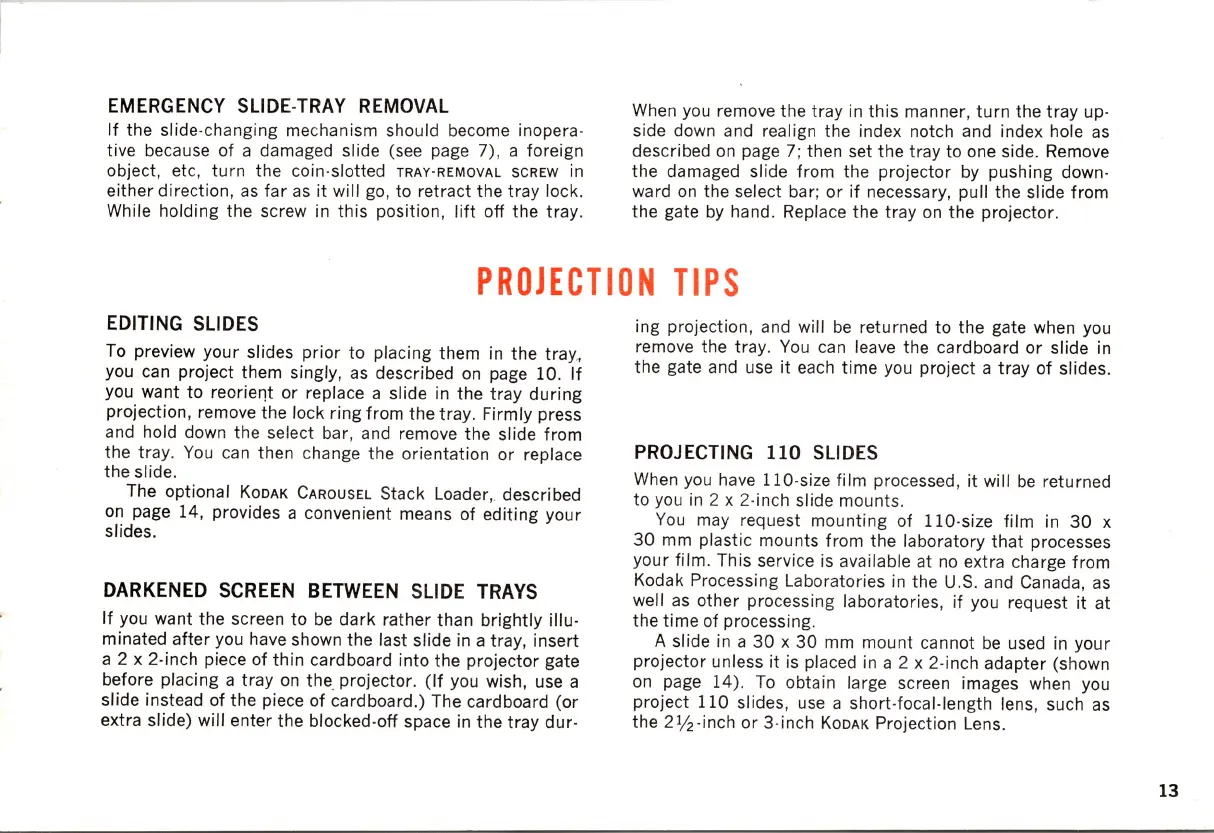

EMERGENCY SLIDE-TRAY REMOVAL
If the slide-changing mechanism should become inopera-
tive because of a damaged slide (see page 7), a foreign
object, etc,
turn the coin-slotted TRAY-REMOVAL SCREW in
either direction, as far as it will go , to retract the tray lock_
While holding the screw
in this position, lift off the tray_
When you remove the tray in th is manner, turn the tray up-
side down and realign the index notch and index hole
as
described on page 7; then set the tray to one side_ Remove
the damaged slide from the projector
by pushing down-
ward
on the select bar; or if necessary, pull the slide from
the gate
by hand_ Replace the tray on the projector.
PROJECTION TIPS
EDITING SLIDES
To preview your slides prior to placing them in the tray.,
you can project them singly,
as described on page 10. If
you want to reoriellt or replace a slide in the tray during
projection, remove the lock ring from the
tray _ Firmly press
and hold down the select bar, and remove the slide from
the tray.
You can then change the orientation or replace
the slide.
The optional
KODAK CAROUSEL Stack Loader, described
on page 14, provides a convenient means of editing your
slides.
DARKENED SCREEN BETWEEN SLIDE TRAYS
If you want the screen to be dark rather than brightly illu-
minated after you have shown the last sl ide in a tray, insert
a 2 x 2-inch piece
of thin cardboard into the projector gate
before placing a tray
on the_ projector. (If you wi sh , use a
slide instead of the piece
of cardboard.) The cardboard (or
extra slide) will enter the blocked-off space in the tray dur-
ing projection, and will
be returned to the gate when you
remove the tray. You can leave the cardboard or slide in
the gate a nd use it each time you project a tray of slides.
PROJECTING 110 SLIDES
When you have 1I0 -size film processed, it will be returned
to you
in 2 x 2-inch slide mounts.
You may request mounting of 110-size film in 30 x
30 mm plastic mounts from the laboratory that processes
your film. This servi
ce is available at no extra charge from
Kodak Processing Laboratories
in the U.S. and Canada, as
well as other processing laboratories, if you request it at
the time of processing.
A sl id e in a 30 x 30 mm mount cannot be used in your
projector unless it is placed
in a 2 x 2-inch adapter (shown
on page 14). To obtain large screen images when you
project 110
sl ides, use a short-focal-Iength lens, such as
the 2
1
/
2
-inch or 3-inch KODAK Projection Lens.
13
