[11] Install the FAN CAP 232729 in the PHOTOCELL
HOUSING.
[12] Manually move the CLAMP PAD ASSEMBLY until the TAB is in the NULL position.
Warning
Dangerous Voltage
[13] Connect the main power.
Important
It is necessary to make a FAN COVER TOOL. See the Tools section.
[14] Install the FAN COVER TOOL over the FAN area and the LAMP MODULE. See the Tools section.
[15] Install and hold the AUTO FOCUS TARGET SLIDE TL-3002 until it is fully seated in the GATE MECHANISM.

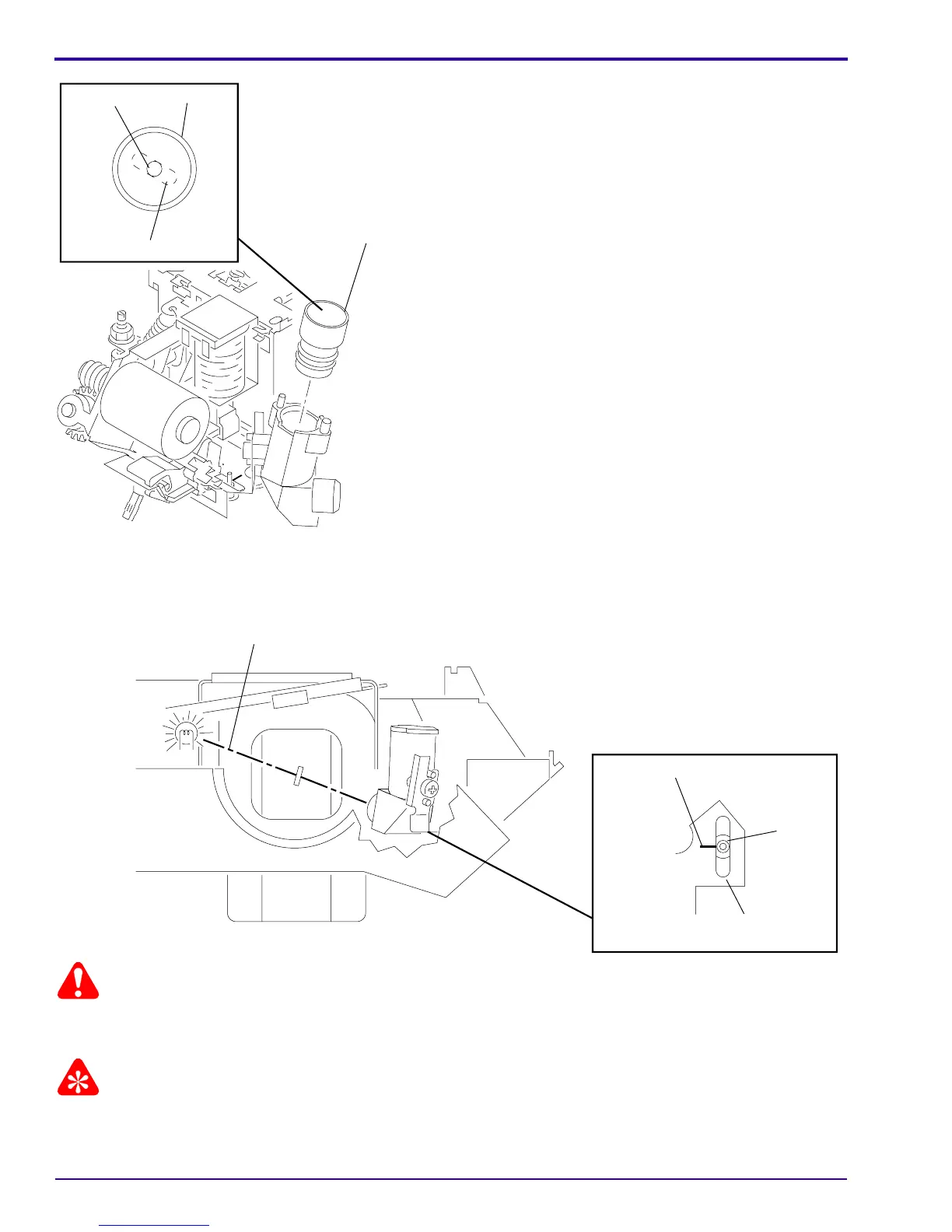

A091_4033GA
light image
hole
FAN CAP
A091_4033GCA
FAN CAP
A091_4027BA
A091_4027BCA
light path
PAD
CLAMP LEVER
TAB
NULL position
