Overview
2011-09-09 2G0733 1-3

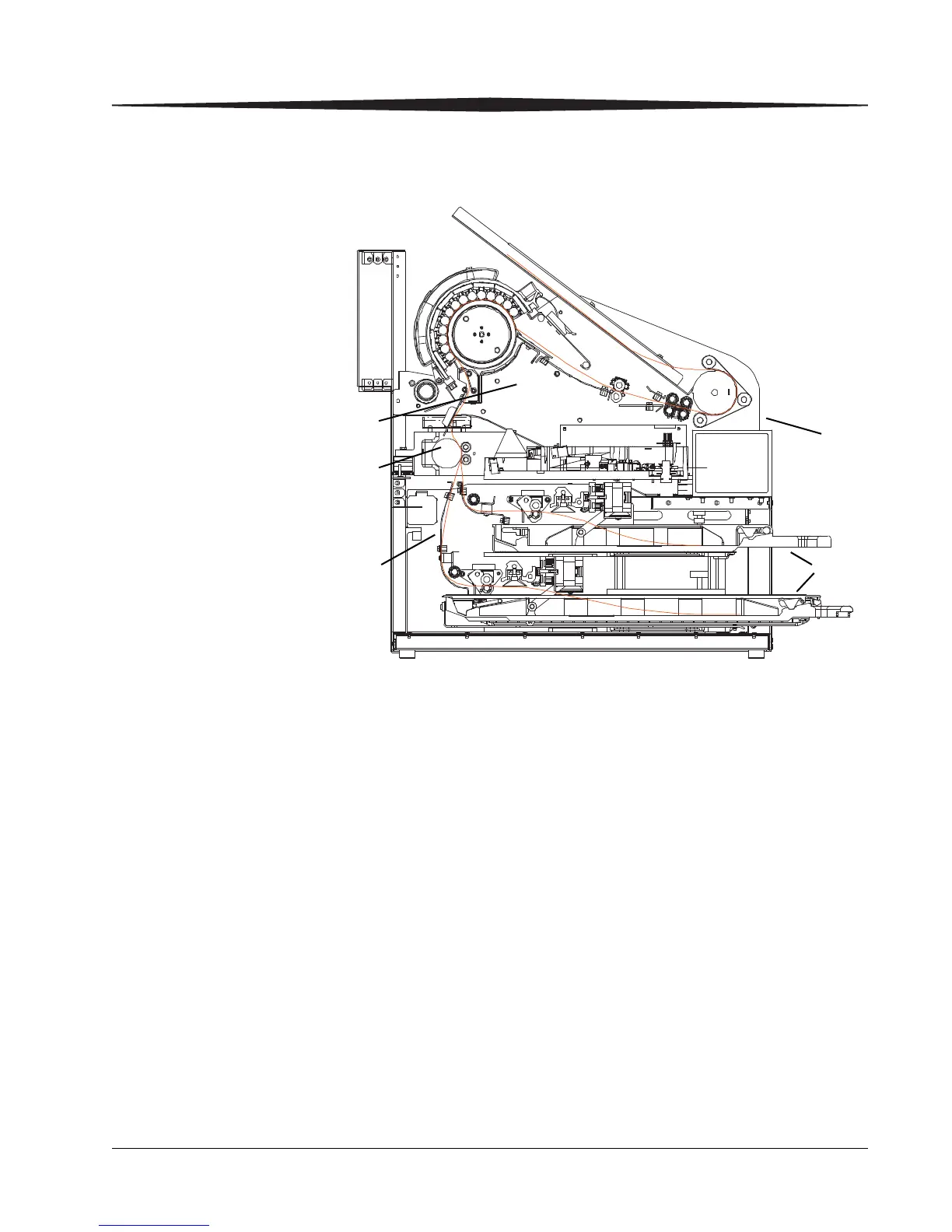

System Components
1 Film trays. Your imager is configured with two film trays. Each
film tray holds a different size of film. Both film trays must be
installed in order for the imager to operate.
2 Film feed transport. The film feed transport orients and centers
the film while moving the film from the film tray to the imaging
portion of the imager.
3 Film imaging. The optics module writes the image onto the film
while the film is moved through the exposure transport area.
4 Film processor. The film processor uses heat to develop the
image written onto the film by the laser in the optics module.
5 Local panel. The local panel contains the display screen.
