Operator’s Guide 35
Chapter 3. Printer Maintenance
Filter Replacement
Replace Dry Shutdown Valve Filter
On the PIC box, replace the dry shutdown valve (vacuum bleed) filter as
necessary, so that the PIC box continues to operate correctly.
Turn off the print station before the air filter is replaced. Damage to the
PIC box from dust can occur.
1. Do “Turn Off the Print Station” on page 16.
Pinch hazard can cause damage to hands and fingers at these places:
• Between two buckets
• Between outer most bucket and bucket frame on the left side
• Between inner most bucket and bucket frame on the right side
2. If necessary, pull out the carriage rail (Figure 28).
a. Rotate the lock handles counterclockwise.
b. Pull out the carriage rail to the service position.

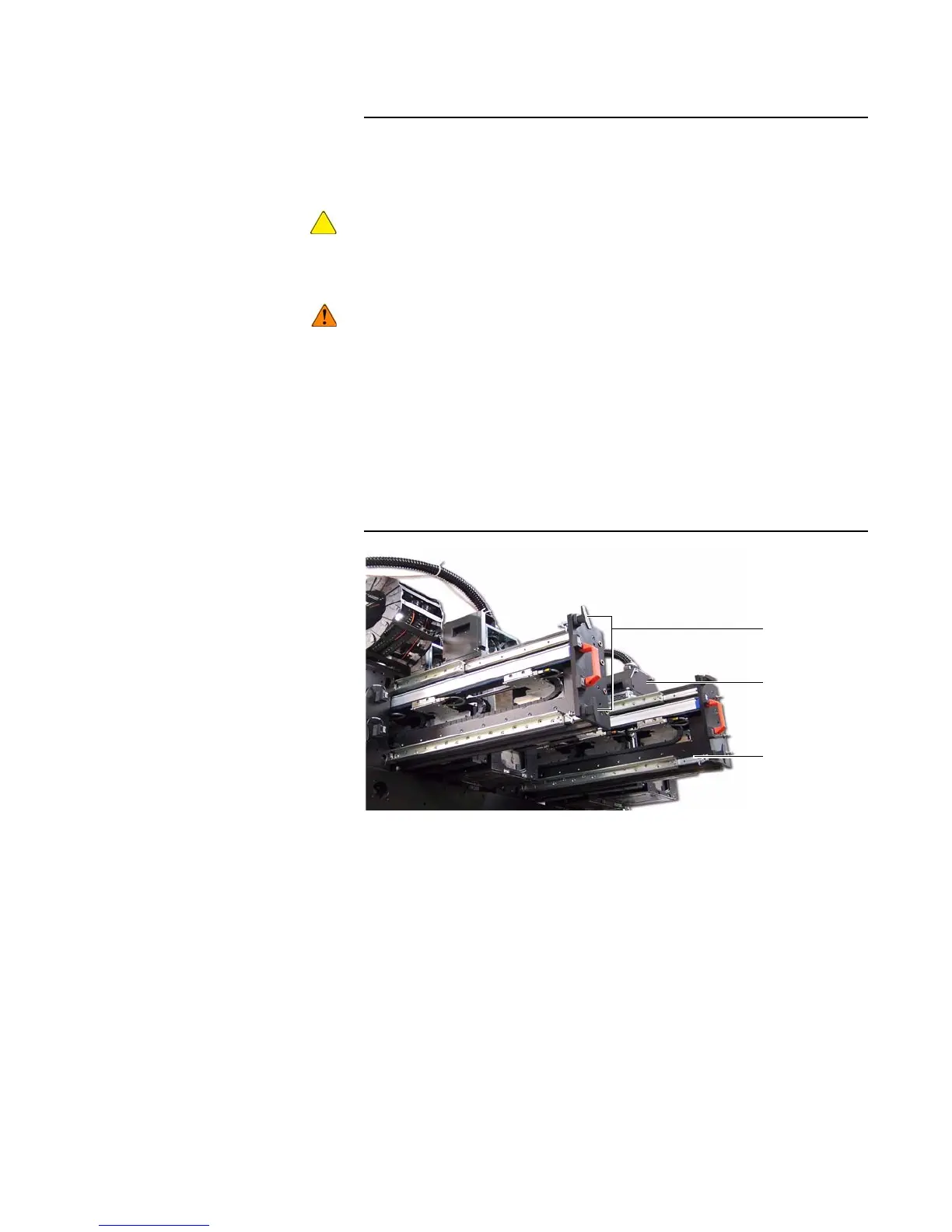

Figure 28 Carriage rail
Carriage rail
PIC box
Lock handles
