System Configuration CVS-126
x 0093132702-08
System Configuration

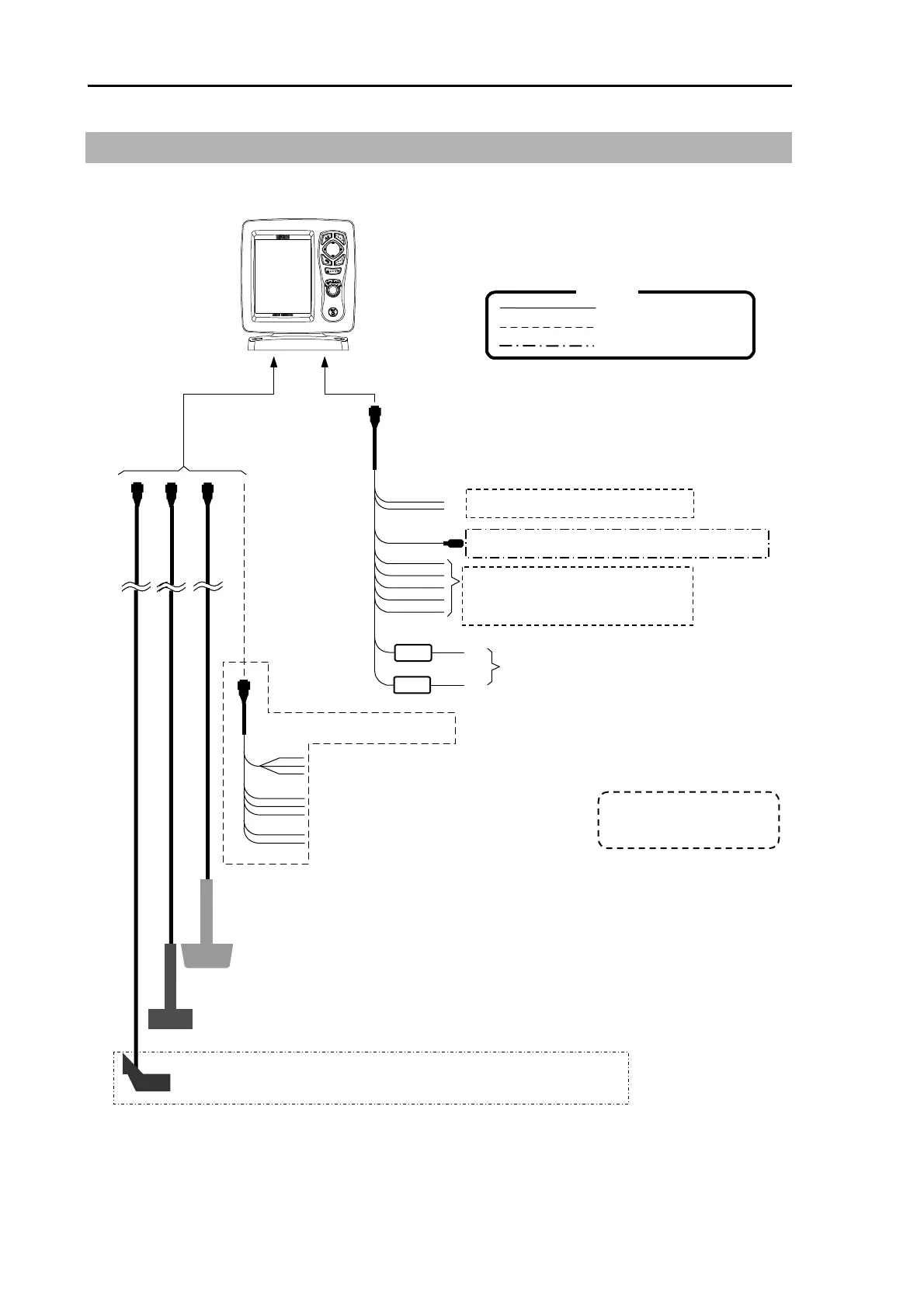

Connection Diagram
CW-264A-2M
CVS-126 echo sounder unit
With mounting bracket and hard cover
External power output (For GPS etc)
External speaker (For speaker with amplifier)
NMEA circuit input output
10.8 to 31.2VDC
Option cable (CW-840-0.3M)
Connection to the Transducer
Connection to the water temperature sensor
Connection to the speed sensor
Transducer TD-500T-3B (Dual frequency combination type 50/200kHz)
Bronze made. Equipped with Through-hull
Transducer TD-500T-2B (Dual frequency combination type 50/200kHz)
Plastic made. Equipped with Inner-hull
Note: To use the water temperature sensor / speed sensor,
the wiring of transducer connector has to be changed.
To Transducer
To POWER connector
Red
Black
Water temperature sensor
/ speed sensor
ST/80/90/100
connector
(TD connector)
Legend
Standard configuration
Option
+
-
External navigation equipment,
external water temperature mete
Owner supply
Transducer P66 (Dual frequency combination type 50 / 200 kHz)
Plastic made. Equipped with Transom. (Owner supply)
To Next Page
