Chapter 5 Installation CVS-126
5-4 0093132702-08

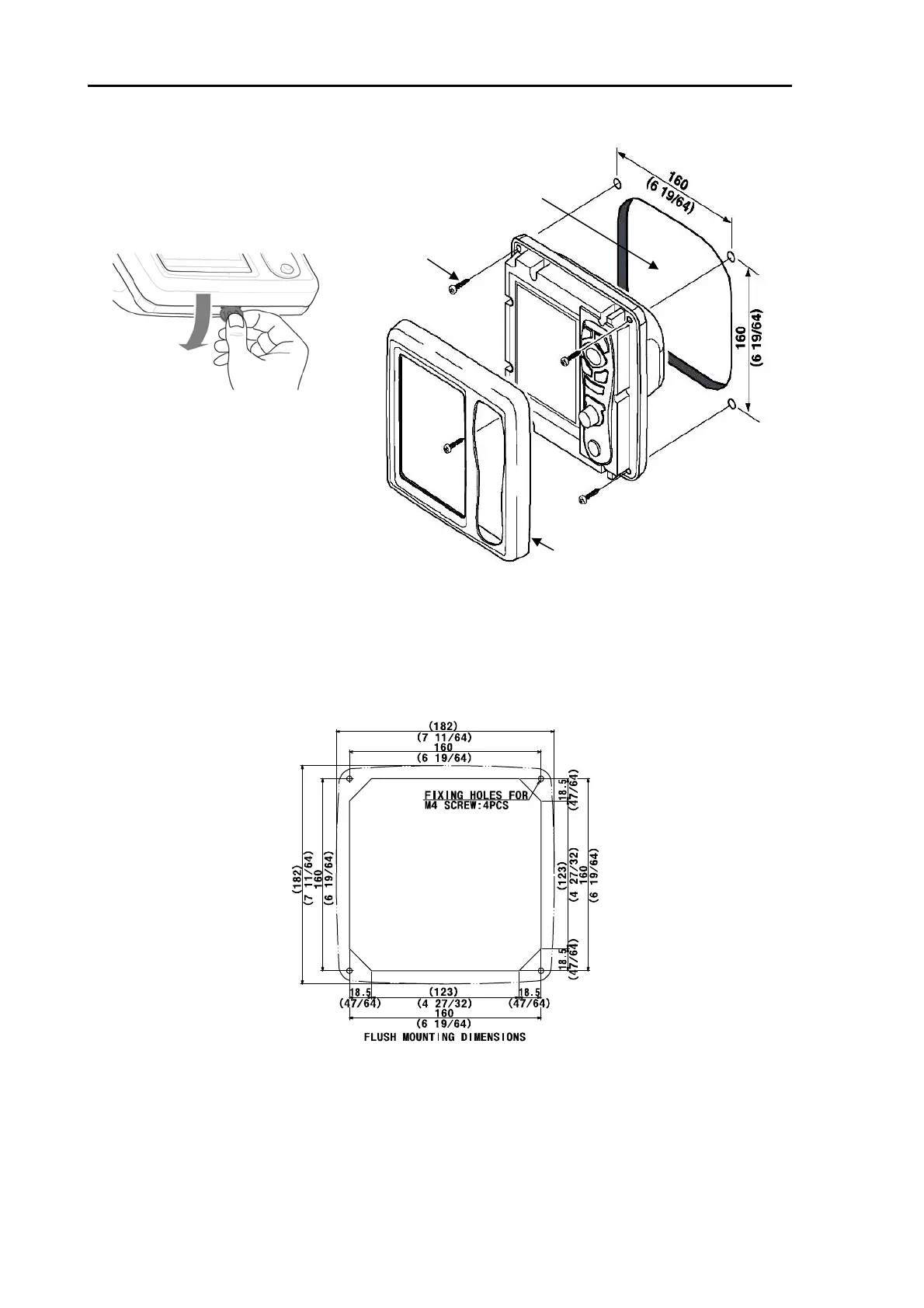

Figure 5.3 Flush-mount Installation
Figure 5.4 Work of flush-mount installation hole
Unit: mm (inch)
Front frame
Threading hole
160 (6 19/64) x 160 (6 19/64)
R30
Screw 4mm x 4 pieces
*Not supplied
Unit: mm (inch)
