②To cut tube without slit

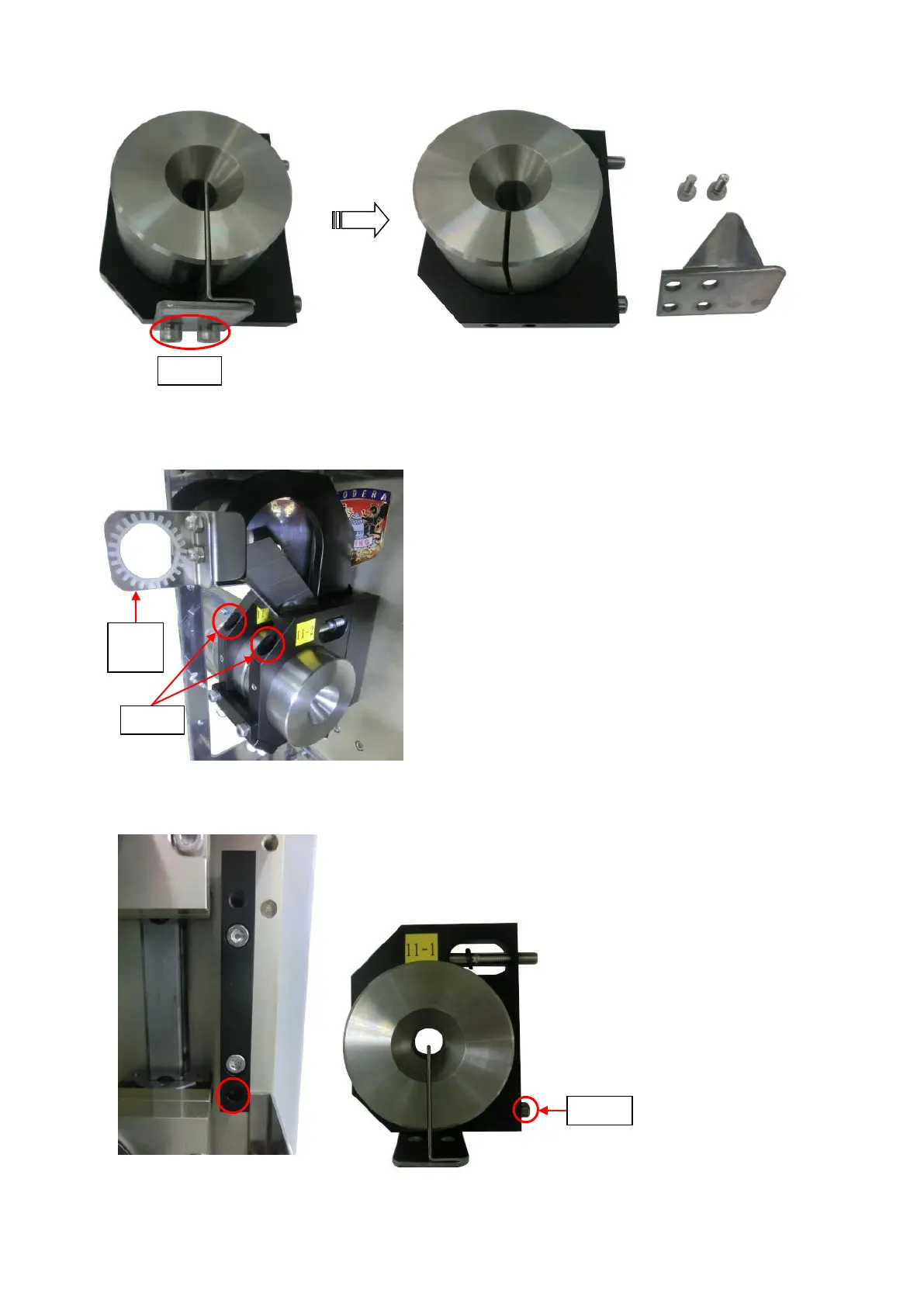

1. Prepare Guide #1-3 in accordance with a size of tube to be processed.
If "Guide No. 1 vertical guide" is attached, remove screw B.
2. Attach the Blade cover ( magnetic )
"Guide No. 2 and Guide No. 3" are located near the
cutting blade, so attach the "blade cover" when working.
3. Remove Guide #1-3 with screw A.
4. Set another Guide #1-3 with screw A.
5. Set another Guide #1-3 with screw A.
Insert the "set pin" into the hole below and tighten the screw A.
