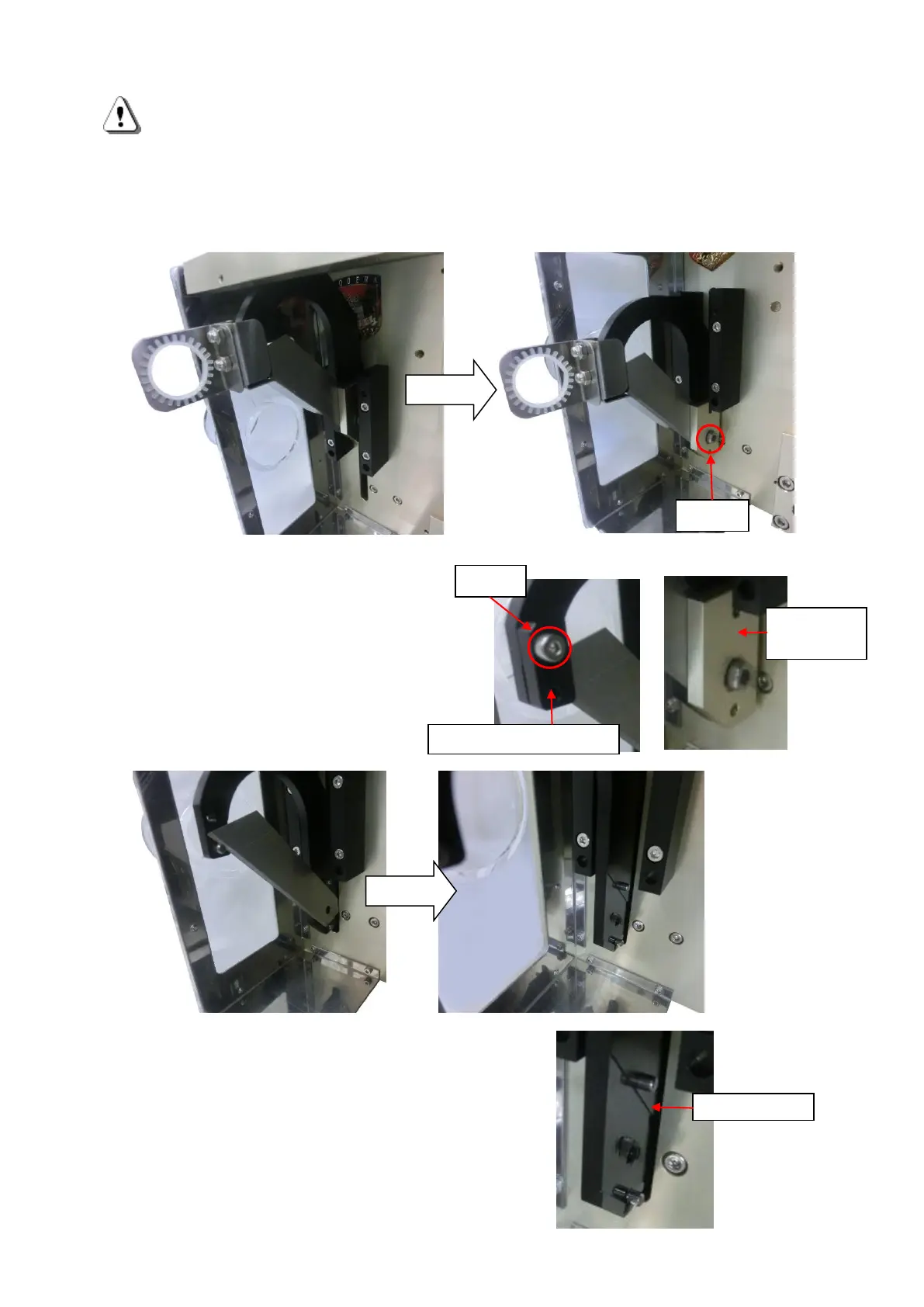

9. To replace blades
Be cautious when handling blade.
1. Attach the "Blade Cover".
2. Remove the Guide #2 and #3. Be careful not to be injured with the cutting blade.
3. Remove the air-coupler and evacuate the air.
4. Lower the [Blade block] and remove the screw E.
5. Remove the [Blade cover] and remove the screw F.
6. Remove Blade setting plate(small) w/screw E and
remove Blade setting plate (big) w/screw F.
7. Remove the cutting blade.
Setting
8. There is a shallow dent of the blade size on the blade block.
Fit the blade on the dent.
9. Fix the [Cutting Blade] and [Blade setting plate].
10. Connect the air.
11. Fit on the [Blade Cover].
12. Fix the Guide #2 and #3 with Screw A.
