4. Guide replacement
Make sure that the power switch of operation panel is off.
Put blade cover on when replacing guide. Serious injury may result.

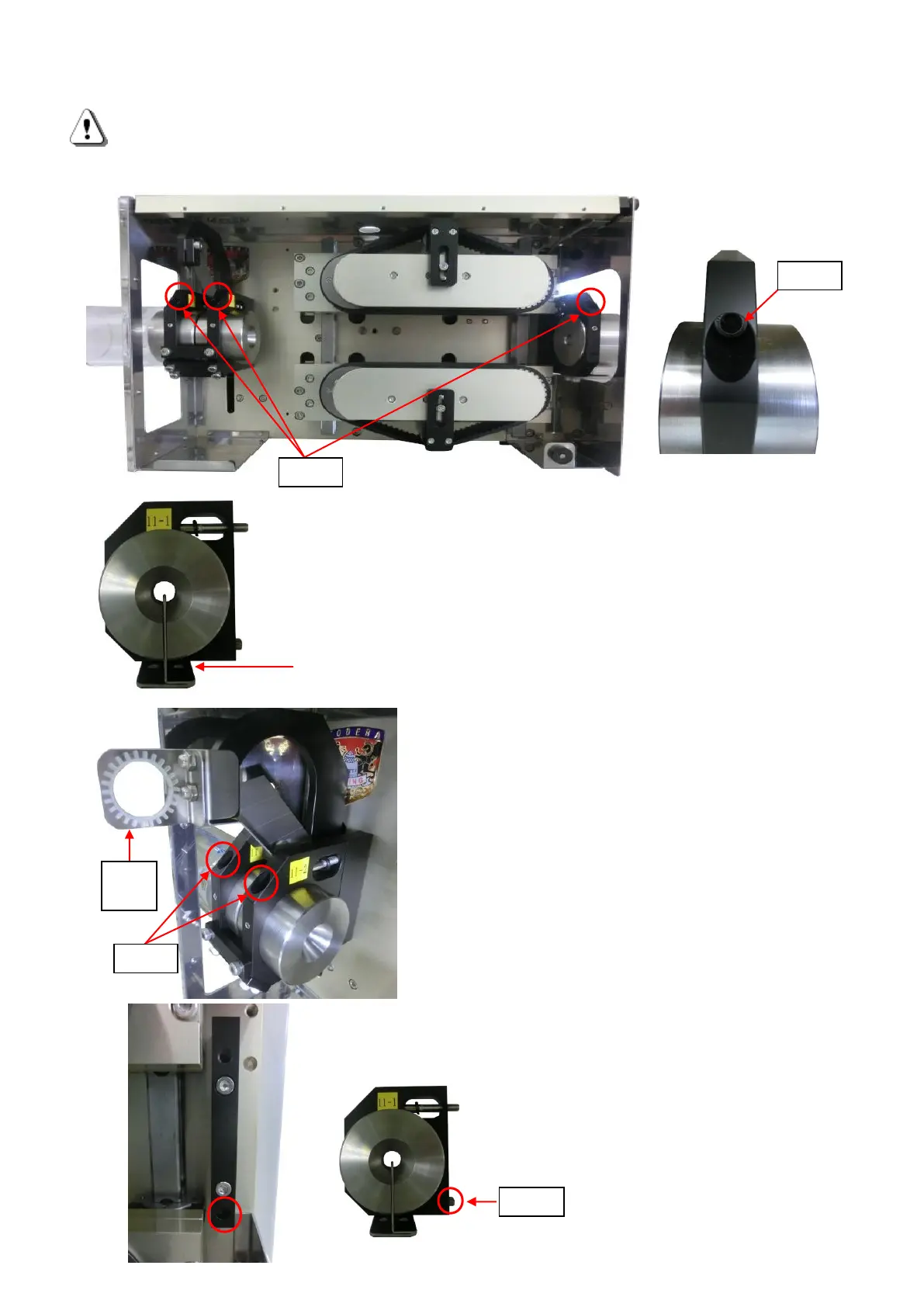

①To cut tube already with slit
1.Prepare Guide #1,2 and 3 in accordance with a size of tube to be processed.
The vertical guide is attached only to guide No.1.
2. Attach the Blade cover ( magnetic )
"Guide No. 2 and Guide No. 3" are located near the cutting blade,
so attach the "blade cover" when working.
3. Remove Guide #1-3 with screw A.
4. Set another Guide #1-3 with screw A.
Insert the "Set pin" into the hole below and tighten the screw A.
