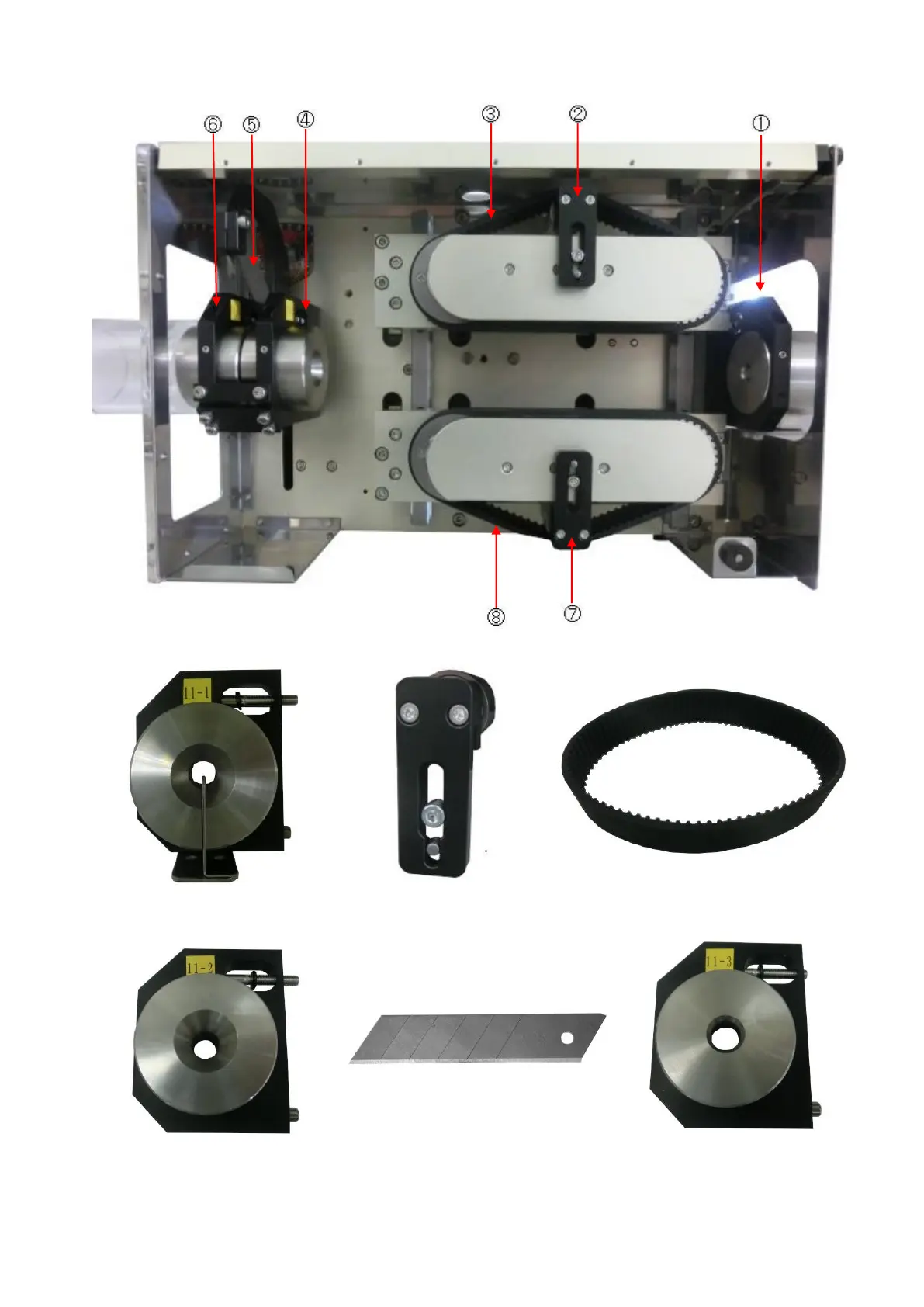

3. Description of front mechanism
①Guide #1
③Upper belt
⑧Lower belt
②Upper tension
⑦Lower tension
④Guide #2
⑤Cutting blade
⑥Guide #3
