③To cut and slit tube
1. Prepare appropriate one Guide #1 and #3 in accordance with a size of the tube to be processed.
2. Remove Vertical guide on Guide #1 .
3. Attach the "blade cover" and remove guides No.1 to No.3.
4. Set another Guide #1 and #3.
5. Please prepare a "Slit guide
pipe" that matches the inner
diameter of the corrugated
tube to be processed.
Be cautious when handling the guide pipes, which have blades.
6. Attach the "Slit guide pipe" to the "Set pin" between the belts of the main body.

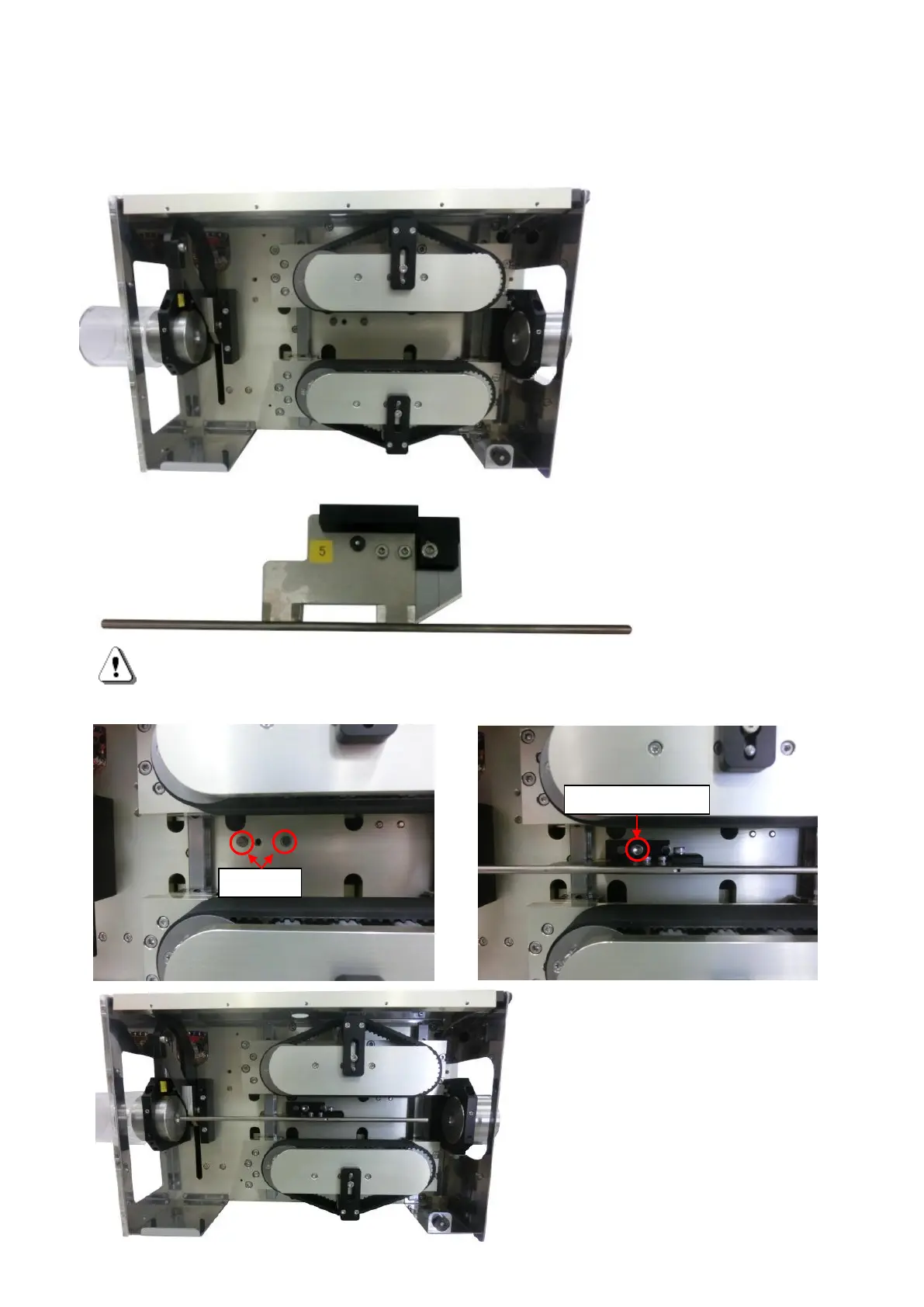

7. Please do as shown in the photo on the left.
