ＡＣＴ－Ｎ０２Ｅ－１
8
CAUTION ON WIRING WORK
6. WIRING
6-1 Cables
Power cable

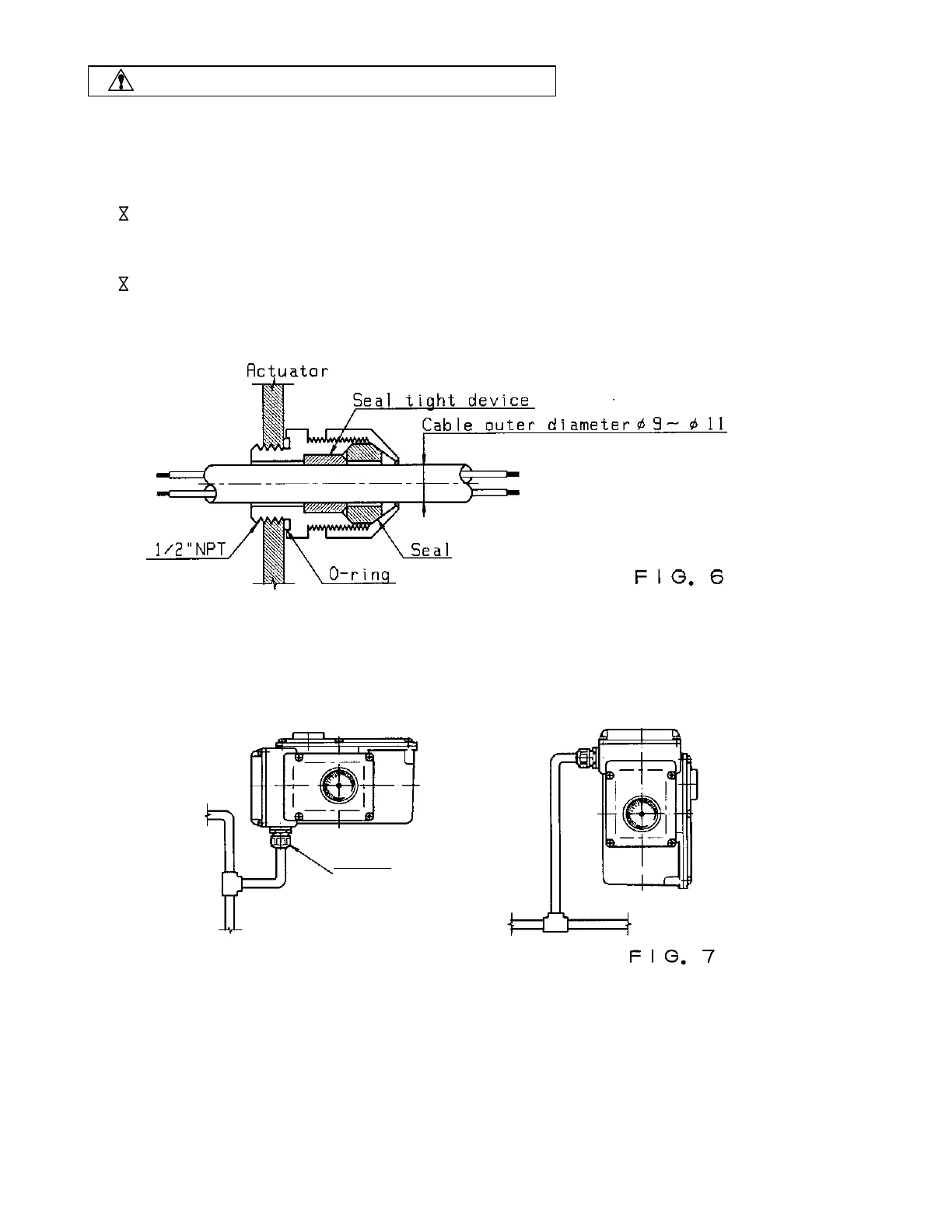

Use a Φ9~11mm (outside diameter) cable for the standard resin connector. (See FIG.6)
For customer connectors, use a proper size cable to match the connector preventing water ingress to the unit.
Signal cable
Use a sealed cable for signal wiring.
Do not make parallel wiring with power cable.
6-2 Water prevention
Make sufficient water prevention if vinyl tubes or conduits are used. (See FIG.7)
Note: Conduit not supplied. Seal the cable tightly preventing moisture penetration.
body
( Top )
( Bottom)
Branch
( Top )
( Bottom)
Branch
Conduit
