CAUTION ON USE
9. CONTROL PACK

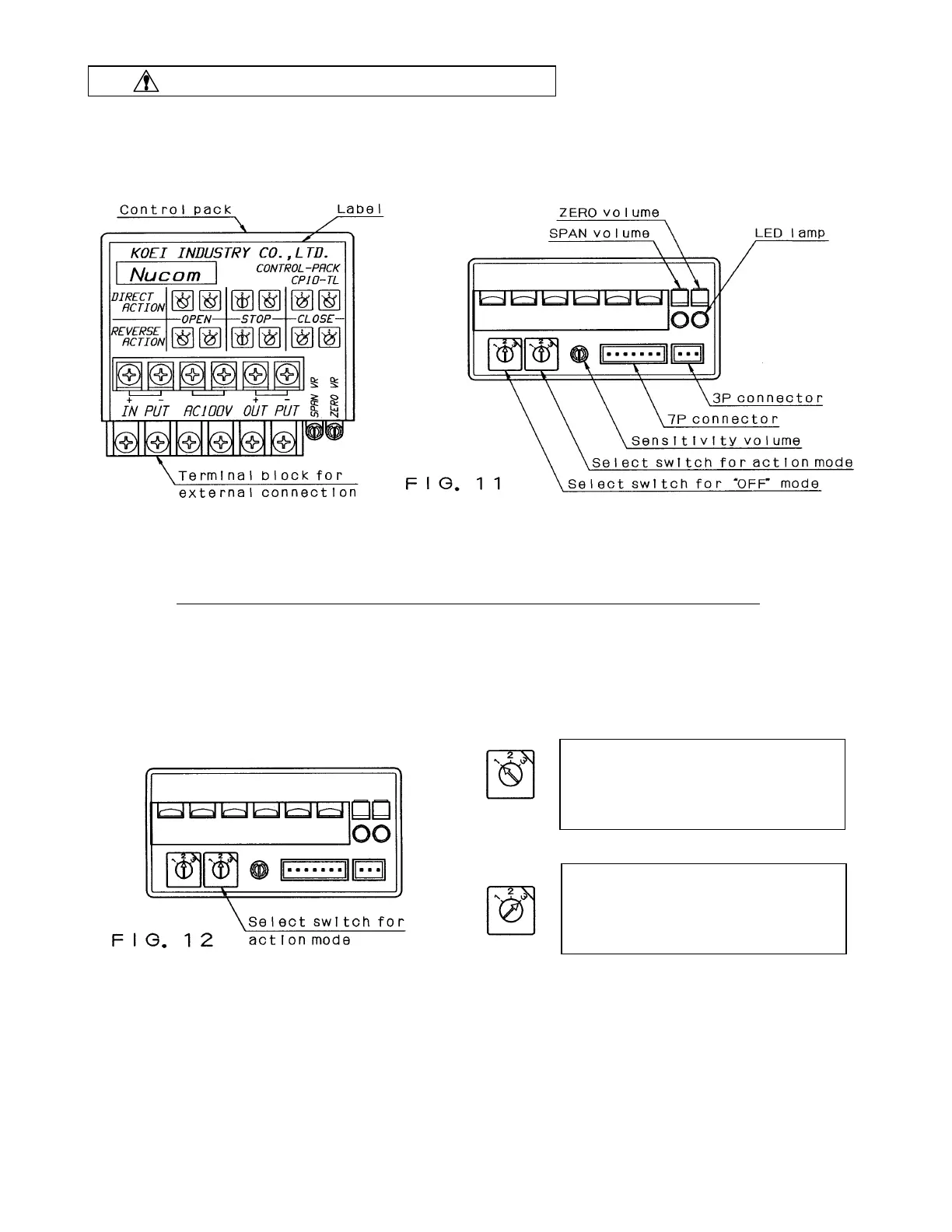

9-1 Names of parts
(Note) The packs with green labels or with Serial No, “SP0000” marked on the side are fitted with an exterior type
250 Ω resister, and no need to be connected.
Take special care when wiring actuator. AC connectors are in the middle of terminal strip
.
9-2 Direction mode
Either direct or reverse action is selectable at this switch.
1 = Direct action
Input signal 20mA --- Close
Input signal 4mA --- Open
3 = Reverse action
Input signal 4mA --- Close
Input signal 20mA --- Open
