TP-6161 1/1246 Section 5 Generator Set Reconnection

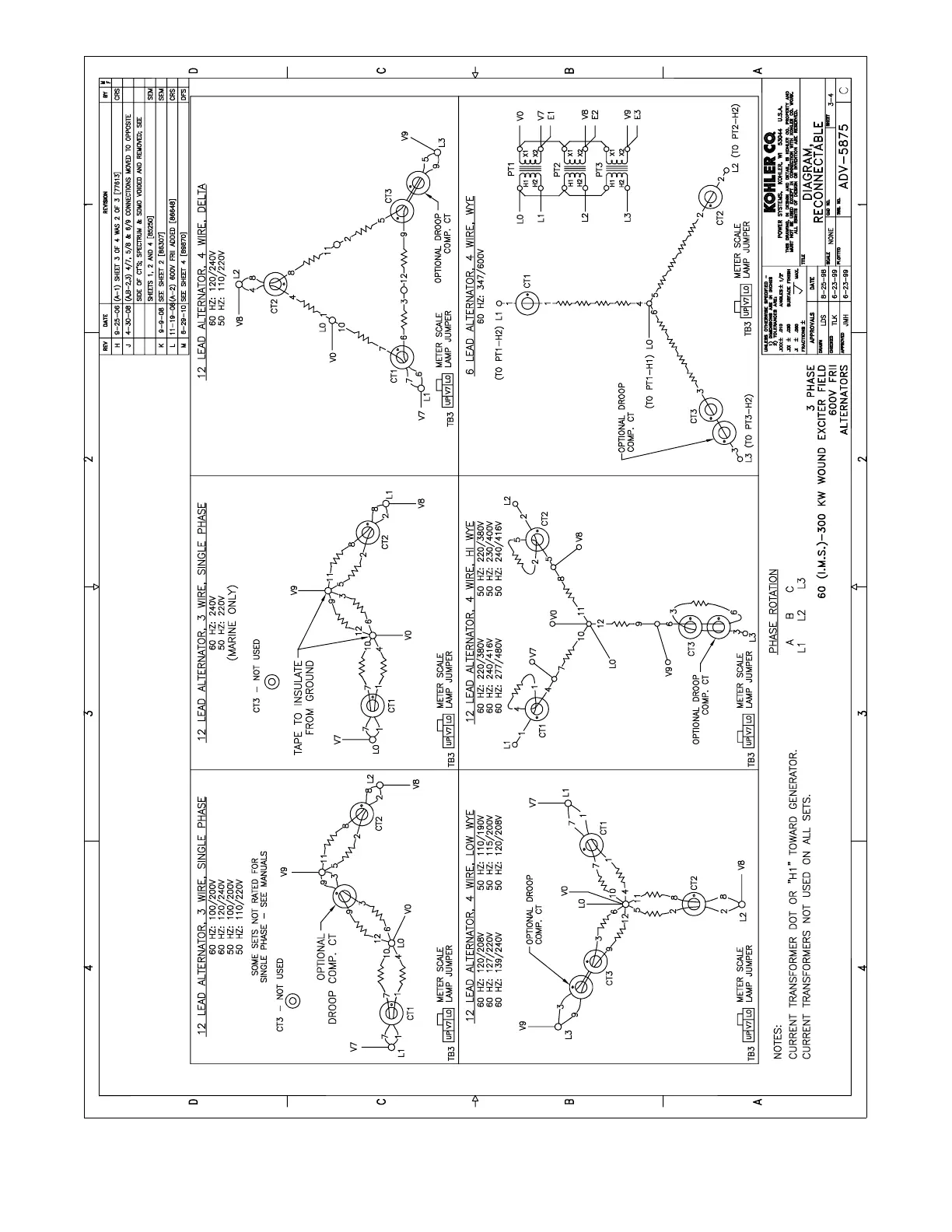

Figure 5-3 60 (with Oversize Alternator)--300 kW Wound Field Alternators, ADV-5875C-M
