TP-6161 1/1264 Section 6 Accessories
6.1.18 Ten-Relay Dry Contact Kit
(DEC 3+)
The ten-relay dry contact kit provides normally open and
normally closed contacts in a form C configuration to
activate warning devices and other user-provided
accessories allowing remote monitoring of the
generator set. Connect any controller fault output to the
ten-relay dry contact kit. Typically, lamps, audible
alarms, or other devices signal the fault conditions.

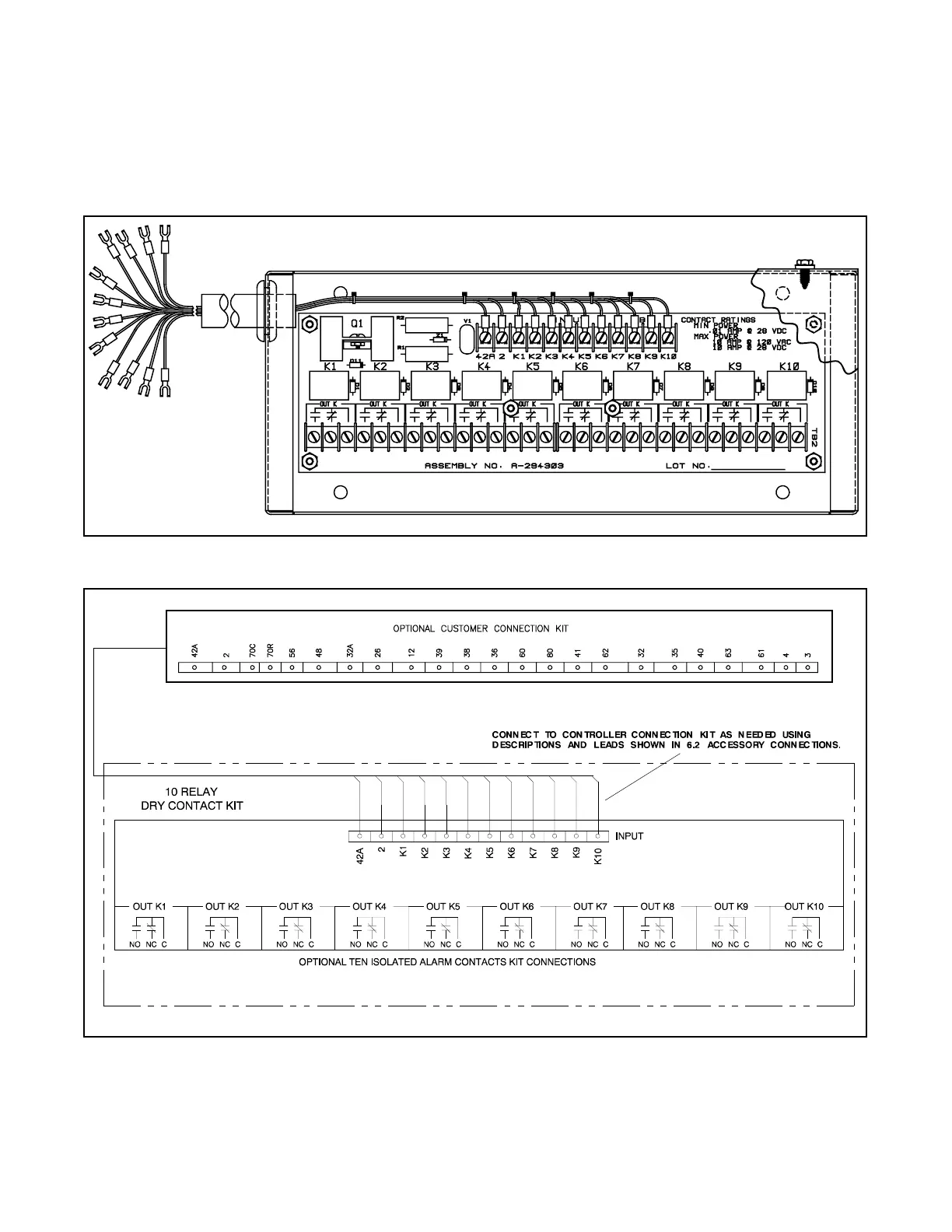

Refer to Figure 6-31 for an internal view of the contact
kit. See Figure 6-32 for electrical connections. See
Section 6.2, Accessory and Prime Power Terminal Strip
Connections, for terminal identification.
A-273936
Figure 6-31 Ten-Relay Dry Contact Kit
GM13984-/354246B-/328912A-H
CONTROLLER CONNECTION KIT MOUNTED IN JUNCTION BOX
Figure 6-32 Ten-Relay Dry Contact Kit Connections
