6.3 Communication Module K it
and Gauge Driver Circuit
Board
When a remote serial annunciator (RSA) is connected to
a Decision-Makerr 3+ controller, a communication
module circuit board is required. See Figure 6-41 for
location and connection.
The communication module circuit board location may
also be occupied by an interface circuit board with
gauge drivers required for some models*. Do not
confuse the function of these circuit boards.
* See the Introduction section and refer to Tech Tools, Engine
Electronic Module (ECM) for the latest applications.
GM32644-E
1. Ribbon cable, 10-position
2. Ribbon cable, 24-position
3. Connector, 6-position
4. Indicator panel board (existing)
5. Communication module circuit board and/or gauge driver circuit board
1
2
3
4
5

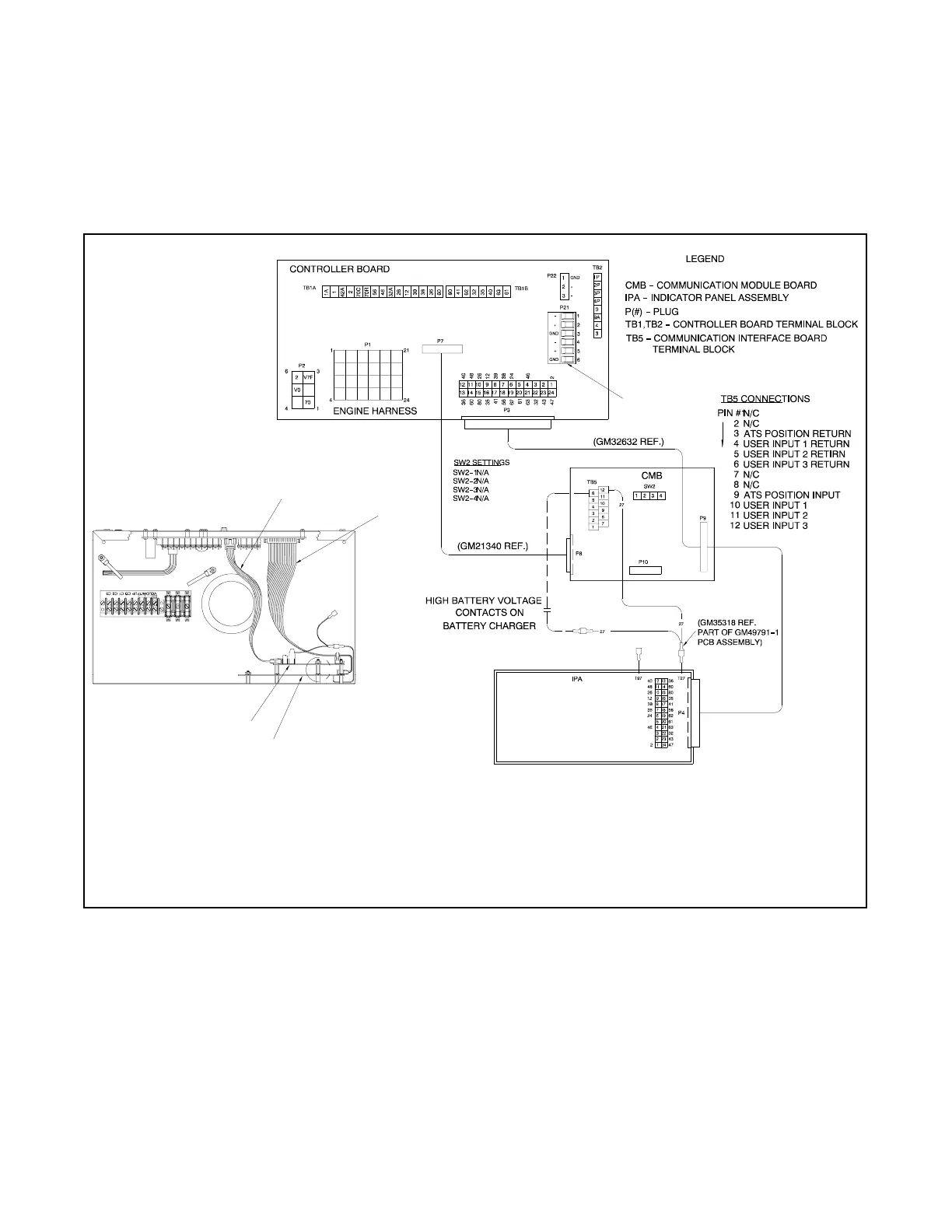

Figure 6-41 Communication Module Circuit Board Location and Connection
