TP-6161 1/1262 Section 6 Accessories
6.1.13 Remote Speed Adjustment
Potentiometer Kit (Non-ECM
Models)
The remote speed adjustment potentiometer kit
provides controller-mounted engine speed adjustment.
The adjustment range is approximately ±5%. Some
applications locate this potentiometer with the
switchgear. This kit requires an electronic governor on
the generator set. See Figure 6-24. See Section 6.2,
Accessory and Prime Power Terminal Strip
Connections, for terminal identification.
BR-273000-C
1

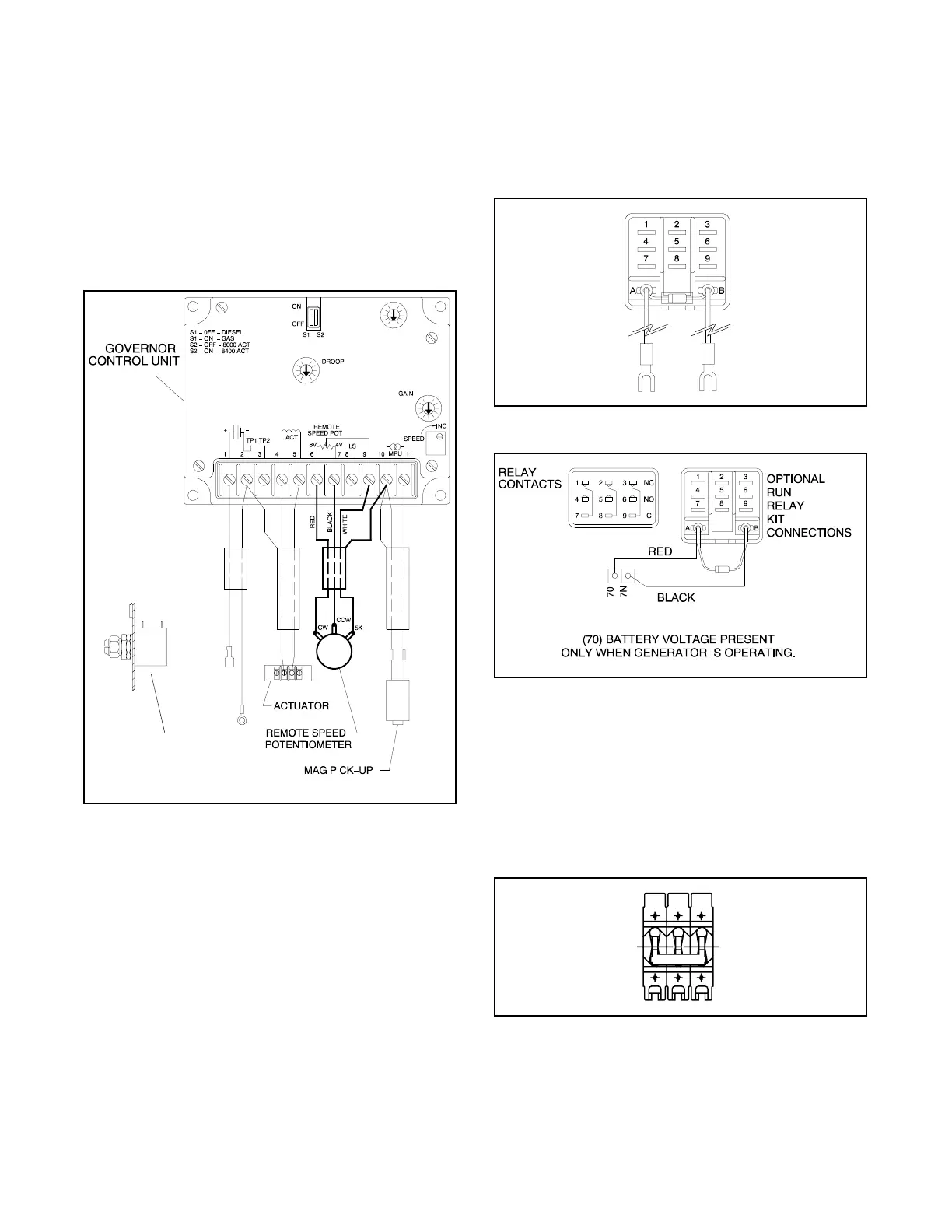

1. Optional Remote Speed Pot
Figure 6-24 Remote Speed Adjustment
Potentiometer Connection, Typical
6.1.14 Run Relay Kit
The run relay kit includes three sets of contacts that
energize only during generator set operation. The run
relay kit can control air intake louvers, radiator louvers,
alarms, and other signaling. See Figure 6-25 and
Figure 6-26.
273705
Figure 6-25 Run Relay Kit
GM16088A-A
TB10
Figure 6-26 Run Relay Connections
6.1.15 Safeguard Breaker
The safeguard breaker senses output current on each
generator phase and shuts off the AC voltage regulator if
a sustained overload or short circuit occurs. It is not a
line circuit breaker and does not disconnect the
generator set from the load. See Figure 6-27.
X-796
Figure 6-27 Safeguard Breaker
