8.15
8
Section 8
Electrical System and Components
15/20/25 Amp Regulated Charging System

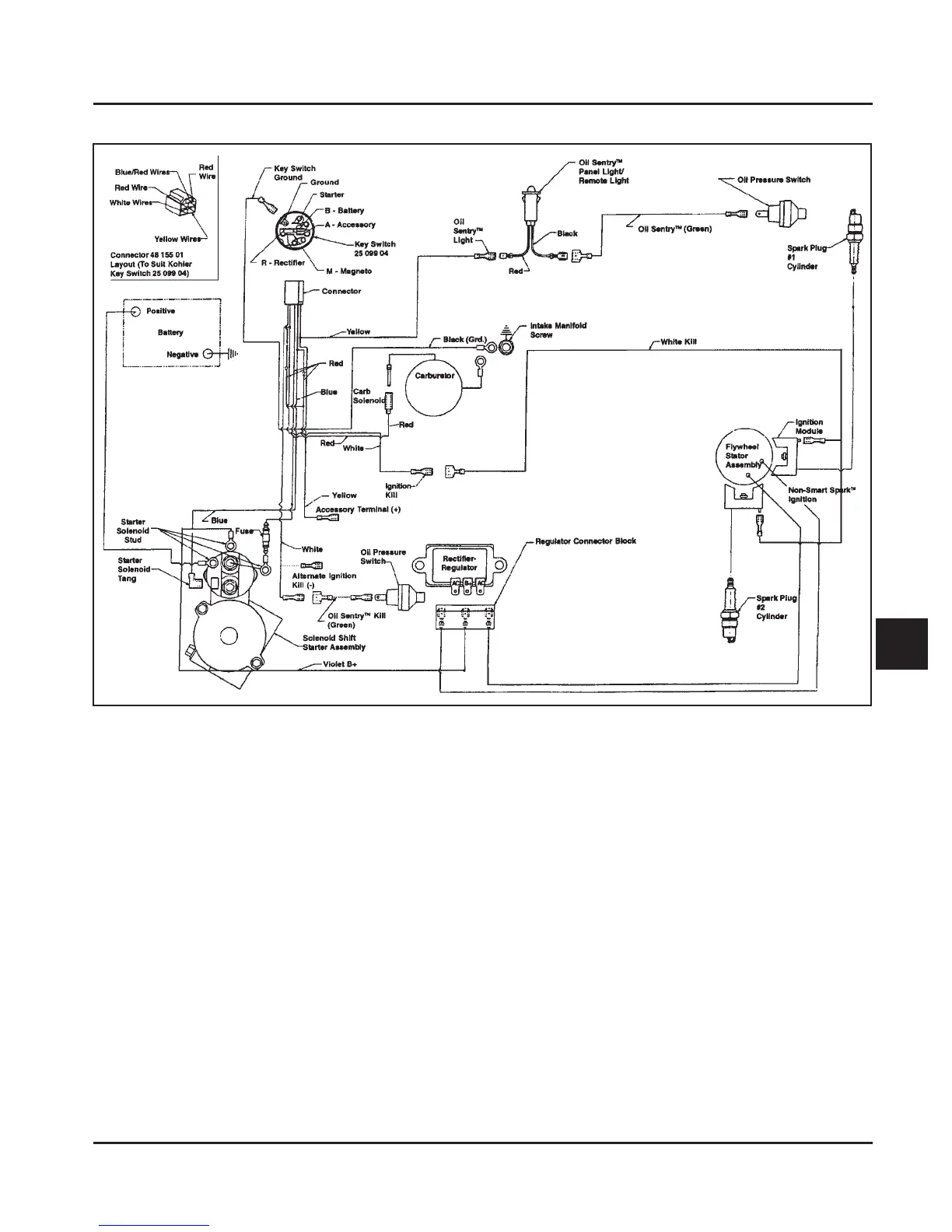

Figure 8-17. Wiring Diagram - 15/20/25 Amp Regulated Battery Charging System with Fixed Timing.
