9.7
Section 9
Disassembly
9
3. Remove the carburetor, throttle linkage and
governor lever as an assembly.

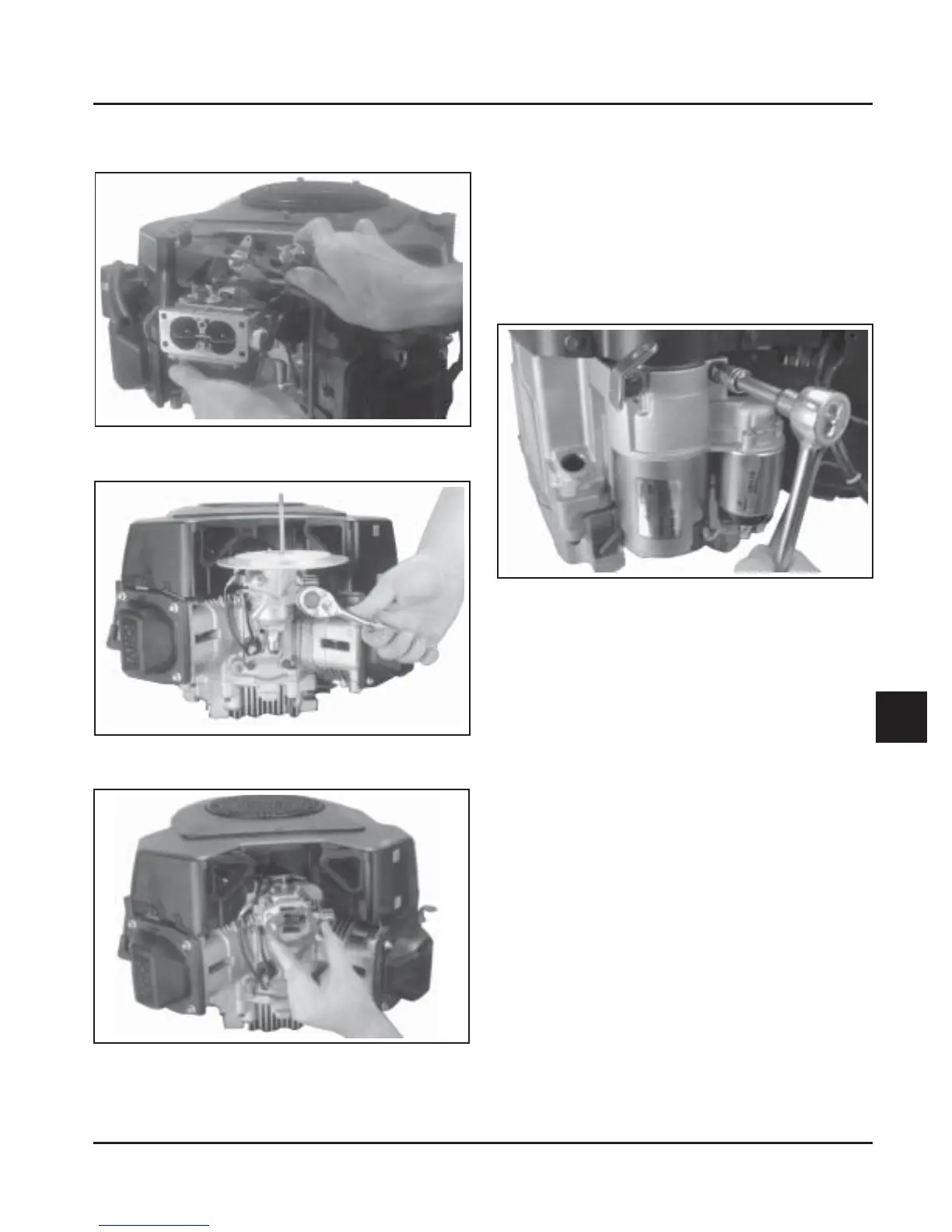

Figure 9-22. Removing Carburetor and Linkage
(Two-Barrel Model Pictured).
Figure 9-23. Removing Carburetor Mounting Nuts
(Commercial Mower Base Shown).
5. If necessary, the carburetor, throttle linkage and
governor lever can be separated. Reattach the
bushings to the linkage following separation to
avoid losing them.
Remove Electric Starter Motor
1. Disconnect the leads from the starter.
2. Remove the two hex flange screws. See Figure
9-25.
Figure 9-25. Removing Electric Starter Motor.
3. Remove the starter assembly and lift bracket.
Some inertia drive starters use a separate starter
cover and spacers.
Figure 9-24. Removing Carburetor.
4. Remove the carburetor gasket.
