Section 11
Reassembly

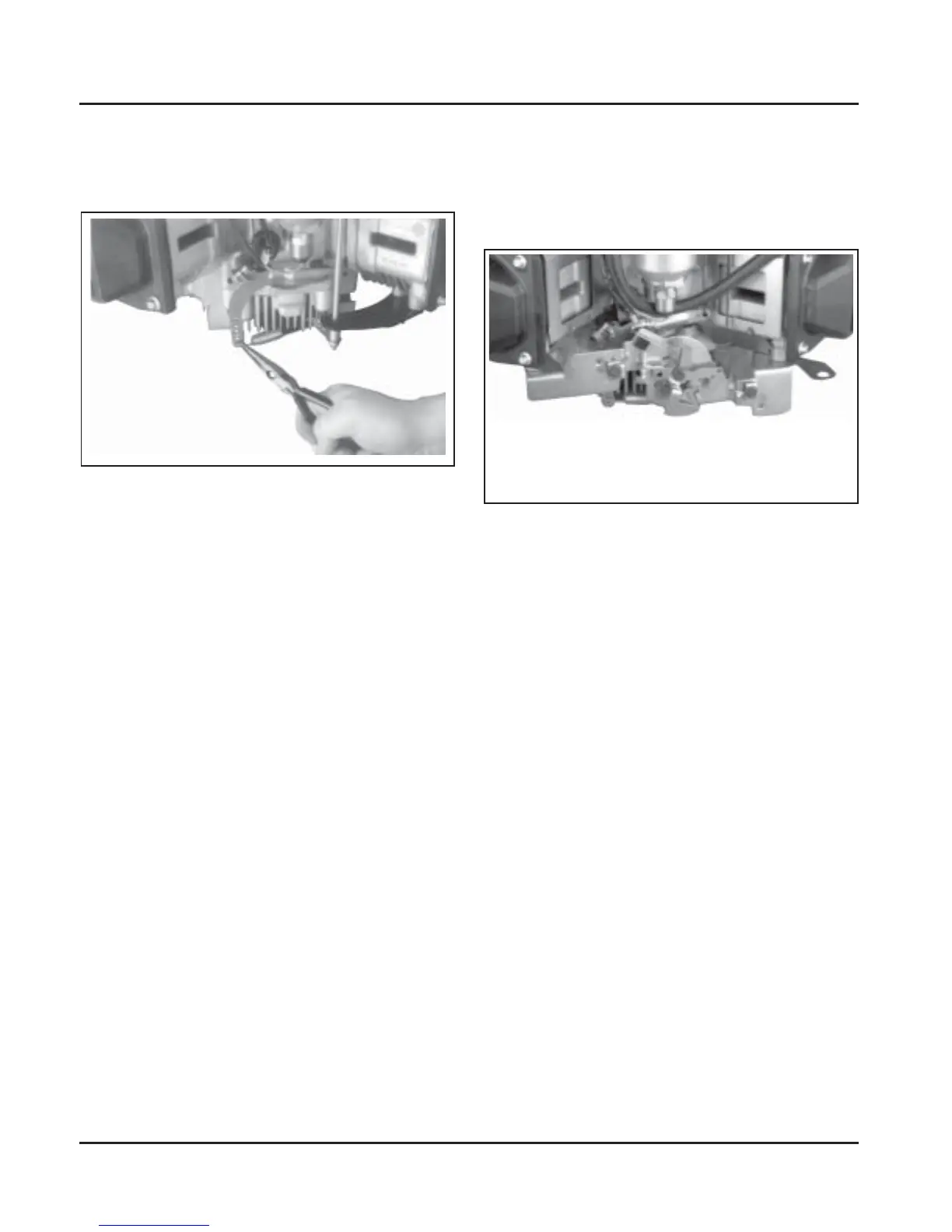

Figure 11-76. Connecting Governor Spring to
Governor Lever.
Install Throttle and Choke Controls
1. One-Barrel Carburetor Models: Connect the
choke linkage to the carburetor and choke
actuator lever.
10. Connect the Oil Sentry™ Indicator light wires.
Attach governor spring to governor lever. See
Figure 11-76 and appropriate charts on pages
11.23 through 11.25.
Figure 11-77. Standard Control Bracket.
2. One-Barrel Carburetor Models: Install the
standard throttle control bracket and the air
cleaner support bracket (if used) to the cylinder
heads using the four hex flange screws. Torque
the screws to 10.7 N·m (95 in. lb.) into new holes,
or 7.3 N·m (65 in. lb.) into used holes.
To Next Page
