Kohler Command CV17 - Air Cleaner System Components - Standard; Air Cleaner System Components - Commercial Mower Type

4.3
Section 4
Air Cleaner and Air Intake System
4
Wing Nut
Air Cleaner
Cover
(Plenum*)
Cover
Retaining
Knob
Air Cleaner
Cover (Std.)
Element Cover Nut
Element Cover
Element
Precleaner
Air
Cleaner
Base
Rubber
Seal
Stud
*Plenum air cleaner system does not use a precleaner.
Knob
Knob Seal
Air Cleaner Cover
Element
Cover Nut
Rubber Seal
Precleaner
Element Cover
Element
Spitback
Cup Gasket
Spitback Cup
Air Cleaner Base

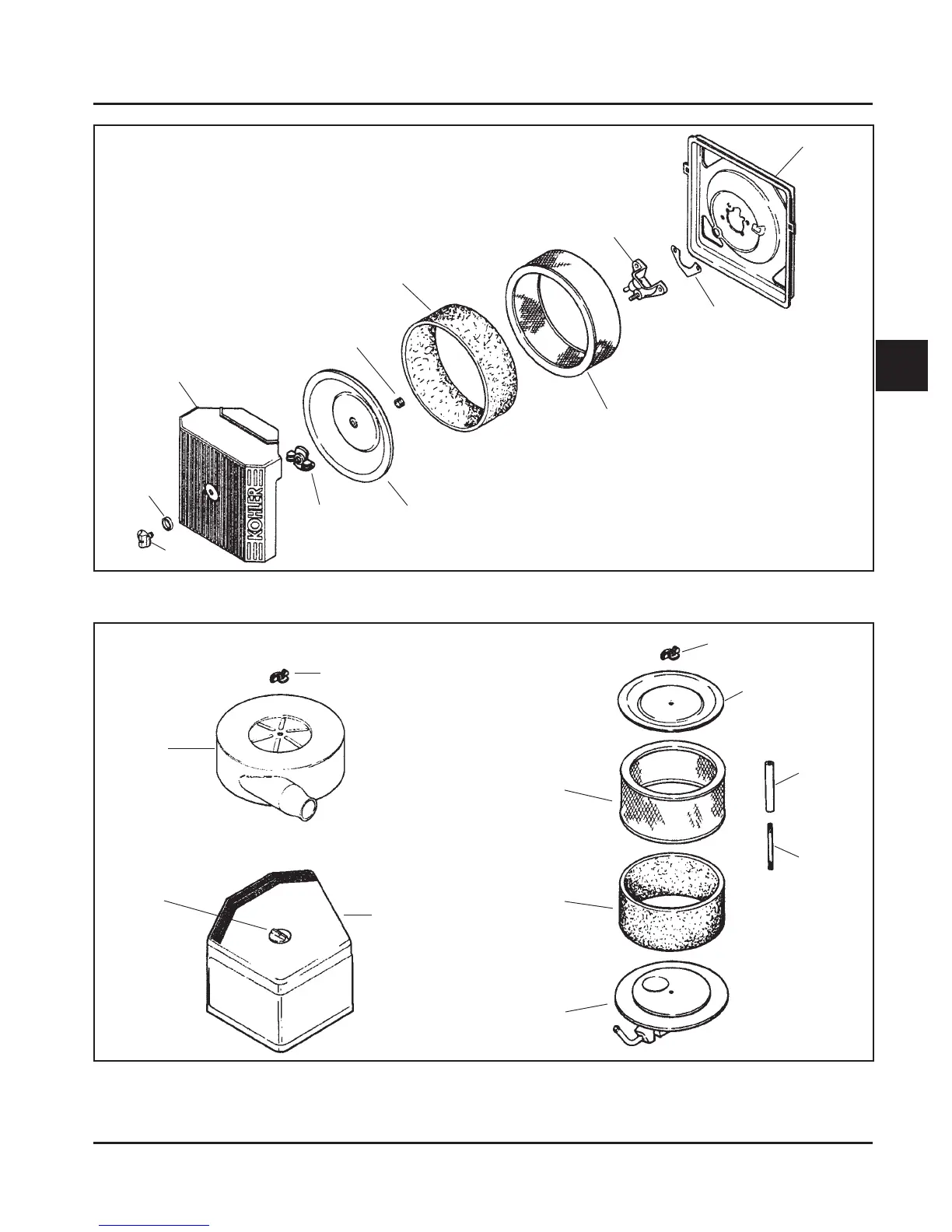

Figure 4-5. Air Cleaner System Components - Standard.
Figure 4-6. Air Cleaner System Components - Commercial Mower Type.
